Peerless PLA50-UNLP-GB Articulating Wall Arm for 37" to 80" Displays

Product ID 14487
HIGHLIGHTS

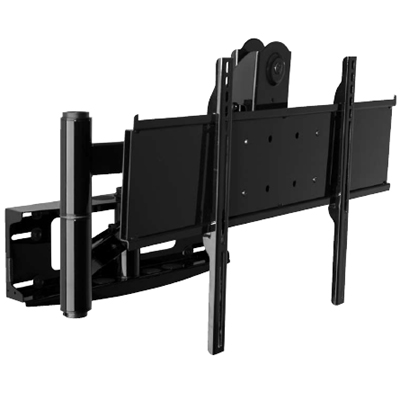

Peerless PLA50-UNLP-GB Articulating Wall Arm for 37" to 80" Displays
Peerless PLA50-UNLP-GB Articulating Wall Arm for 37" to 80" Displays

Highlights

  • Arm extends up to 30.52" (775mm) from wall

  • Includes mesh cord sheath and cable ties to neatly manage cables

  • Five horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement

  • Universal models adapt to displays with mounting hole patterns up to 730 x 433mm (28.75"W x 17.05"H)

  • +10/-5° of tilt

  • ±7° of roll for post installation display leveling

  • Three adjustable pivot points with up to 180° swivel for versatile display positioning

Description

Offer the best view in the room with ability to swing, tilt or articulate the most popular sizes of displays. Self-lubricating bushings enable the arms to smoothly extend, while adjustable tilt and pivot position the display to the optimal viewing angle. Peerless PLA50-UNLP-GB offers versatility for the most popular sizes of display in a wide range of installations in lobbies, hotel rooms, boardrooms, public displays or home theaters.

Helpful Hints: May also fit larger displays, please reference MountFinder for compatibility

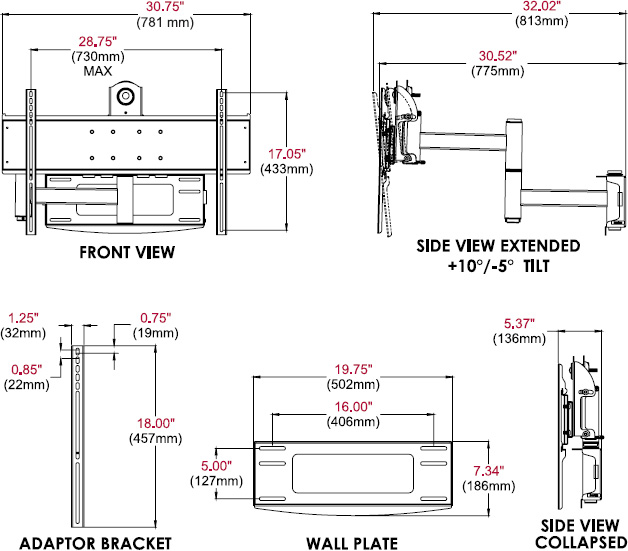

Technical Drawing

Technical drawing for
Peerless PLA50-UNLP-GB Universal Articulating Wall Arm for 37-80

Specifications

Color Black
Finish High Gloss
Minimum to Maximum Screen Size

37" to 80"

Weight Capacity 150 lbs (68.0kg)
Distance from Wall

5.37 - 30.52" (136 - 775mm)

Mounting Pattern

731 x 433mm (28.76 x 17.05")

Roll

+7 / -7 degree

Security Features Non-Security Hardware
Swivel Yaw +90 / -90 degree
Tilt +10 / -5 degree
Package Contents
  • Articulating arm
  • Wall plate
  • Mesh cord sheath
  • Cable ties
  • Universal adaptor plate
  • Mounting and display attachment hardware
Product Dimensions

30.75" x 19.10" x 5.37"-30.52" (781 x 486 x 136-775mm)

Product Weight 36.8 lbs (16.7kg)
Shipping Dimensions

31.5" x 17.1" x 9.1" (800 x 434 x 231mm)

Shipping Weight 43 lbs (19.5kg)
UPC Code 735029247074
Model PLA50-UNLP-GB
Manufacturer Peerless Mounts
Part Number PLA50-UNLP-GB
UPC 735029247074
Weight lb(s)
Color Black
Finish High Gloss
Monitor Size 37" to 80"
Weight Capacity 150 lbs (68kg)
Distance From Wall 5.37 - 30.52" (136 - 775mm)
Mounting Pattern 731 x 433mm (28.76 x 17.05")
Roll +7 / -7 degree
Swivel +90 / -90 degree
Tilt +10 / -5 degree
Dimensions 30.75" x 19.10" x 5.37"-30.52" (781 x 486 x 136-775mm)
Weight 36.8 lbs (16.7kg)
Shipping Dimensions 31.5" x 17.1" x 9.1" (800 x 434 x 231mm)
Shipping Weight 43 lbs (19.5kg)
Warranty Limited 5 year
Number of Monitors 1 Monitor
Mounting Options Wall
