Peerless SPK811 or SPK811W Universal Speaker Mount Wall or Ceiling
Description

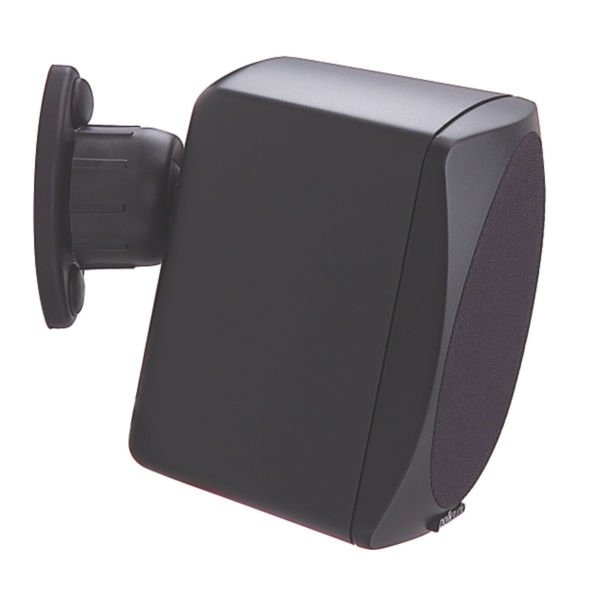

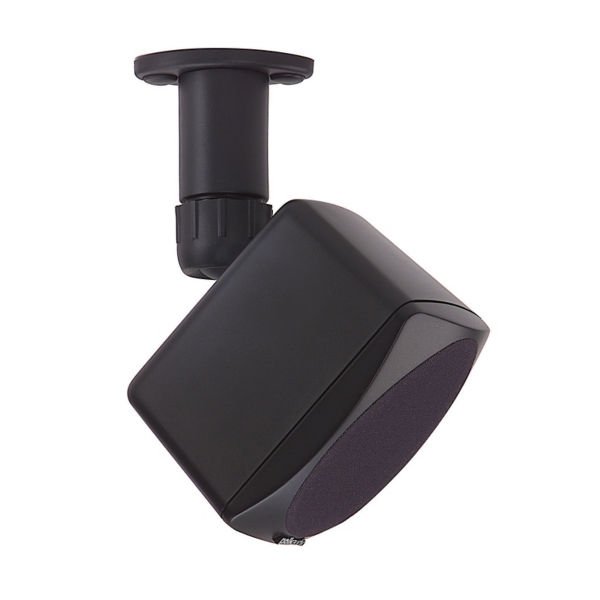

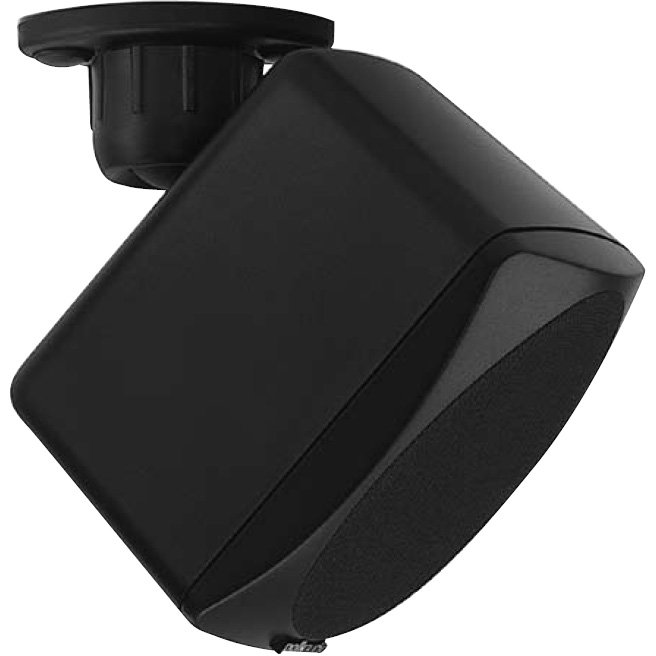

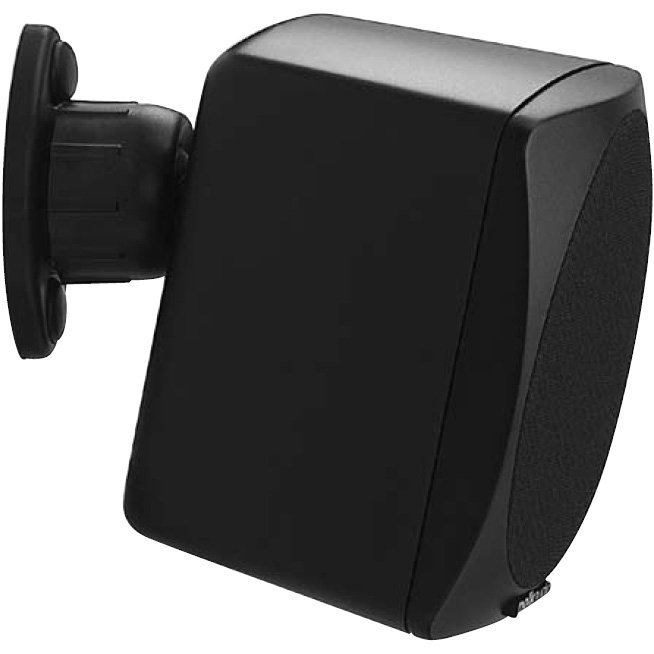

Peerless SPK-811 Universal speaker mount for most speaker brands weighing up to 20 lbs. Ball and socket design provides 37.5° up or down rotation to maximize speaker sound. Speakers can be flush mounted or use 3" extensions included for wall or ceiling installations.

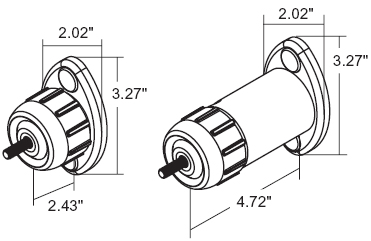

Technical Drawing

Specifications
Color | Black and White |
Finish | Powder Coat |
Weight Capacity | 20 lbs (9.1kg) |
Security Features | Non-Security Hardware |
Swivel Yaw | 360 degree |
Tilt | +37.5 / -37.5 degree |
Roll | +37.5 / -37.5 degree |
Package Contents |
|
Product Dimensions | 2.02" x 3.27" x 2.43" (5.1 x 8.3 x 6.2cm). With extension: 2.02" x 3.27" x 4.72" (5.1 x 8.3 x 11.99cm) |
Product Weight | 0.72 lbs (0.3kg) |
Shipping Dimensions |
9.125" x 6.75" x 2.5" (23.8 x 17.4 x 6.4cm) |
Shipping Weight | 0.96 lbs (0.4kg) |
UPC Code |
SPK 811: 735029214823 SPK 811W: 735029214830 |
Features
Internal speaker wire management
Speaker attachment hardware included
Includes fasteners for wood studs, metal studs, concrete and drywall
Includes hardware for mounting most commercially available speakers
Flush mounted or used with 3" extensions
Concealed mounting screws
Ball and socket design provides 37.5° up or down of rotation
Model | SPK-811, SPK-811W |
Manufacturer | Peerless Mounts |
Part Number | SPK-811, SPK-811W |
UPC | 735029214823 |
Weight | 2.00 lb(s) |
Mounting Options | Wall |
Mounting Options | Ceiling |
Color | Black, White |
Weight Capacity | 20 lbs (9.1kg) |
Finish | Powder Coat |
Roll | +37.5 / -37.5 degree |
Swivel | 360 degree |
Tilt | +37.5 / -37.5 degree |
Dimensions | 2.02" x 3.27" x 2.43" (5.1 x 8.3 x 6.2cm). With extension: 2.02" x 3.27" x 4.72" (5.1 x 8.3 x 11.99cm) |
Weight | 0.72 lbs (0.3kg) |
Shipping Dimensions | 9.125" x 6.75" x 2.5" (23.8 x 17.4 x 6.4cm) |
Shipping Weight | 0.96 lbs (0.4kg) |
Warranty | Limited 5 year |
