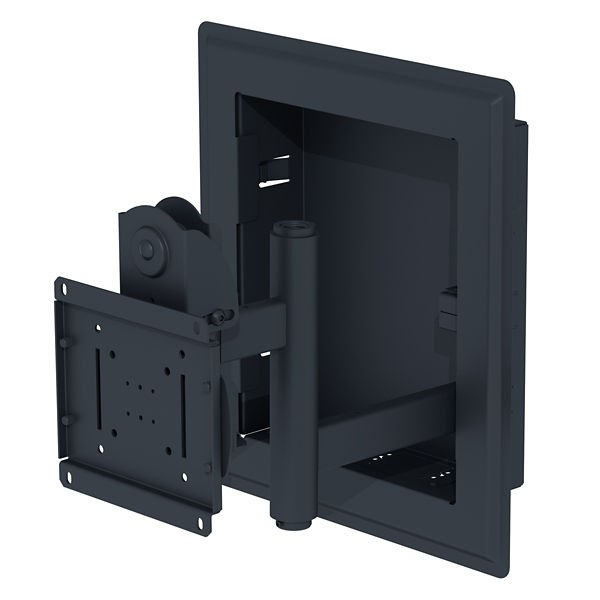

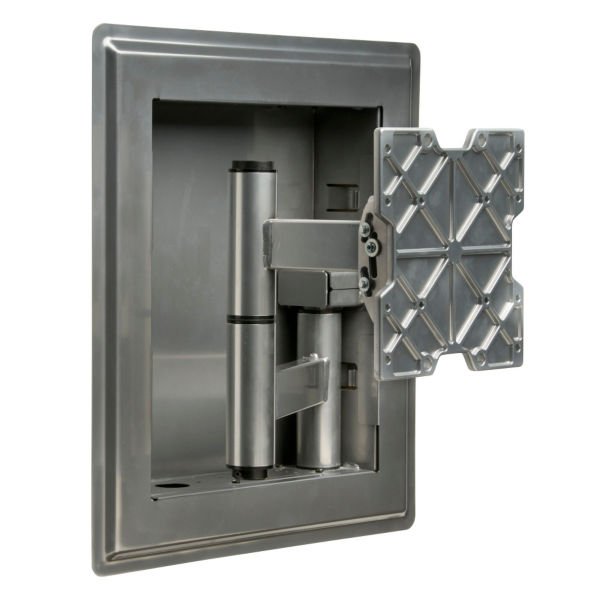

Peerless IM760P or IM760P-S In-Wall Mount for 32"-71" Displays
Description
Maximize your flat panel experience by installing it in the wall with Peerless-AV universal in-wall mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount’s stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the flat panel display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room.
Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
32" to 71" |
|
VESA Pattern |
200 x 100, 200 x 200 |
|
Weight Capacity |
200 lbs (91 kg) |
|
Color |
Black and Silver |
|
Finish |
High Gloss |
|
Distance from Wall |
0.42 x 18.09" (11 - 459mm) |
|
Mounting Pattern |
200 x 100, 200 x 200mm (7.87 x 3.94, 7.87 x 7.87") |
|
Roll |
+7 / -7 degree |
|
Security Features |
Non-Security Hardware |
|
Swivel Yaw |
+45 / -45 degree |
|
Tilt |
+10 / -5 degree |
|
Product Dimensions |
19.46" x 21.86" x 5.17"-21.67" (494 x 555 x 131-550mm) |
|
Product Weight |
34 lbs (15.4 kg) |
|
Shipping Dimensions |
24.9375" x 6.625" x 22.75" (633 x 168 x 578mm) |
|
Shipping Weight |
46.2 lbs (20.9 kg) |
|
Package Contents |
|
|
UPC Code |
735029255130 |
Features
Removable gang box and cable management access plates make installation easy
Decorative trim ring included for a clean installation
Stud-locating tabs adjust ¼" (6mm) left or right to accommodate stud spacing
Can be inverted to position display to the right or left
Installs between 16" (406mm) wood stud centers
IM760P models include adaptor plate to fit displays with VESA 100, 200 x 100 and 200 x 200mm mounting hole patterns or can be used with dedicated adaptor plates
IM760PU models include universal adaptor plate to fit displays with mounting hole patterns up to 730 x 433mm (28.75" x 17.05")
Product Options/Accessories
Peerless ACC925 Security Fasteners with VESA 200x200 to 800x400
$24.00
Peerless PLP-Vxxx PLP Dedicated Adaptor Plates
$129.00
$118.00
| Model | IM760P, IM760P-S |
| Manufacturer | Peerless Mounts |
| Part Number | IM760P, IM760P-S |
| UPC | 735029255130 |
| Weight | 40.00 lb(s) |
| Monitor Size | 32"-71" |
| Mounting Pattern | 200 x 100, 200 x 200mm (7.87 x 3.94, 7.87 x 7.87") |
| Weight Capacity | 200 lbs (91 kg) |
| Distance From Wall | 0.42 x 18.09" (11 - 459mm) |
| Roll | +7 / -7 degree |
| Swivel | +45 / -45 degree |
| Tilt | +10 / -5 degree |
| Dimensions | 19.46" x 21.86" x 5.17"-21.67" (494 x 555 x 131-550mm) |
| Weight | 34 lbs (15.4 kg) |
| Shipping Dimensions | 24.9375" x 6.625" x 22.75" (633 x 168 x 578mm) |
| Shipping Weight | 46.2 lbs (20.9 kg) |
| Warranty | Limited 5 year |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
| Color | Black and Silver |
