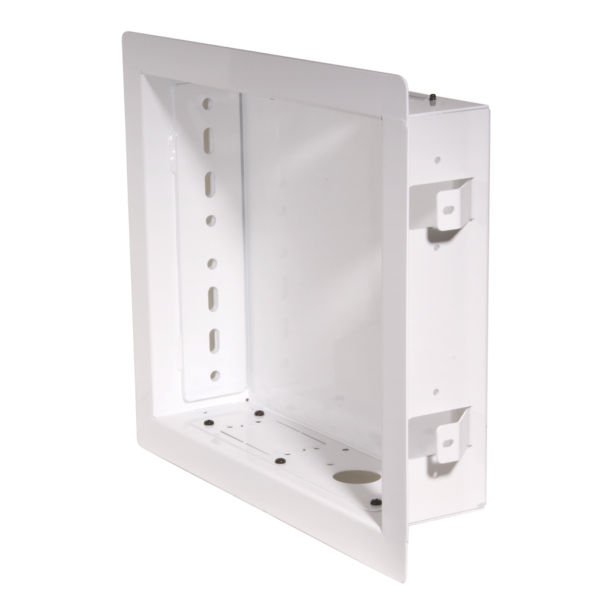

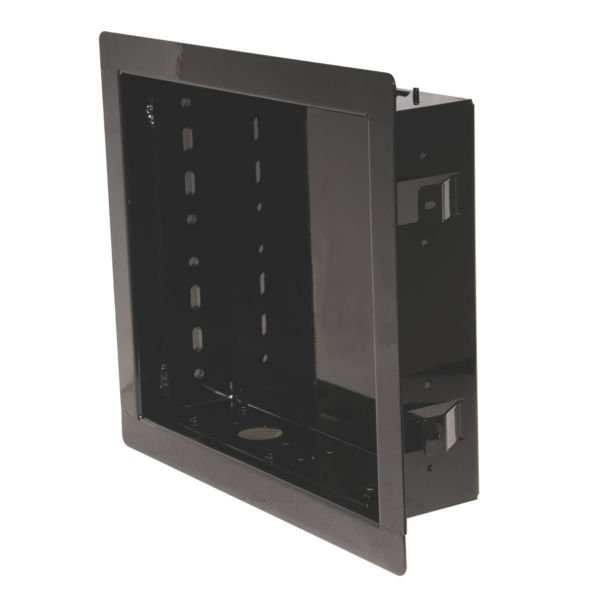

Peerless IB40 In-Wall Box for up to 40" Flat Panel Displays
Description
Designed to accommodate Peerless-AV’s small and medium pivot and articulating wall mounts, peerless IB40 In-Wall Box allows the display to be completely flush with the wall surface by recessing the mount and power cables into the wall. This In-Wall Box incorporated removable outlet receptacles and cable access plates inside the recessed area, making power and A/V connections a breeze. Enhancing ease of installation, flexible stud locating tabs adjust ¼-inch to accommodate stud placement. Featuring various height adjustment points for the mount ensures that this In-Wall Box delivers desired display positioning with ease.
Technical Drawing

Specifications
Color | Black, Silver and White |
Security Features | Non-Security Hardware |
Minimum to Maximum Screen Size | Up to 40" |
Distance from Wall | 0.08" (2mm) |
Finish | High Gloss |
Dimensions | 16.25" x 14.5" x 3.77" (413 x 368 x 96mm) |
Weight | 10.4 lbs (4.7kg) |
Shipping Dimensions | 21" x 4.25" x 22.4" (533 x 108 x 569mm) |
Shipping Weight | 14.23 lbs (6.45kg) |
Weight Capacity | 80 lbs (36kg) |
Warranty | Limited 5 year |
UPC Code |
IB40: 735029255192 IB40-S: 735029255208 IB40-W: 735029255215 |
Features
Can be inverted to position display to the right or the left
Height adjustment points in box to set display in desired position
Convenient installation of power and cables with removable outlet receptacle and cable access plates
Compatible with PA730, PA740, PP730 & PP740, sold separately
Stud-locating tabs adjust ¼" (6mm) left to right to accommodate stud spacing
Installs between 16" (406mm) wood stud centers
Product Options/Accessories
Model | IB40, IB40-S, IB40-W |
Manufacturer | Peerless Mounts |
Part Number | IB40, IB40-S, IB40-W |
UPC | 735029255192 |
Color | Black, Silver and White |
Monitor Size | Up to 40" |
Weight Capacity | 80 lbs (36kg) |
Finish | High Gloss |
Dimensions | 16.25" x 14.5" x 3.77" (413 x 368 x 96mm) |
Weight | 10.4 lbs (4.7kg) |
Shipping Dimensions | 21" x 4.25" x 22.4" (533 x 108 x 569mm) |
Shipping Weight | 14.23 lbs (6.45kg) |
Distance From Wall | 0.08" (2mm) |
Warranty | Limited 5 year |
