Peerless PT640 Paramount Universal Tilt Wall Mount
Description
The Paramount series wall mounts provide versatile and multi-functional
features. With peerless PT640, a low-profile design positions the display just
2.63" (67mm) from the wall. The Hook-and-Hang system offers easy, one-person
installation of the display. The Easy-Glide adaptors hook onto the wall plate
for a quick, simple, and secure installation. Achieve perfect positioning of the
display with the side-to-side adjustment after installation. A ratcheting handle
provides locking tilt capability for quick adjustments to the amount of tilt,
reducing glare and optimizing the viewing angle. Lock the tilt angle at
installation to prevent tampering or moving with the IncreLok tilt technology.
Helpful Hints: The PT640’s adjustable viewing feature provides 15° of forward
tilt and 5° backward tilt, creating the most optimal viewing angle.

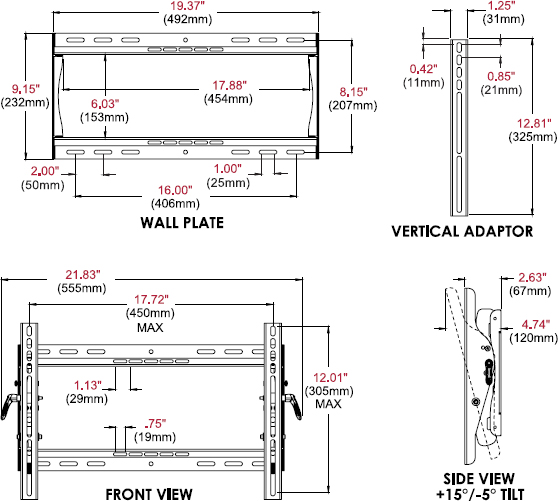

Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
32" to 40" |
|
VESA Pattern |
400 x 300 |
|
Weight Capacity |
100 lbs (45kg) |
|
Color |
Black |
|
Finish |
High Gloss |
|
Distance from Wall |
2.57 - 4.80" (65 - 122mm) |
|
Increlock Increments |
-5, 0, 5, 10, 15 degree |
|
Mounting Pattern |
446 x 329mm (17.54 x 12.94") |
|
Security Features |
Non-Security Hardware |
|
Tilt |
+15 / -5 degree |
|
Product Dimensions |
21.83" x 12.81" x 2.63"-4.74" (555 x 325 x 67-120mm) |
|
Product Weight |
6.50 lbs (2.95kg) |
|
Shipping Dimensions |
21.69" x 2.95" x 10.74" (551 x 75 x 273mm) |
|
Shipping Weight |
8.15 lbs (3.70kg) |
|
Package Contents |
|
|
UPC Code |
735029254874 |
Features
Mounts to wood studs, concrete cinder block or metal studs (metal stud accessory required)
Versatility. Please check display dimensions against the wall plate when used in portrait mode
Landscape to portrait mounting options increases installation
Horizontal display adjustment up to 6.00" (152mm) for centering display on wall
Included IncreLok feature offers fixed tilt lock in 5° increments when used
Easy-Grip ratcheting handle locks tilt angle into place
Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
Universal mount fits displays with mounting patterns up to 450 x 305mm (17.72" W x 12.01" H)
Includes all necessary wall and display attachment hardware
Design is UL listed and tested to four times stated load capacity
| Model | PT640 |
| Manufacturer | Peerless Mounts |
| Part Number | PT640 |
| UPC | 735029254874 |
| Weight | lb(s) |
| Monitor Size | 32" to 40" |
| VESA | 400 x 300 |
| Weight Capacity | 100 lbs (45kg) |
| Distance From Wall | 2.57 - 4.80" (65 - 122mm) |
| Mounting Pattern | 446 x 329mm (17.54 x 12.94") |
| Tilt | +15 / -5 degree |
| Dimensions | 21.83" x 12.81" x 2.63"-4.74" (555 x 325 x 67-120mm) |
| Weight | 6.50 lbs (2.95kg) |
| Shipping Dimensions | 21.69" x 2.95" x 10.74" (551 x 75 x 273mm) |
| Shipping Weight | 8.15 lbs (3.70kg) |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
| Warranty | Limited 5 year |
| Color | Black |
