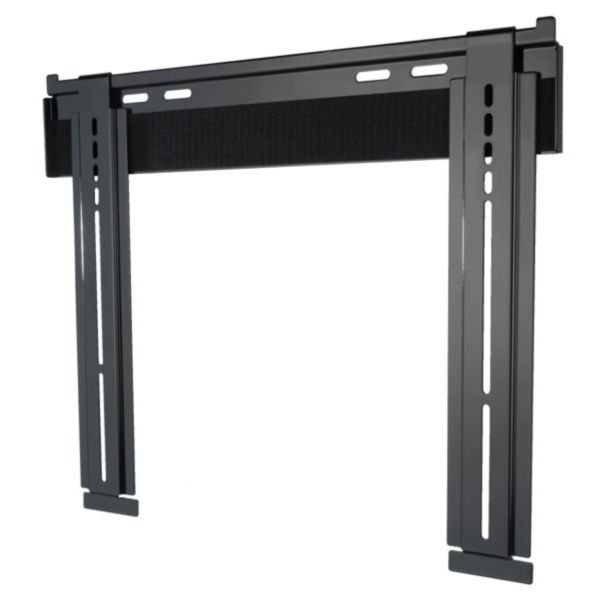

Peerless SUF640P is one of the world’s slimmest mounts at only 0.33" (8mm) thin, this near-invisible mount is the beauty that supports the modern style of the latest ultra-thin displays. Its all-steel, clean-line, high-gloss modeling features universal compatibility with virtually any ultra-thin display innovation. This unmatched solution delivers space-saving, ultra-sleek looks and brings the display ultra-close to the wall.

Helpful Hints: Designed to be used with displays that are less than 3" (76mm) deep.

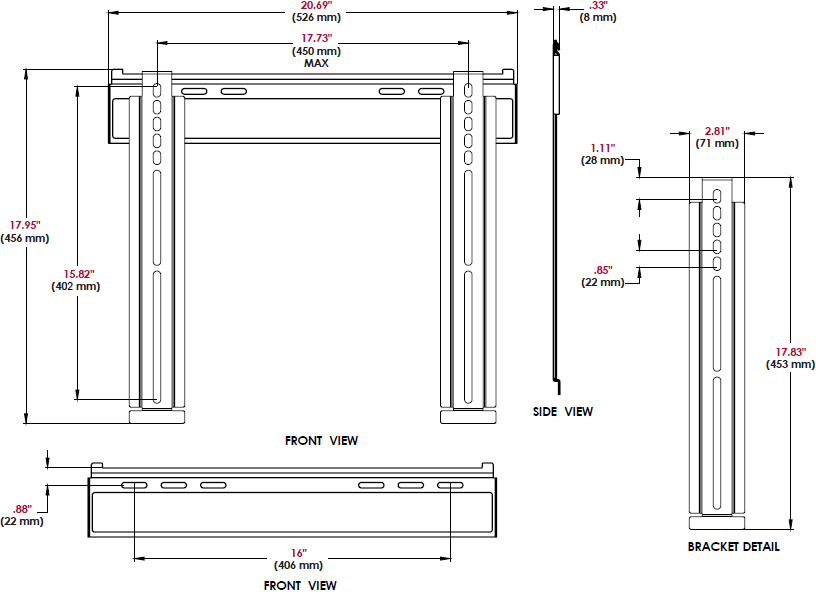

Technical Drawing

Technical drawing for Peerless SUF640P Universal Ultra Slim Flat Wall Mount



Minimum to Maximum Screen Size

37" to 50"

VESA Pattern

400 X 400

Weight Capacity

150 lbs (68.0 kg)




High Gloss

Distance from Wall

0.33" (8mm)

Mounting Pattern

450 x 402mm (17.73 x 15.82")

Security Features

Non-Security Hardware

Product Dimensions

20.69" x 17.95" x .33" (526 x 456 x 8mm)

Product Weight

4.1 lbs (1.9 kg)

Shipping Dimensions

22.375" x 2.375" x 5.25" (568 x 60 x 133mm)

Shipping Weight

4.7 lbs (2.2 kg)

Package Contents

  • Wall plate

  • Universal display adaptors

  • Mounting and display attachment hardware

UPC Code




  • Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)

  • Comes with fastener pack with all necessary display attachment hardware

  • Horizontal adjustment of up to 6" (152mm) (depending on display model) for perfect display placement

  • Industrial-strength Velcro latching system secures display adaptors to wall plate in a single step, making installation fast and secure

  • Universal brackets easily hook onto wall plate for an easy installation

  • Universal mount compatible with ultra-thin displays with mounting patterns up to 450 x 402mm (17.73" W x 15.82" H)

  • Ultra-thin design holds display only 0.33" (8mm) from the wall for a near-invisible application



Model SUF640P
Manufacturer Peerless Mounts
Part Number SUF640P
UPC 735029258353
Weight 5.00 lb(s)
Color Black
Monitor Size 37"-50"
VESA 400 X 400
Weight Capacity 150 lbs (68.0 kg)
Distance From Wall 0.33" (8 mm)
Mounting Pattern 450 x 402mm (17.73 x 15.82")
Dimensions 20.69" x 17.95" x 0.33" (526 x 456 x 8mm)
Weight 4.1 lbs (1.9 kg)
Shipping Dimensions 22.375" x 2.375" x 5.25" (568 x 60 x 133mm)
Shipping Weight 4.7 lbs (2.2 kg)
Mounting Options Wall
Number of Monitors 1 Monitor
Warranty Limited 5 year
