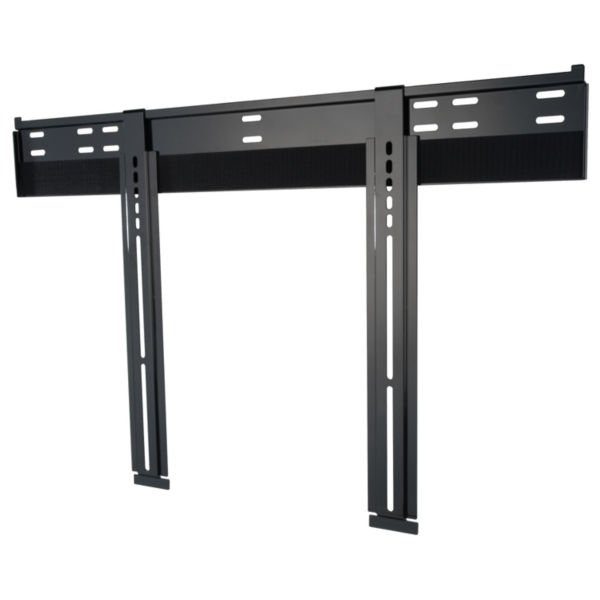

Peerless SUF660P Universal Ultra Slim Flat Wall Mount for 40" to 80" Displays

Product ID 15634


  • Lateral shift adjustment of up to 8" (203mm) (depending on display model) for perfect display placement

  • Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)

  • Industrial-strength Velcro latching system secures display adaptors to wall plate in a single step, making installation fast and secure

  • Universal brackets easily hook onto wall plate for an easy installation

  • Universal mount compatible with ultra-thin displays with mounting patterns up to 825 x 449mm (32.48" W x 17.67" H)

  • Ultra-thin design holds display only 0.33" (8mm) from the wall for a near invisible application

  • Comes with fastener pack with all necessary display attachment hardware


Peerless SUF660P is one of the world’s slimmest mounts at only 0.33" (8mm) thin, this near-invisible mount is the beauty that supports the modern style of the latest ultra-thin displays. Its all-steel, clean-line, high-gloss modeling features universal compatibility with virtually any ultra-thin display innovation. This unmatched solution delivers space-saving, ultra-sleek looks and brings the display ultra-close to the wall.

Helpful Hints: Designed to be used with displays that are less than 3" (76mm) deep.

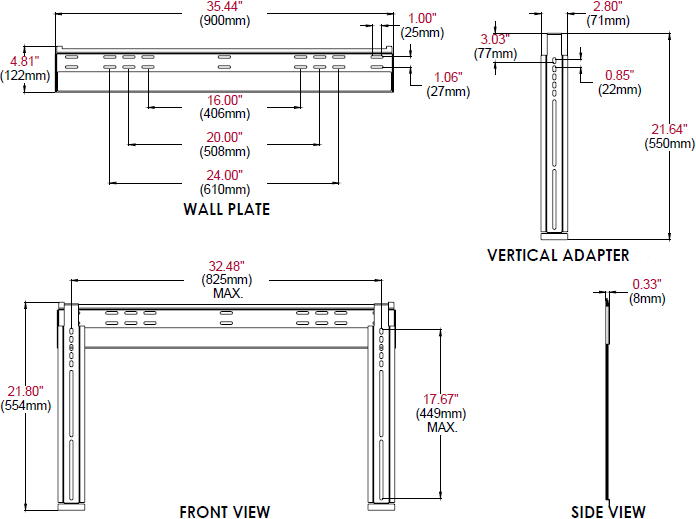

Technical Drawing

Technical drawing for Peerless SUF660P Universal Ultra Slim Flat Wall Mount



Minimum to Maximum Screen Size

40" to 80"

VESA Pattern

800 X 400

Weight Capacity

150 lbs (68.0 kg)




High Gloss

Distance from Wall

0.33" (8mm)

Mounting Pattern

825 X 449mm (32.48 X 17.67")

Security Features

Non-Security Hardware

Product Dimensions

35.44" x 21.8" x .33" (900 x 554 x 8mm)

Product Weight

7.1 lbs (3.2 kg)

Shipping Dimensions

37.06" x 2.375"x 6.313" (941 x 60 x 160mm)

Shipping Weight

7.8 lbs (3.6 kg)

Package Contents

  • Wall plate

  • Universal display adaptors

  • Mounting and display attachment hardware

UPC Code





Model SUF660P
Manufacturer Peerless Mounts
Part Number SUF660P
UPC 735029258377
Weight lb(s)
Color Black
Monitor Size 40"-80"
VESA 800 X 400
Weight Capacity 150 lbs (68.0 kg)
Distance From Wall 0.33" (8mm)
Mounting Pattern 825 X 449mm (32.48 X 17.67")
Dimensions 35.44" x 21.8" x .33" (900 x 554 x 8mm)
Weight 7.1 lbs (3.2 kg)
Shipping Dimensions 37.06" x 2.375"x 6.313" (941 x 60 x 160mm)
Shipping Weight 7.8 lbs (3.6 kg)
Number of Monitors 1 Monitor
Mounting Options Wall
Warranty Limited 5 year

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
