$261.00

Chief CMA100 - 8" Ceiling Plate with Adjustable Column - 1.5" NPT

Product ID 15706
Chief CMA100 - 8" Ceiling Plate with Adjustable Column - 1.5" NPT
Silver
White
Chief CMA100 - 8" Ceiling Plate with Adjustable Column - 1.5" NPT
Silver
White

Related Products

Part Number

Description

CMA100

Black 8" (203 mm) Ceiling Plate with Adjustable 1.5" NPT Column

CMA100W

White 8" (203 mm) Ceiling Plate with Adjustable 1.5" NPT Column



Chief CMA-100 - 8" Ceiling  Plate with Adjustable NPT Column

Description

Chief CMA100 is a universal ceiling plate solution for most structural ceiling installations.

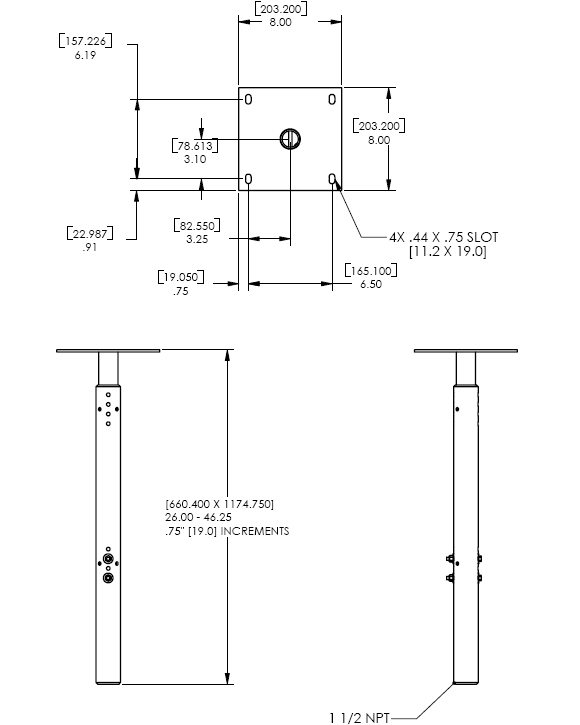

Technical Drawing

Technical Drawing for Chief CMA-100 Ceiling  Plate with Adjustable NPT Column



Specifications

Color

Black and White

Certifications

OSHPD Approved, UL Listed

Extension

24.0" - 46"

Overall Dimensions (H x W x D)

46.3" x 8.0" x 8.0" (1175 x 203 x 203 mm)

Shipping Weight

15.00 lbs

Weight Capacity

500 lbs (226.8 kg)



Features

  • Allows you to quickly and easily achieve the correct drop distance, 24.25-46" (61.6-116.8 cm)
  • Provides unmatched rigidity with four set screws (included)
  • Also available with 2" NPT Column (see CMA260)

Product Options/Accessories

Model CMA100, CMA100W
Manufacturer Chief Mounts
Part Number CMA100, CMA100W
UPC 841872002477
Weight lb(s)
Color Black and White
Extension 24.0" - 46"
Overall Dimensions 46.3" x 8.0" x 8.0" (1175 x 203 x 203 mm)
Shipping Weight 15.00 lbs
Weight Capacity 500 lbs (226.8 kg)
