$596.00

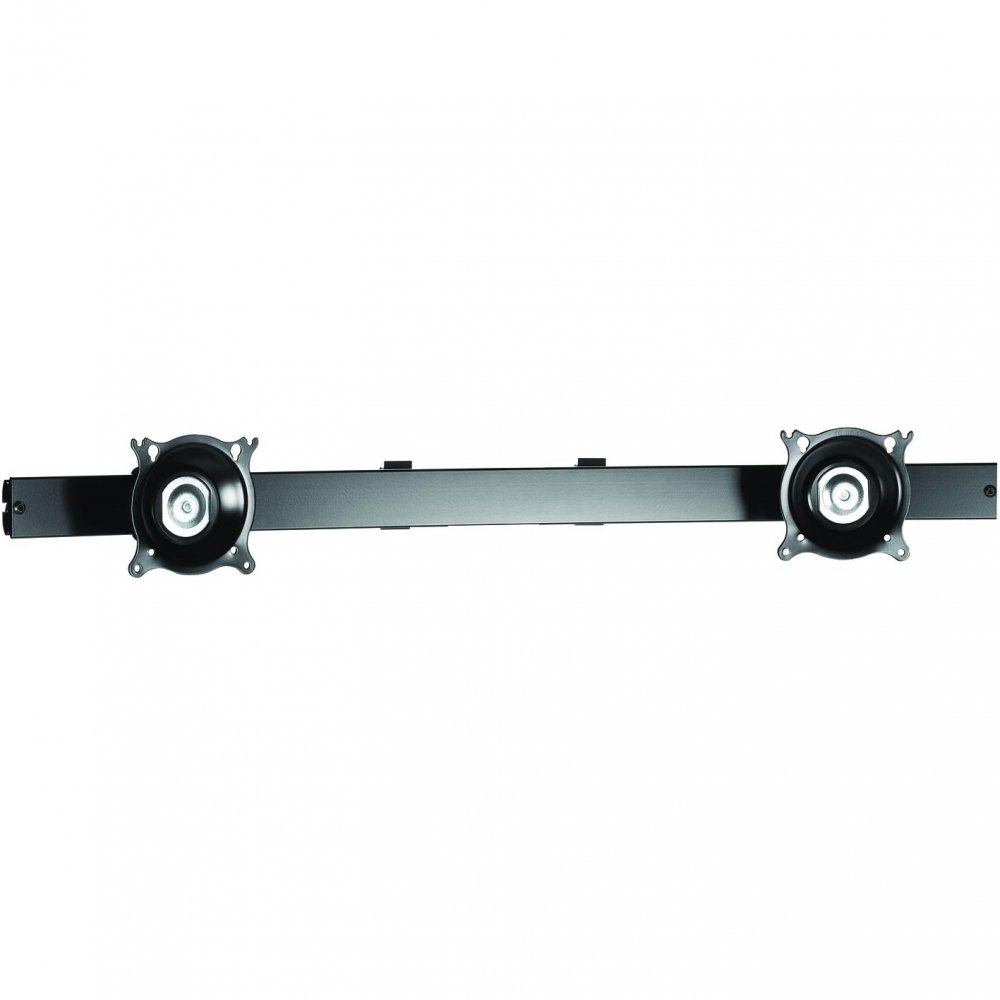

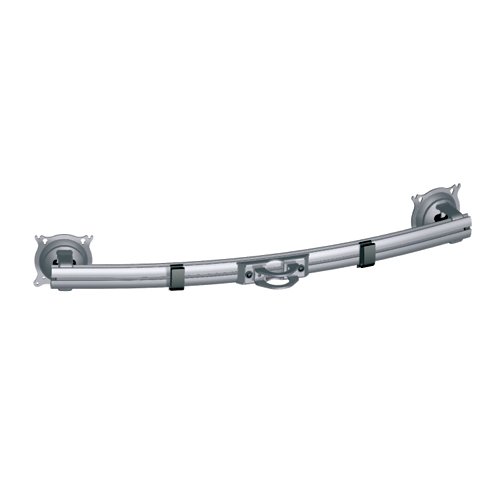

Chief KTA225B or KTA225S Widescreen Dual Monitor Pole Clamp

Product ID 15849
HIGHLIGHTS
Chief KTA225B or KTA225S Widescreen Dual Monitor Pole Clamp
Silver color
Chief KTA225B or KTA225S Widescreen Dual Monitor Pole Clamp
Silver color

Highlights

  • 34" Dual widescreen monitor array pole clamp
  • Maximum weight per monitor on array: 35 lbs
  • Monitor width range: 10 - 30"
  • Weight capacity for Grommet Mount: 120 lbs
  • Weight capacity for Free Standing Base: 80 lbs
  • Weight capacity for Clamp Mount: 40 lbs

Description

By using Chief KTA225, we can view two widescreen monitors side-by-side on a pole.

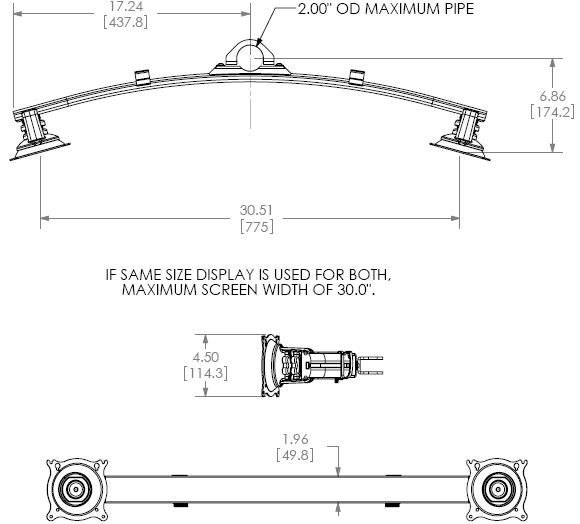

Technical Drawing

Technical Drawing for Chief KTA225B or KTA225S Widescreen Dual Monitor Pole Clamp

Specifications

Color Black and Silver
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Overall Dimensions (H x W x D) 4.5" x 34.5" x 7.4" (114 x 876 x 187mm)
Shipping Weight 10.70 lbs (4.85 kg)
Solution Type Universal
TV Width Range 10 - 30" (254 - 762mm)
Weight Capacity 35 lbs (15.9 kg)

Features

  • View multiple screens side-by-side

  • Easy pole mounting

  • Specify black or silver when ordering

Model KTA225B, KTA225S
Manufacturer Chief Mounts
Part Number KTA225B, KTA225S
UPC 841872091327
Weight lb(s)
Color Black and Silver
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 4.5" x 34.5" x 7.4" (114 x 876 x 187mm)
Shipping Weight 10.7 lbs (4.85 kg)
TV Width Range 10 - 30" (254 - 762mm)
Weight Capacity 35 lbs (15.9kg) per monitor

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
