Innovative 7500-Wing Dual Monitor Arm with 27" Reach

Product ID 15889

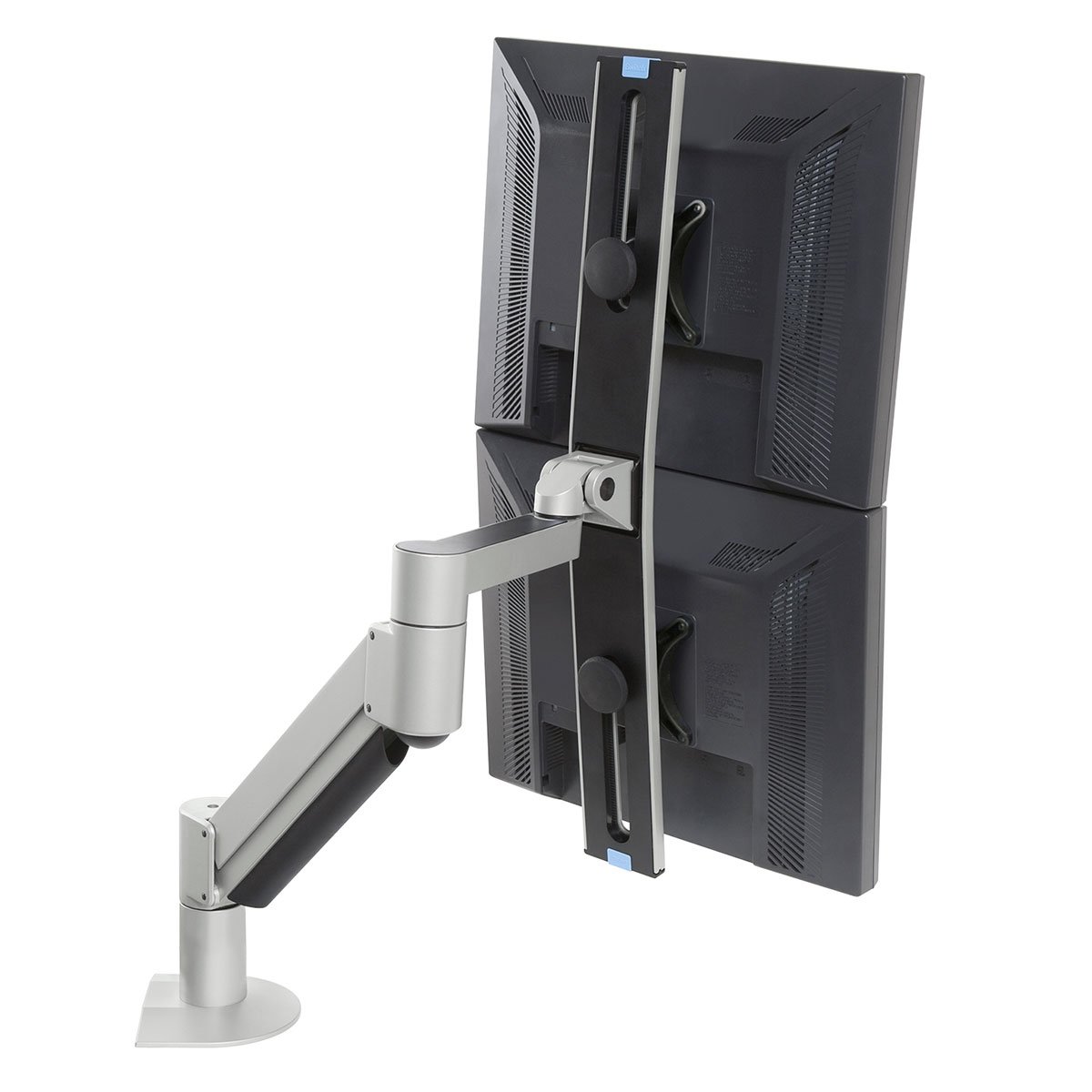

  • Side-by-side or stacking dual monitor arm
  • Vertical adjustment of 18" (+/- 9") and horizontal reach of 27"
  • Weight capacity: 1 - 18.7 lbs per monitor (1-11.4 lbs or 2.5-18.7 lbs depending on selected model)
  • Tilt mechanism: 200 degrees
  • Weight of bracket wing: 6 lbs

Dimensional Diagram for Innovative 9110 Pivoting LCD TV Wall Mount

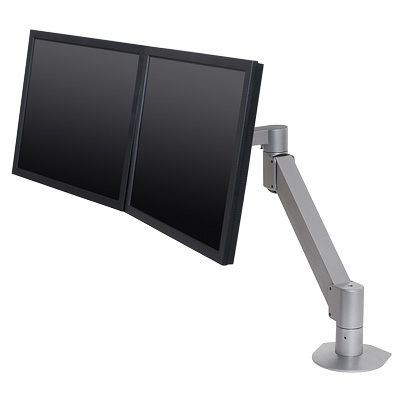

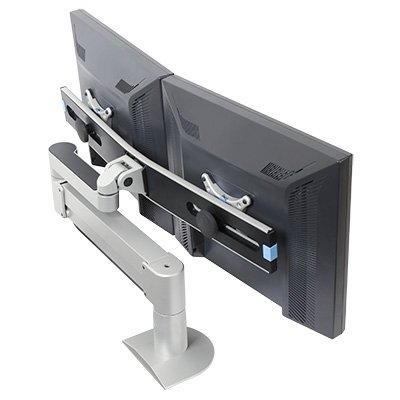

Innovative 7500-Wing Dual LCD Arm with Vertical/Horizontal Positioning (27 inch)


Innovative 7500-Wing Dual LCD Arm with Vertical or Horizontal Positioning

Arm collapses upon itself to save space



Features of innovative 7500-Wing-1000:

    1.  Monitors can be positioned horizontally (side by side) or vertically (stacked one over another).


    2.  Monitors can be independently rotated.


    3.  Accommodates monitors up to 22" widescreen (note - monitors can not exceed weight

         capacity of arm).


    4.  Monitor tilter mechanism can tilt over 200 degrees.

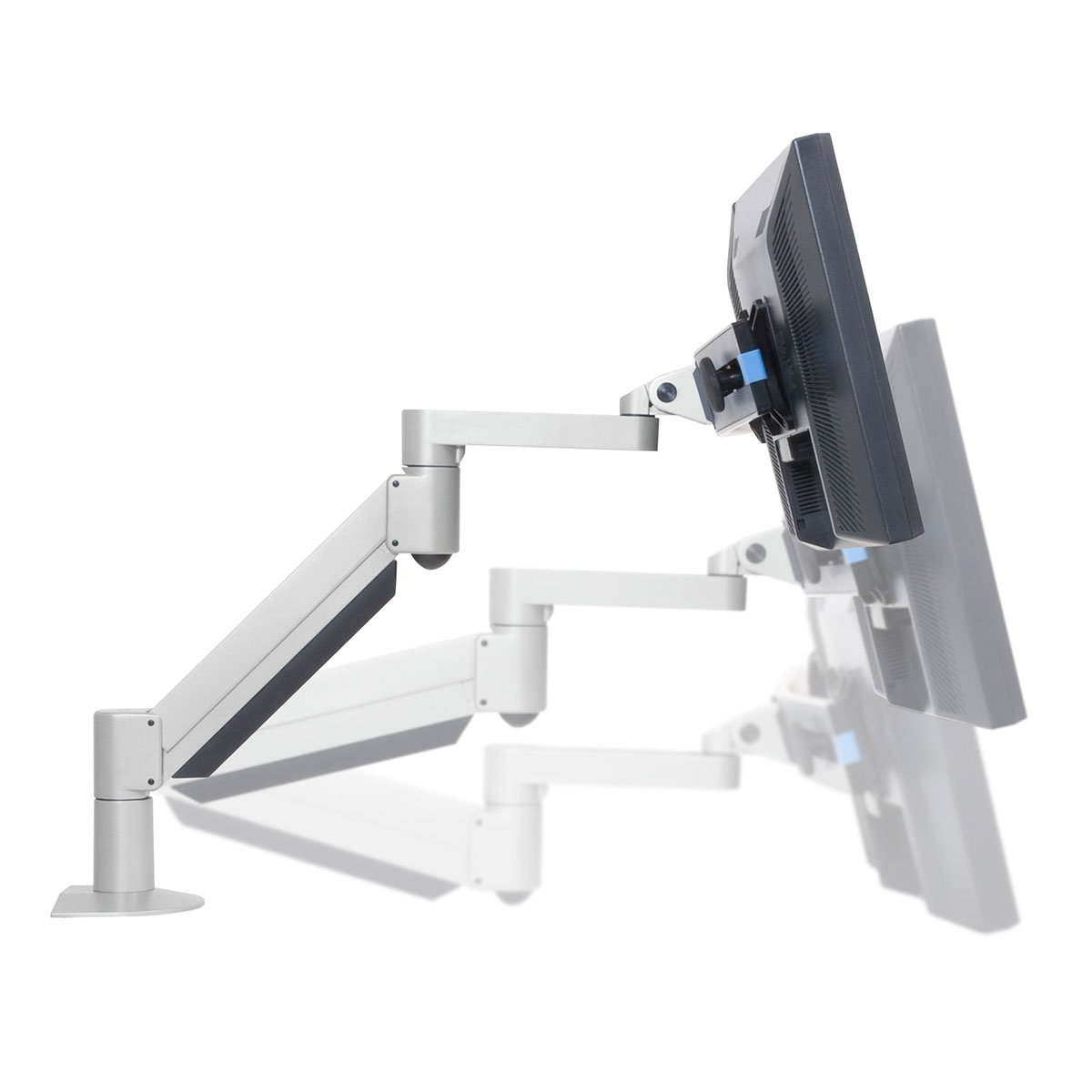

    5.  Gas arm "floats" monitors above desktop for instant height adjustment.


    6.  Quick-install/quick-release mechanism instantly and securely snaps monitors into position

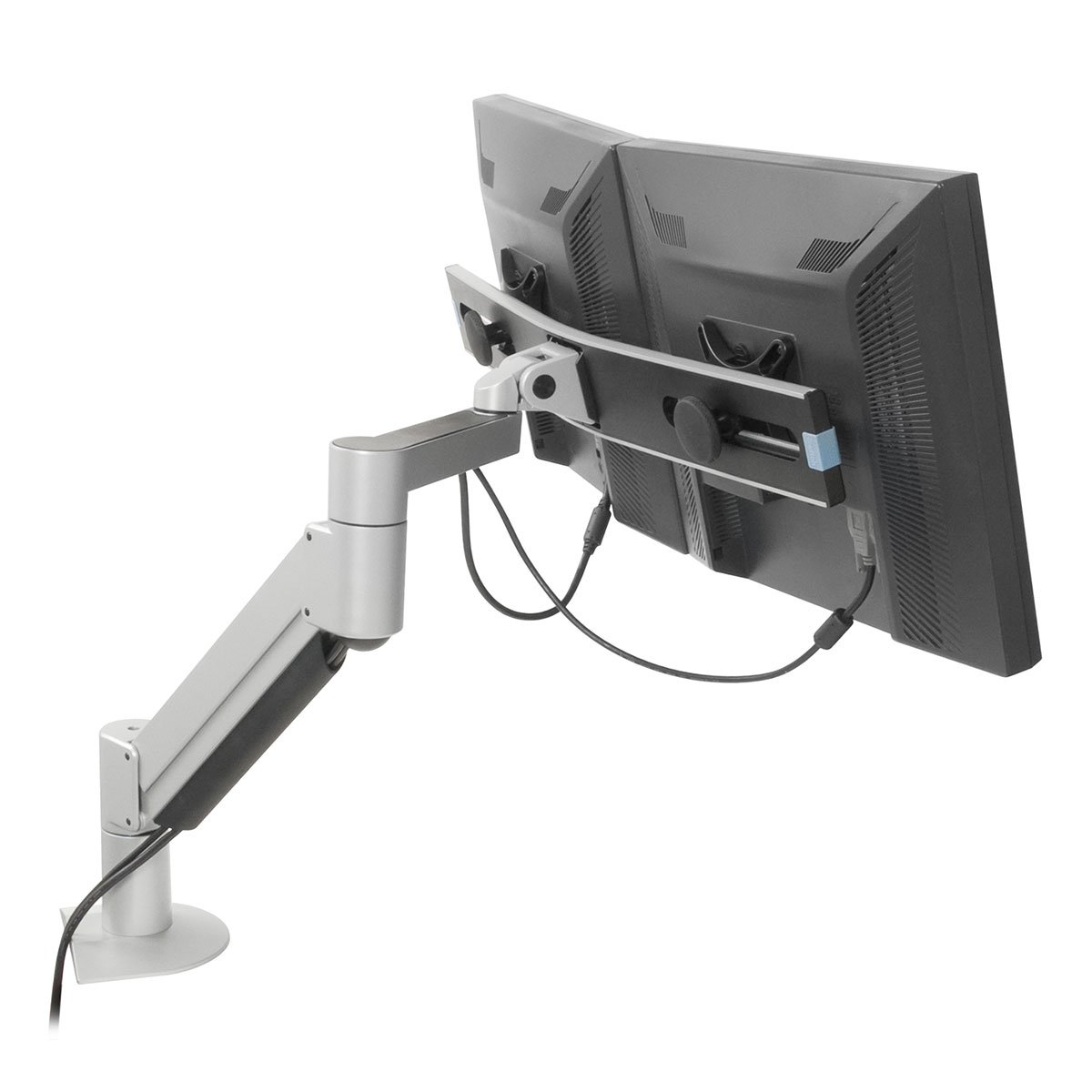

    7.  Includes cable management system - cables concealed in arm


   8.  Optional 2" and 6" extender tubes are available to raise monitor (see Extender Tubes under

         Available Accessories).



Technical Drawing for Innovative 7500-Wing-1500 Dual LCD Arms


Technical Drawing for Innovative 7500-Wing-1500 Dual LCD Arm



Description of Innovative 7500-Wing Dual Arm:

Do you use two monitors? With the 7500-Wing, both monitors will float above your desktop, allowing you to quickly and easily adjust monitor height and position. Monitors can be positioned either side-by-side or one above the other.

Our adjustable wing bracket allows you to adjust monitors, and also allows rotation. Includes our spring-assist monitor tilter for effortless monitor motion. The 7500-Wing incorporates cable management - thread the cables right through the arm, keeping your work space clean and organized. The bracket works with all VESA 75/100mm monitors.





Max Monitor Width:

22" per monitor

This measurement is based on a monitor depth of 3.5". The depth of the monitor will have a slight effect on the overall max dimension.

Note: Monitor width is measured from end to end of the monitor as shown at right

Vertical Range:

+/- 9" from horizontal

Horizontal Range:



360 degrees at three joints

Monitor Tilt:

200 degrees

Cable Management:

Cables are concealed in arm

Mounting Options:

FLEXmount - six different mounting options in one kit, Slatwall, Wall, Thru-Desk, Pole Clamp Mount

VESA Compatibilty:

75mm and 100mm VESA adapters included. Please call for non-

VESA options.



More Images:

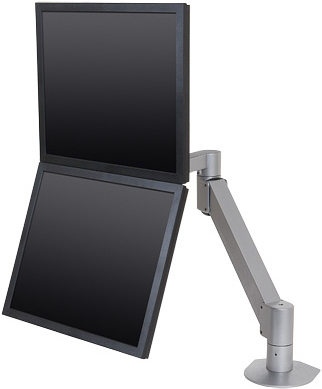

Innovative 7500-Wing LCD Dual Monitor Arm from landscape to portrait

Rotate monitors from landscape to portrait

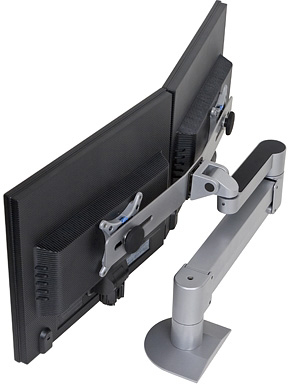

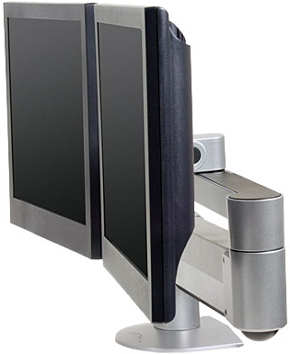

Innovative 7500-Wing-1500 Dual LCD Arm with Screens

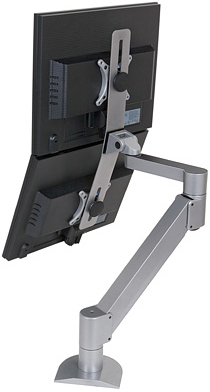

Innovative 7500-Wing-1500 Dual LCD Arm with Monitors

Innovative 7500-Wing-1500 Dual LCD Arm with Quick release




Model 7500-Wing-1000-NM or 7500-Wing-1500-NM
Manufacturer Innovative LCD Arms
Part Number 7500-Wing-1000-NM or 7500-Wing-1500-NM
UPC 895026000246
Weight lb(s)
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Mounting Options Pole
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors

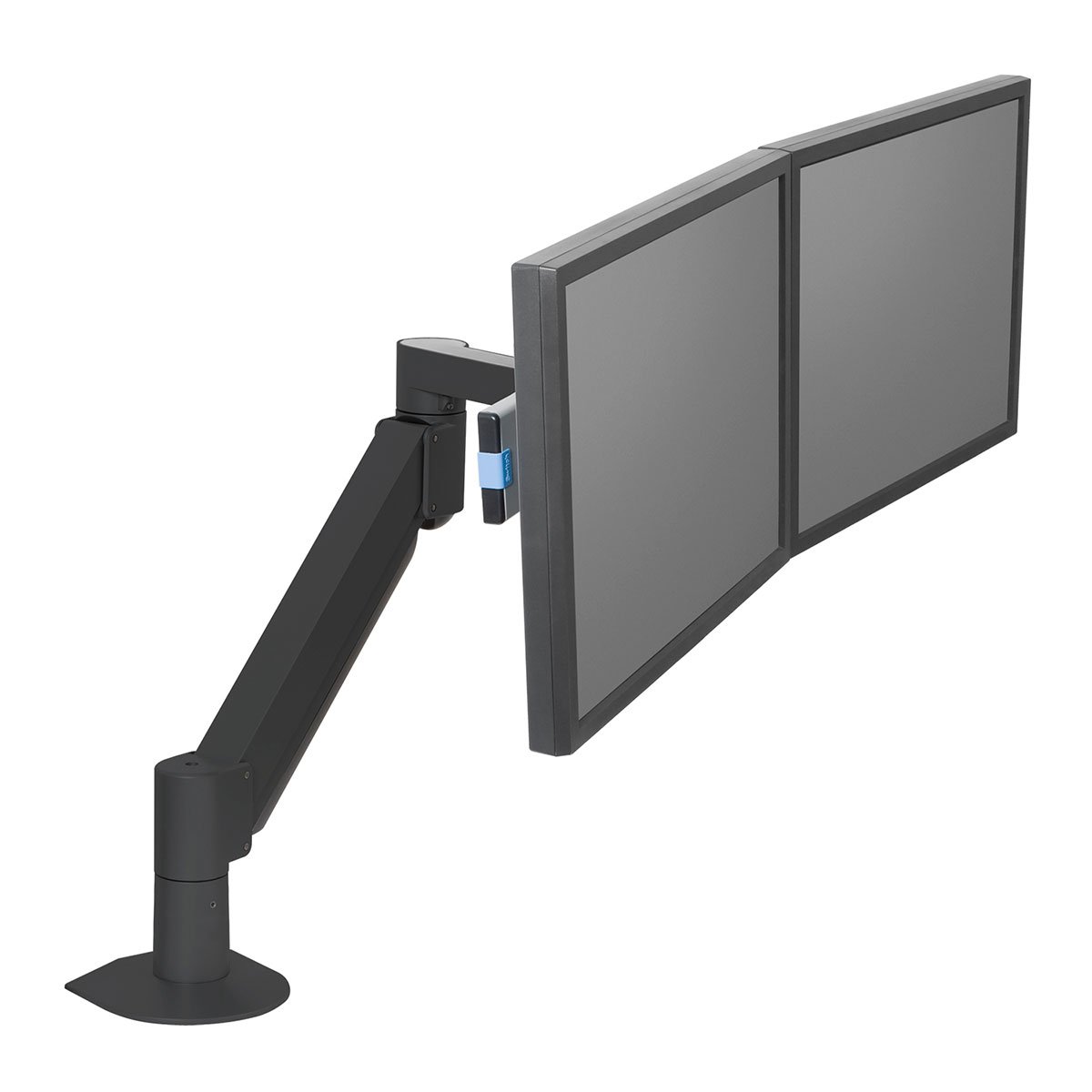

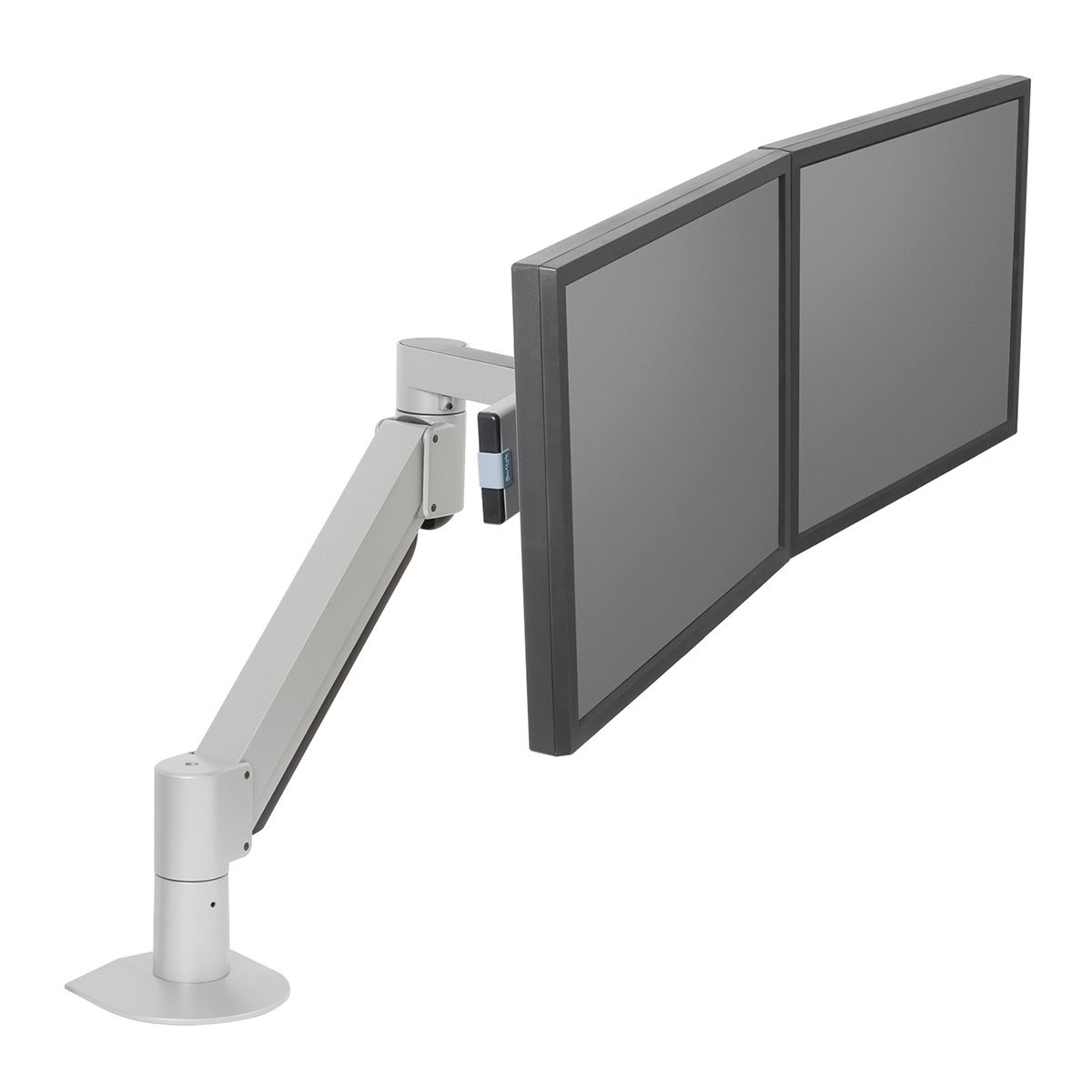

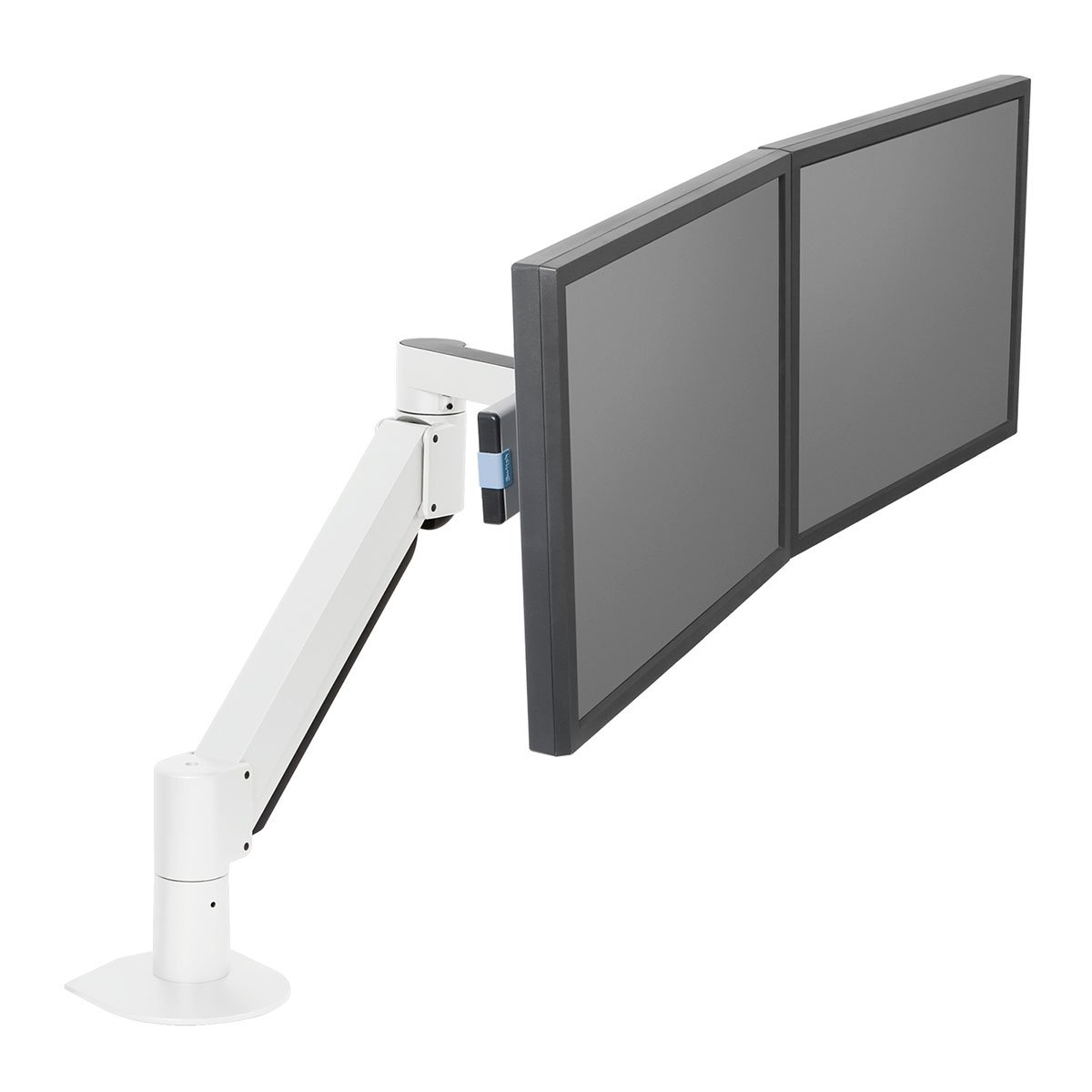

Color Flat White, Silver, Vista Black
Height Adjustment 18.0" (45.7 cm)
Extension 27" (68.6 cm)
Pivot Landscape/Portrait
Rotation At three joints 360 degree
Mounting Options Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
Mounting Pattern VESA 75mm and 100mm
Warranty 10 Years
Weight Capacity 7500-Wing-1000: 1 - 11.4 lbs per monitor. 7500-Wing-1500: 2.5 - 18.7 lbs per monitor
Maximum Monitor Size 22"
Monitor Placement Side-by-Side
