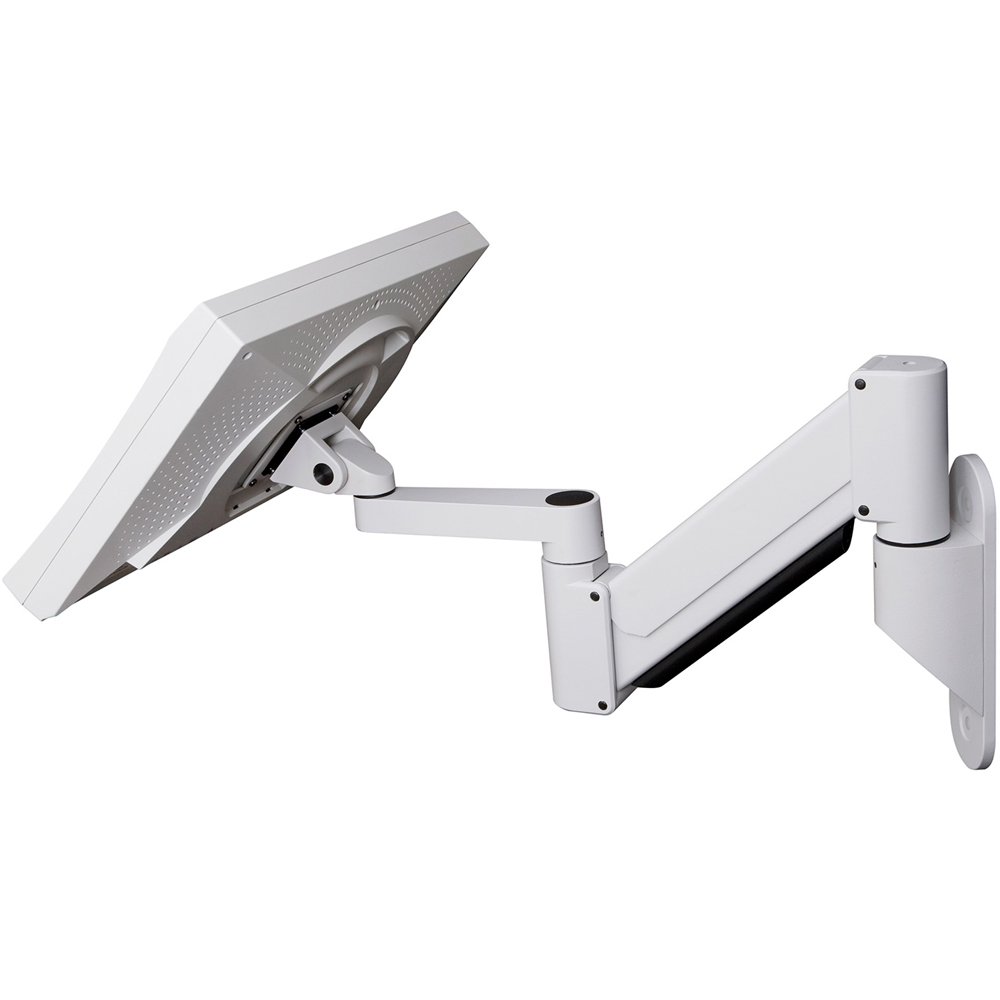

Innovative 9105 Heavy Duty Monitor Arm

Product ID 15908

Dimensional Diagram for Innovative 9110 Pivoting LCD TV Wall Mount

Related Products:

Part Number



Vertical: 15.5", Horizontal range: 24", Weight range: 7 - 26 lbs, No Mount


Vertical: 15.5", Horizontal range: 24", Weight range: 13.2 - 32.6 lbs, No Mount


Vertical: 15.5", Horizontal range: 24", Weight range: 21.8 - 37.7 lbs, No Mount


Vertical: 15.5", Horizontal range: 24", Weight range: 35.5 - 54 lbs, No Mount



Innovative 9105-FM Heavy Duty (54 lbs) Desk Mount LCD Arm - 24 inch Reach




Innovative 9105-500 Heavy Duty (54 lbs) Desk Mount LCD Arm - 24 inch Reach


Innovative 9105-FM Heavy Duty Desk Mount LCD Arm with 24 inch Reach

24" of horizontal range



Features of innovative 9105-800:

  1.  Heavy-duty steel construction. Extremely durable.


  2.  Monitors are rendered weightless by the arm


   3.  Rotates 360 degrees at three joints


4.  Monitor tilter mechanism can tilt over 200 degrees


  5.  Integrated cable management system keeps your work surface free of annoying cable clutter


   6.  Gas cylinder "floats" monitor above desk - instantly raise and lower monitor


  7.  Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.


  8.  VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-

         VESA options

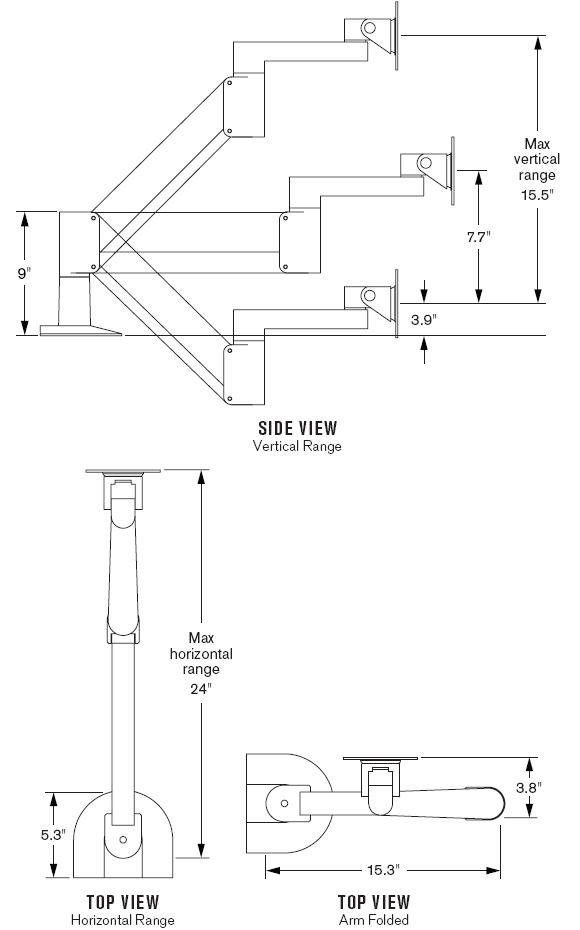

Technical Drawing for Innovative 9105-1000 Heavy Duty Desk Mount LCD Arm


Technical Drawing for Innovative 9105-FM Heavy Duty Desk Mount LCD Arm



Description of Innovative 9105-1500 Desk Mount:

For an exceptionally strong and durable monitor mount, choose the 9105-FM Heavy Duty LCD Arm. This steel arm can effortlessly support monitors up to 54 pounds. Includes our spring-assist monitor tilter for effortless monitor motion.

9105 is ideal for large LCD's as well as data-entry applications, where it will support both monitor and keyboard tray.




Screen Size:

Vertical Range:

Up to 32"


Horizontal Range:



360 degrees at three joints

Monitor Tilt:

200 degrees

Monitor Pivot:

Landscape to portrait

Monitor Compatibility:

VESA 75mm and 100mm

Cable Management:

Cables are clipped beneath arm

Mounting Options:

FLEXmount, Wall, Pole, Thru-Desk



More Images:

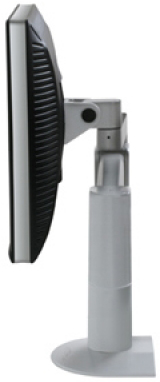

Folded image for Innovative 9105-FM Heavy Duty Desk Mount LCD Arm

Folds to save maximum space

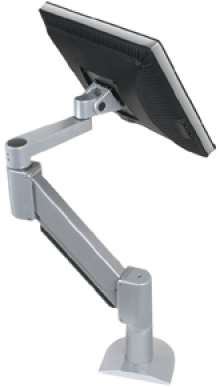

Innovative 9105-FM Heavy Duty Desk Mount LCD Arm with Cable Management


Integrated cable management

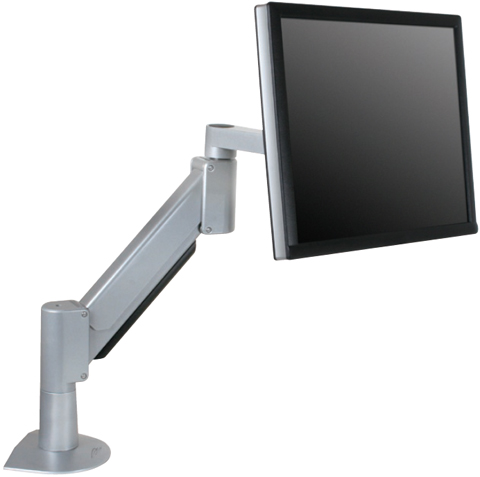

Innovative 9105-FM Heavy Duty Desk Mount LCD Arm

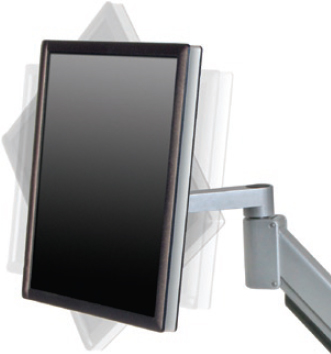

Monitor Pivots from Landscape to portrait


Monitor pivots from landscape to portrait


Frequently Asked Questions

q What is the dual monitor bracket? It is offered as an option on this product page. Is it another arm that attaches and swivels separately? Or would the monitors be mounted together and move as a unit?

The dual monitor bracket attaches to the Innovative 9105 arm directly and the monitors move together in unison. It is not a separate arm.

Model 9105-500-DM-NM or 9105-800-NM
Manufacturer Innovative LCD Arms
Part Number 9105-500-DM-NM or 9105-800-NM
Weight lb(s)
Mounting Options Desk
Mounting Options Wall
Monitor Arm Types 1 Monitor
Mounting Options Pole
Number of Monitors 1 Monitor
Monitor Size Up to 32"
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Height Adjustment 15.5"
Extension 24"
Pivot Landscape/Portrait
Rotation At three joints 360 degree
Mounting Options Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
Mounting Pattern VESA 75mm and 100mm
Warranty 10 Years
Monitor Weight 9105-500: 8.2 - 19.3 lbs, 9105-800: 13.2 - 32.6 lbs, 9105-1000: 21.8 - 37.7 lbs, 9105-1500: 35.5 - 54 lbs
