Peerless PSTA-2955 or PSTA-2955-W Short Throw Projector Mount Arm up to 35 lbs

Important Note: All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless projector mount

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15996
Options
List Price: $329.00
Our Price: $318.00
Shipping: $28.98 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Related Products:



Part Number

Description

PSTA-2955

Black Short Throw Projector Mount for Short Throw Projectors up to 35 lbs, from Wall 29-55"

PSTA-2955-W

White Short Throw Projector Mount for Short Throw Projectors up to 35 lbs, from Wall 29-55"





Peerless PSTA-2955 or PSTA-2955-W Short Throw Projector Kit for Projectors up to 35 lbs (15 kg)


Peerless PSTA 2955 or PSTA 2955 W Short Throw Projector Mount Arm

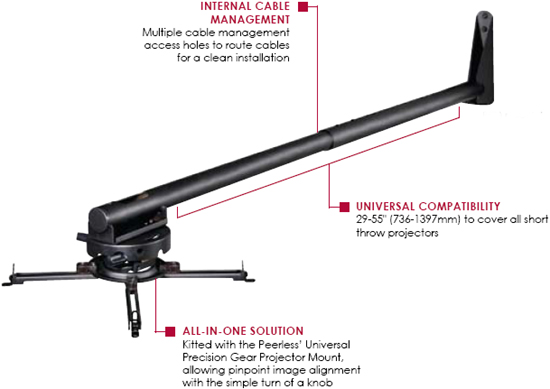

Features of Peerless PSTA2955 or PSTA2955W:



  • Telescoping arm design provides a large range of mounting options with convenient lock down slots at every point.

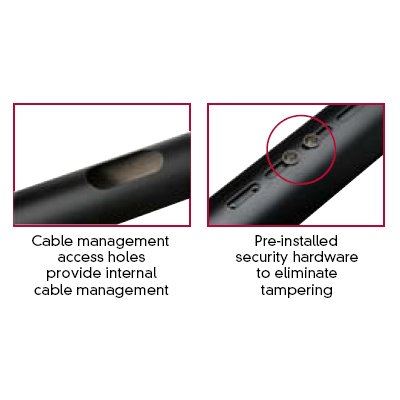

  • Access slots allow for all internal cable management.

  • Double stud wall plate allows for 6" (152 mm) of lateral adjustment for precise alignment of the ultra-short throw projector.

  • Pre-installed security screws lockdown short throw arm and prevent tampering.

  • Kitted with Peerless’ Universal Precision Gear Projector Mount (PRG-UNV), patent-pending precision gears that provide exact projector image alignment.

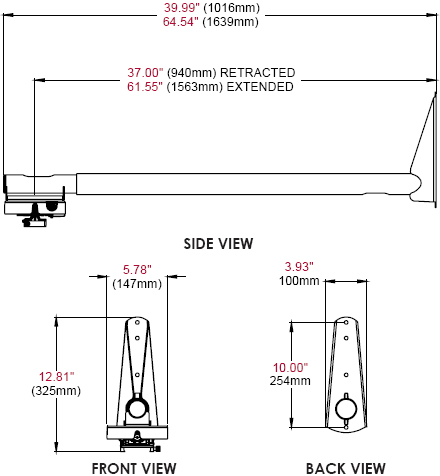

Technical Drawing of Peerless PSTA-2955 Short Throw Projector Kit



Technical Drawing of Peerless PSTA-2955 Short Throw Projector Kit









Description of Peerless PSTA-2955-W:



This Universal Short Throw Projector Mount (PSTK models) provides flexibility to install to a single stud or a double stud application and gives up to 6" (152 mm) of lateral adjustment for perfect projector placement any time. In addition, its universal telescoping arm is easily adjustable to accommodate short throw projector distance requirements. Complementary to the universal design of the short throw projector arm, this comprehensive package comes with Peerless’ Universal Precision Gear Projector Mount that makes image alignment as easy as a simple turn of a knob. Tying the installation together is its internal cable management system that is the oasis of a clean clutter-free installation. Peerless delivers a comprehensive solution in one package for any short throw projector installation.









Specifications of Peerless PSTA-2955-W or PSTA-2955:



Color:

Black and White

Mounting Pattern:

Up to 17.63" (448 mm)

Distance From Wall:

29"-55" (736-1397 mm)

Tilt:

±20°

Swivel:

±15°

Roll:

±10°

Mounting Surfaces:

Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)

Product Dimensions (W x H x D):

3.93" x 11" x 40-65" (100 x 279 x 1026-1663mm)

Product Weight:

14 lbs (6 kg)

Load Capacity:

35 lbs (15 kg)

Finish:

Scratch resistant fused epoxy

Package Size (W x H x D):

17.13" x 4.75" x 45.75" (435 x 120 x 1162mm)

Package Ship Weight:

21.58lb (9.79kg)

Package Contents:

  • Short throw arm

  • PRG-UNV

  • Installation hardware

  • Assembly instructions

Units in Package:

1







Literature (Please open the following documents for more technical information)




Peerless PSTA-2955 or PSTA-2955-W Short Throw Projector Mount Arm - Catalog Page

- pdf
Peerless PSTA 2955 or PSTA 2955 W Short Throw Projector Mount - Technical Drawing

- pdf
Peerless PSTA2955 or PSTA2955W Short Throw Projector Kit - Installation and Assembly

- pdf


Model PSTA-2955 or PSTA-2955-W
Manufacturer Peerless Mounts
Part Number PSTA-2955 or PSTA-2955-W
UPC 735029262862
Weight 21.00 lb(s)
Color Black or White
Dimensions (W x H x D) 3.93" x 11" x 40-65" (100 x 279 x 1026-1663mm)
Weight 14 lbs (6 kg)
Weight Capacity 35 lbs (15 kg)
Mounting Pattern Up to 17.63" (448 mm)
Distance From Wall 29"-55" (736-1397 mm)
Tilt ±20 degree
Swivel ±15 degree
Roll ±10 degree
Mounting Surfaces Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)
Shipping Weight 21.58 lbs (9.79 kg)
Shipping Dimensions 17.13" x 4.75" x 45.75" (435 x 120 x 1162mm)
