Chief PFMUB or PFMUS Large Confidence Monitor Cart (42-71")

Product ID 16028
Chief PFMUB or PFMUS Large Confidence Monitor Cart (42-71")
Chief PFMUB or PFMUS Large Confidence Monitor Cart (42-71")
Chief PFMUB or PFMUS Large Confidence Monitor Cart (42-71")
Chief PFMUB or PFMUS Large Confidence Monitor Cart (42-71")
Chief PFMUB or PFMUS Large Confidence Monitor Cart (42-71")
Chief PFMUB or PFMUS Large Confidence Monitor Cart (42-71")

Related Products

Part Number

Description

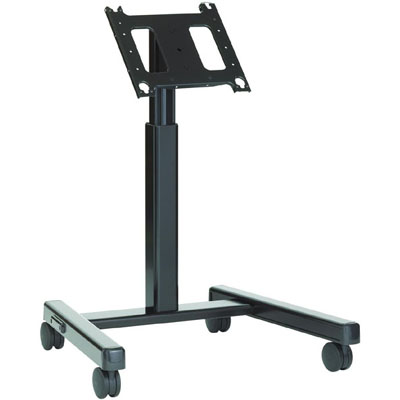

PFMUB

Black Flat Panel Confidence Monitor Mobile Cart for 42 to 71" Displays

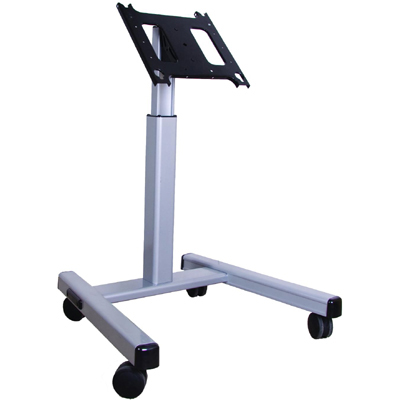

PFMUS

Silver Confidence Monitor Mobile Display Cart for 42 to 71" Displays



Chief PFMU Flat Panel Confidence Monitor Lightweight Mobile Cart

Description

Chief PFMU is a lightweight mobile cart with a collapsible design.

  • Fits TVs 42-71"

  • Offers 3' - 4' (91-121 cm) of height adjustment

  • Ideal for interactive touch screens and confidence monitors

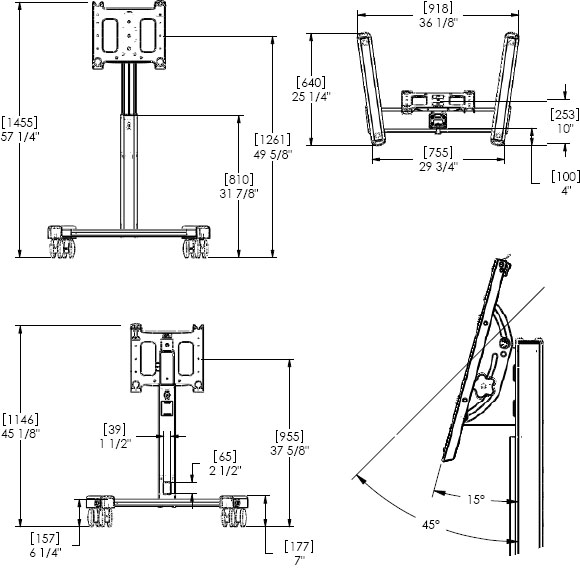

Technical Drawing

Technical Drawing for Chief PFMUB or PFMUS Flat Panel Confidence Monitor Cart



Specifications

Center of Display to Floor/Table Range

37.63 - 49.63" (956 - 1261mm)

Color

Black, Silver

Manual Height Adjustment

12"

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

57.2" x 36.1" x 25.2" (1453 x 917 x 640mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

63.00 lbs

Solution Type

Universal

Tilt

+ 45°, + 15°

Typical Screen Sizes

42 - 71"

Weight Capacity

200 lbs (90.7kg)



Features

  • Centris Technology provides effortless, fingertip tilt
  • Screen angle stays set in place until you decide to re-adjust
  • Provides telescoping height adjustment without tools
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Offers quick connect/disconnect with no tools necessary
  • Includes integrated security with the addition of a padlock

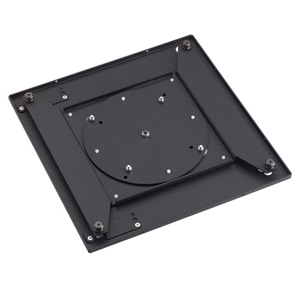

  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
  • Lockable rear wheels provide added stability
  • Compact, angled base makes corner positioning easy
Model PFMUB, PFMUS
Manufacturer Chief Mounts
Part Number PFMUB or PFMUS
UPC 841872107820
Weight lb(s)
Center of Display to Floor/Table Range 37.63 - 49.63" (956 - 1261mm)
Color Black, Silver
Manual Height Adjustment 12"
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 57.2" x 36.1" x 25.2" (1453 x 917 x 640mm)
Shipping Weight 63.00 lbs
Tilt + 45, + 15 degree
Monitor Size 42 - 71"
Weight Capacity 200 lbs (90.7kg)
Mounting Options Cart
