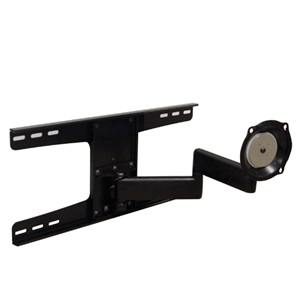

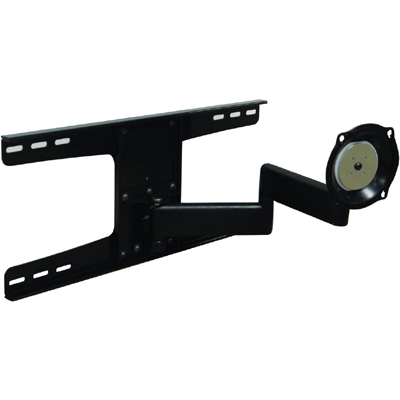

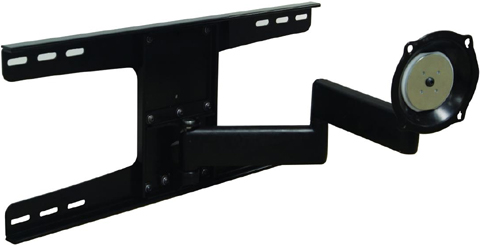

Chief JWDSK210B Dual Steel Stud Wall Mount - 20" Extension
Related Products
|
Part Number |
Description |
|
JWDSK210B |
Black Flat Panel Steel Stud Dual Swing Arm Wall Mount for 26 to 45" Displays |
|
JWDSK210S |
Silver Steel Stud Dual Swing Arm Wall Mount for 26 to 45" Flat Panel Displays |
|
JWDSKVB |
Black Universal Medium Flat Panel Steel Stud Dual Swing Arm Wall Mount |
|
JWDSKVS |

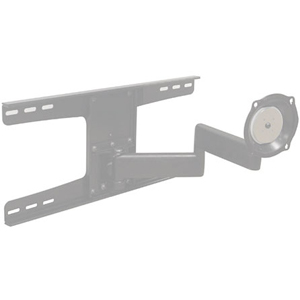

Silver Wall Mount Universal Medium Flat Panel Steel Stud Dual Swing LCD Arm |
|
JWDSKUB |
Black Universal Steel Stud Dual Swing Arm Wall Mount for 26 to 45" Displays |
|
JWDSKUS |
Silver Wall Mount Steel Stud Dual Swing Arm for 26 to 45" Flat Panel Displays |
Description
Easily installs a Chief JWDSK Dual Swing Arm Wall Mount to 16", 20" or 24" on-center steel studs.

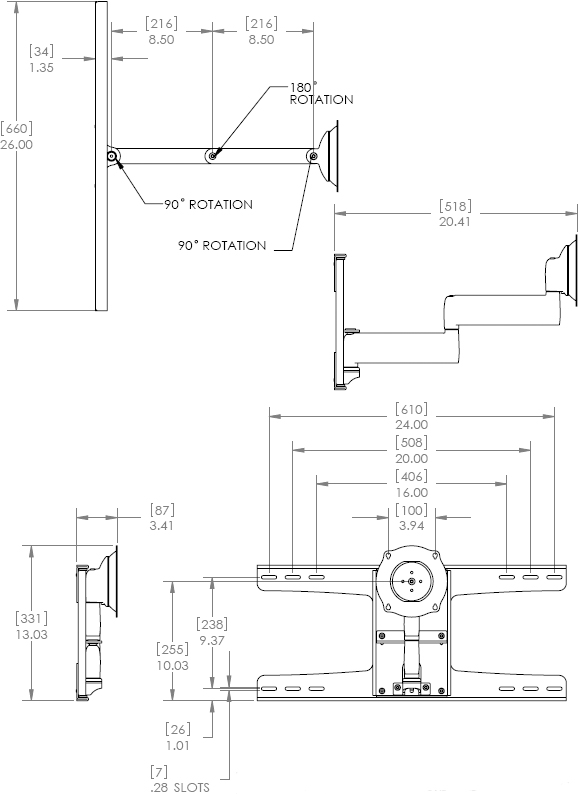

Technical Drawing
Specifications
|
Color |
Black, Silver |
|
Maximum Extension |
20.41" (518.4mm) |
|
Minimum Depth |
3.41" (86.6mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 400 x 400mm |
|
Notes |
Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
13.0" x 26.0" x 3.4" (331 x 660 x 87mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
JWDSK210: 24.00 lbs, JWDSKU: 26.70 lbs, JWDSKV: 28.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
26 - 45" |
|
Wall Stud Compatibility (inches) |
Metal Studs,16", 24" |
|
Weight Capacity |
75 lbs (34.kg) |
Features
- Mounts a dual swing arm to 16", 20", or 24" on-center steel studs
- Centris Technology provides smooth, fingertip tilt in any direction
- Smooth extension over 20" (517 mm) to achieve the ideal viewing angle
- Folds in close to the wall for a low-profile appearance
- Quick, easy cable management
- All mounting hardware included
- VESA 100 x 100 mm, 200 x 100 mm and 200 x 200 mm compatible (interface brackets available for non-VESA compliant displays)
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Product Options/Accessories
Frequently Asked Questions
Product Information
- Model JWDSK Series
- Manufacturer Chief Mounts
- Part Number JWDSK Series
- UPC 841872114477
- Weight 24 lb(s)
- Color Black, Silver
- Maximum Extension 20.41" (518.4mm)
- Minimum Depth 3.41" (86.6mm)
- Mounting Pattern 100 x 100mm - 400 x 400mm
- Overall Dimensions 13.0" x 26.0" x 3.4" (331 x 660 x 87mm)
- Shipping Weight JWDSK210: 24.00 lbs, JWDSKU: 26.70 lbs, JWDSKV: 28.00 lbs
- Tilt + 15, - 15 degree
- Monitor Size 26 - 45"
- Wall Stud 16", 24"
- Weight Capacity 75 lbs (34.kg)
- Mounting Options Wall
No reviews yet. Be the first to share your thoughts!
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
