Chief JWDIW210B Dual In-Wall Swing Arm Mount- 21" Extension
Must order MAC501 In-Wall Accessory to complete the installation.
Related Products
|
Part Number |
Description |
|
JWDIW210B |
Black In-Wall Swing Arm Wall Mount for 26 to 40 inch Flat Panel Displays |
|
JWDIWUB |
Black Flat Panel In-Wall Swing Arm Wall Mount for 26 to 40 inch Displays |
|
JWDIWVB |
Black Flat Panel In-Wall Swing Arm Wall Mount for 26 to 40 inch Displays |
Description

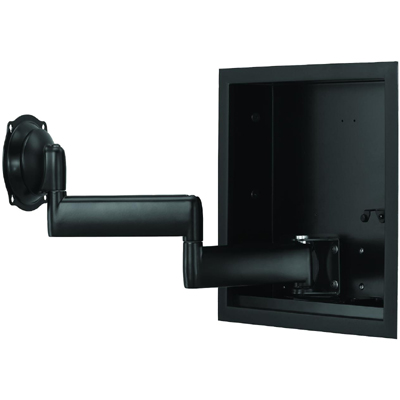

Chief JWDIW is a low-profile mount designed to be hidden in the wall. Must order MAC501 In-Wall Accessory.
Ships fully assembled

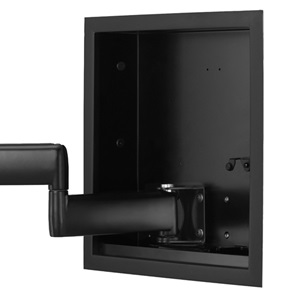

Ready for fast installation into a MAC501 In-Wall Accessory

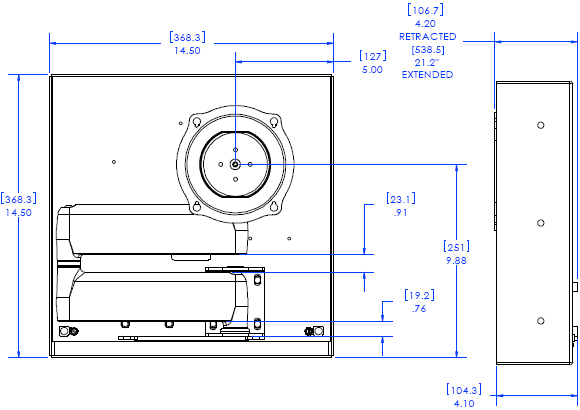

Technical Drawing
Specifications
|
Color |
Black |
|
Maximum Extension |
17" (431.8mm) |
|
Minimum Depth |
0.1" (2.5mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 400 x 400mm |
|
Notes |
Require MAC501B. Depth and Extension do no include interface bracket (adds 0.5 - 1.5") |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
14.5" x 14.5" x 4.2" (368 x 368 x 107mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
JWDIW210: 13.15 lbs, JWDIWU: 15.70 lbs, JWDIWV: 16.15 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
26 - 45" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
75 lbs (34.kg) |
Features
- Low profile, designed to ensure that the mount remains concealed behind the screen

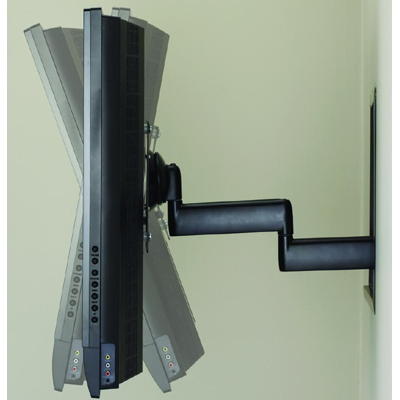

- Centris Technology provides smooth, fintertip tilt in all directions
- Used with the MAC501B installed in between 16" on center studs.
- No header or footer necessary

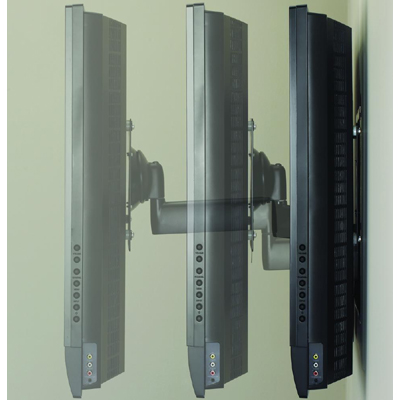

- Smooth extension up to 21" (538 mm) to achieve ideal viewing angle

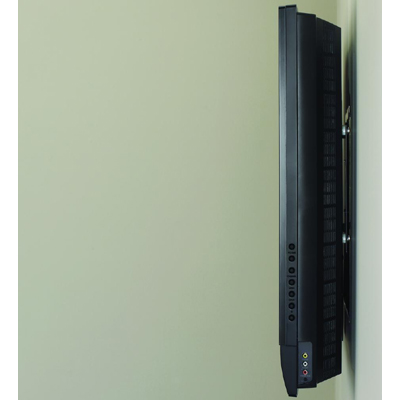

- Back of TV sits close to the wall (0.1" for VESA 100 x 100mm screens and 0.65" for screens having up to 400 x 400mm patterns)

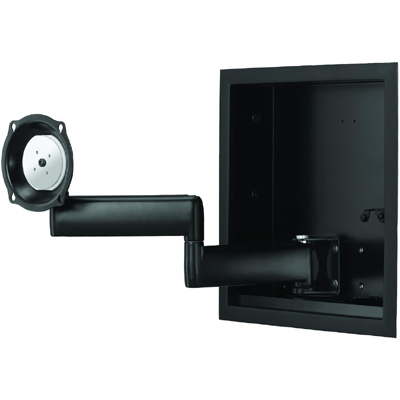

- VESA Compatibility: JWDIW210: up to 200 x 200mm, JWDIWU: up to 400 x 400mm
- Note: Must order MAC501 to complete installation
Product Options/Accessories
Frequently Asked Questions
No. The JWDIW is designed to attach into the MAC501 In-Wall Box Accessory for a flush installation.
No. The JWDIW ships as a complete unit and must be installed with the MAC501 accessory (ordered separately).
No
| Model | JWDIW Series |
| Manufacturer | Chief Mounts |
| Part Number | JWDIW Series |
| UPC | 841872114484 |
| Weight | lb(s) |
| Mounting Options | In-Wall |
| Color | Black |
| Maximum Extension | 17" (431.8mm) |
| Minimum Depth | 0.1" (2.5mm) |
| Mounting Pattern | 100 x 100mm - 400 x 400mm |
| Overall Dimensions | 14.5" x 14.5" x 4.2" (368 x 368 x 107mm) |
| Shipping Weight | JWDIW210: 13.15 lbs, JWDIWU: 15.70 lbs, JWDIWV: 16.15 lbs |
| Tilt | + 15, - 15 degree |
| Monitor Size | 26 - 45" |
| Wall Stud | 16" |
| Weight Capacity | 75 lbs (34.kg) |
