$1,420.00

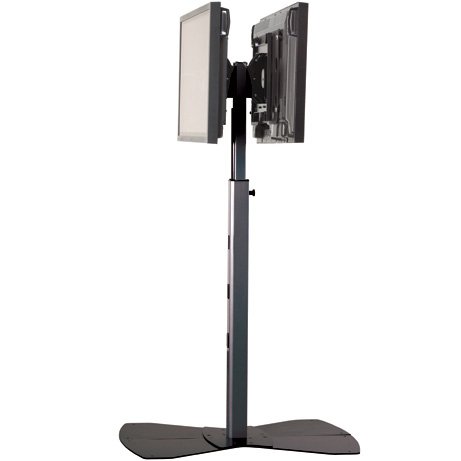

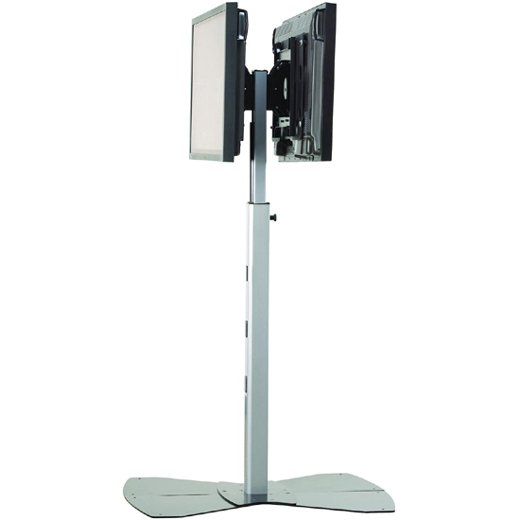

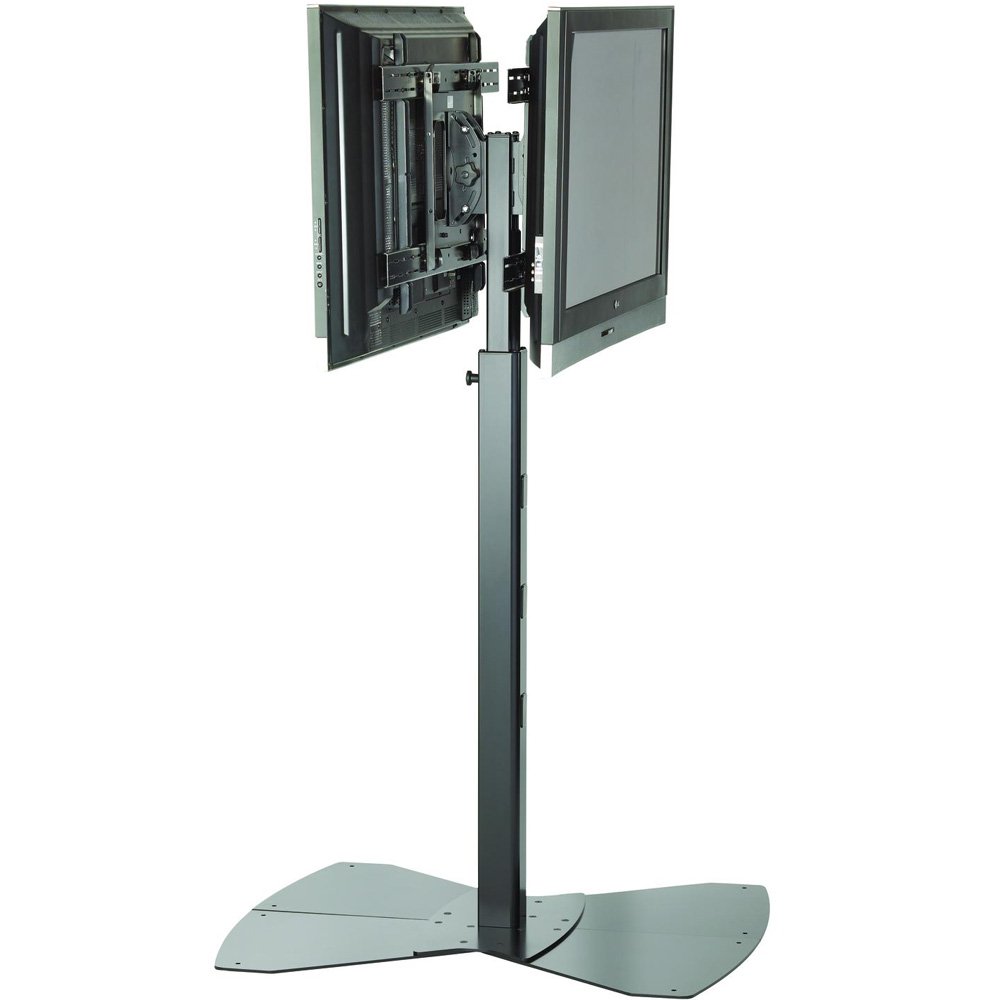

Chief PF22000 Large Dual Display Floor Stand (without interface)

Additional PSB2020 or PSB2021 or PSB2243 Custom Interface Bracket required.

Product ID 16160
Chief PF22000 Large Dual Display Floor Stand (without interface)
Chief PF22000 Large Dual Display Floor Stand (without interface)
Chief PF22000 Large Dual Display Floor Stand (without interface)
Chief PF22000 Large Dual Display Floor Stand (without interface)
Chief PF22000 Large Dual Display Floor Stand (without interface)
Chief PF22000 Large Dual Display Floor Stand (without interface)
Chief PF22000 Large Dual Display Floor Stand (without interface)
Chief PF22000 Large Dual Display Floor Stand (without interface)

Related Products

Part Number

Description

PF22000B

Black Flat Panel Dual Display Floor Stand Mount for 42 to 71" Displays

PF22000S

Silver Flat Panel Dual Display Floor Stand for 42 to 71" Displays

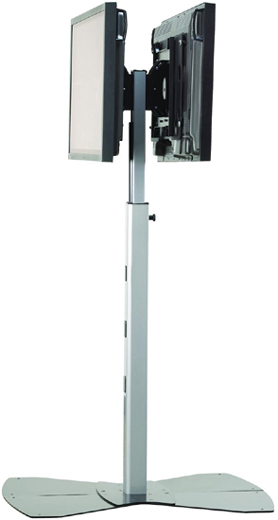

Chief PF2 series Flat Panel Dual Displays Floor Stand

Description

Chief PF2 AV stand supports two displays back-to-back and features telescoping height adjustment and integrated cable management.

  • Ideal for digital signage and corporate presentations

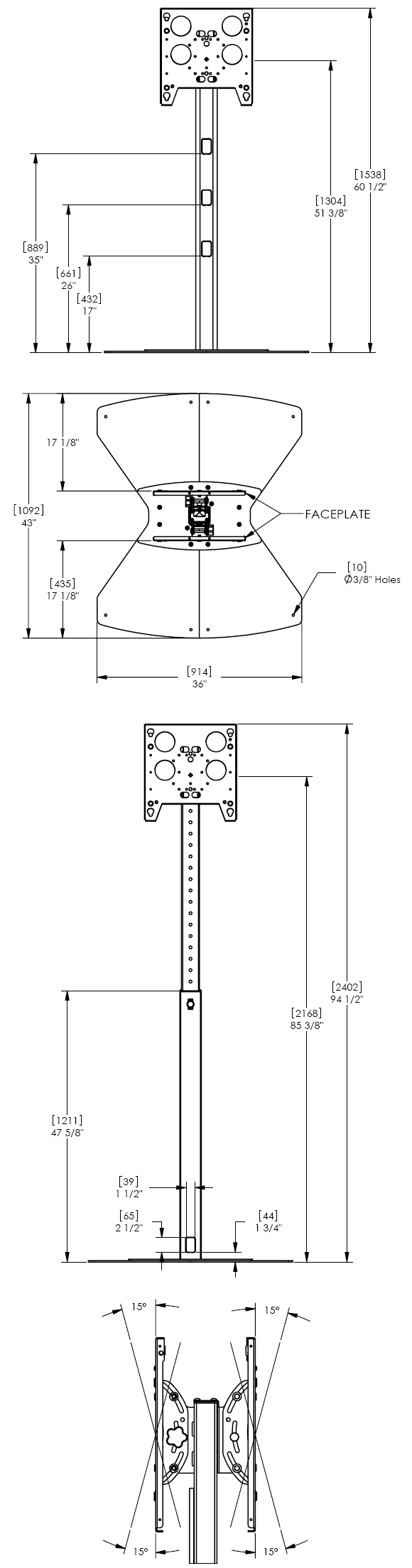

Technical Drawing

Technical Drawing for Chief PF22000B or PF22000S Flat Panel Dual Display Floor Stand



PSB-2020

Technical Drawing for Chief PSB-2020 Mounting Bracket



Specifications

Center of Display to Floor/Table Range

51.38 - 85.38" (1305 - 2169mm)

Color

Black, Silver

Manual Height Adjustment

34"

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

94.5" x 36.0" x 43.0" (2400 x 914 x 1092mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

144.00 lbs

Tilt

+ 15°, - 15°

Typical Screen Sizes

42 - 71"

Weight Capacity

200 lbs (90.7kg) per display



Features

  • Centris Technology provides effortless, fingertip tilt
  • Screen angle stays set in place until you decide to re-adjust
  • Provides telescoping height adjustment without tools
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Offers quick connect/disconnect with no tools necessary
  • Includes integrated security with the addition of a padlock
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
  • Flat, angled base makes corner positioning easy

Frequently Asked Questions

q Is a shelf option available with the floor stand?
a

Yes. Up to three PAC710 adjustable-height shelves can be used with the floor stand (must be ordered separately).

q Is there an option available for storage and transport of the floor stand in rental and staging applications?
a

No. A new travel case, the PAC700, is designed specifically for the new Chief mobile carts and does not correctly support the new floor stands.

q Do I need to order a separate interface bracket?
a

No. The new Chief mobile carts and floor stands include a universal interface bracket. If you prefer, you can also order a separate custom interface bracket (MSB or PSB) designed specifically for your display.

Model PF22000B, PF22000S
Manufacturer Chief Mounts
Part Number PF22000B or PF22000S
UPC 841872105796
Weight lb(s)
Center of Display to Floor/Table Range 51.38 - 85.38" (1305 - 2169mm)
Color Black, Silver
Manual Height Adjustment 34"
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 94.5" x 36.0" x 43.0" (2400 x 914 x 1092mm)
Shipping Weight 144.00 lbs
Tilt + 15, - 15 degree
Monitor Size 42 - 71"
Weight Capacity 200 lbs (90.7kg) per display
Mounting Options Stand

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
