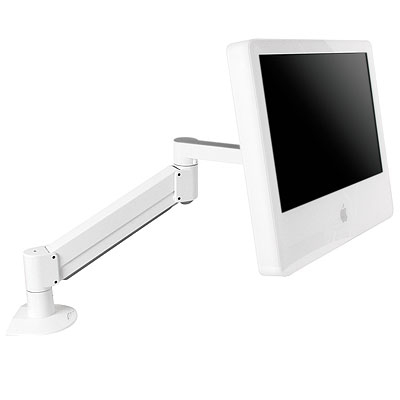

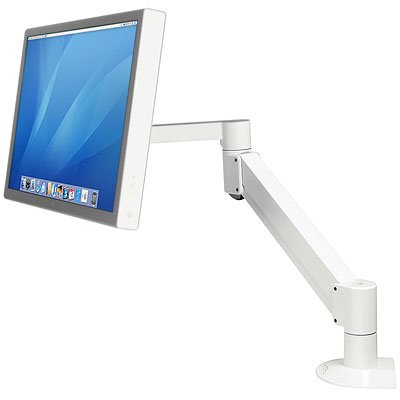

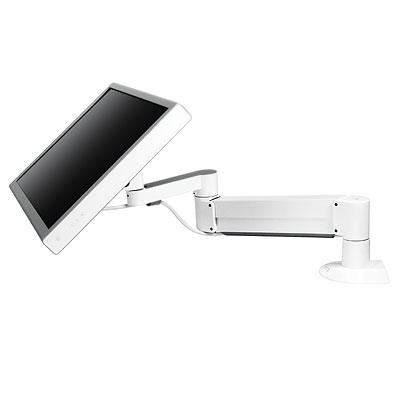

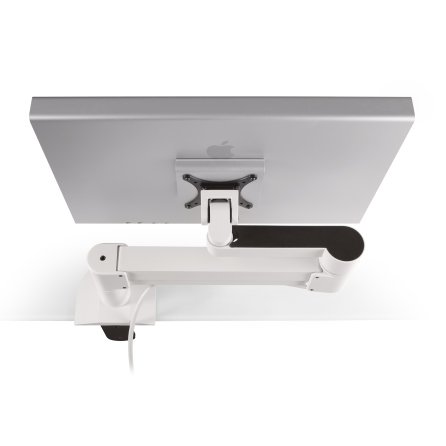

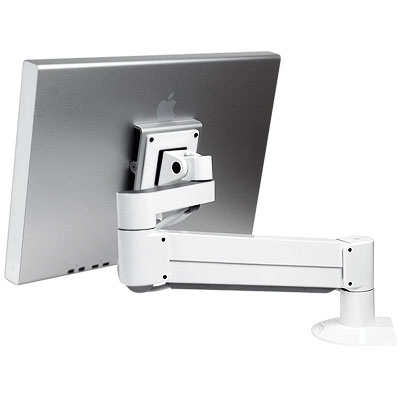

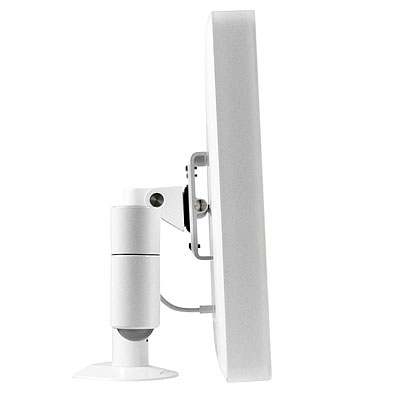

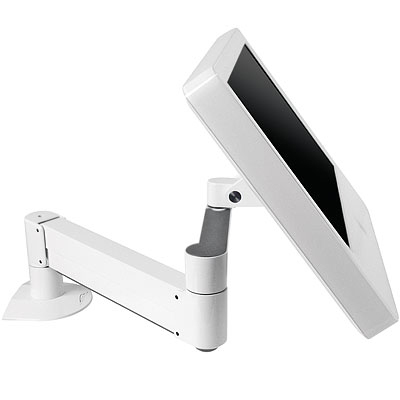

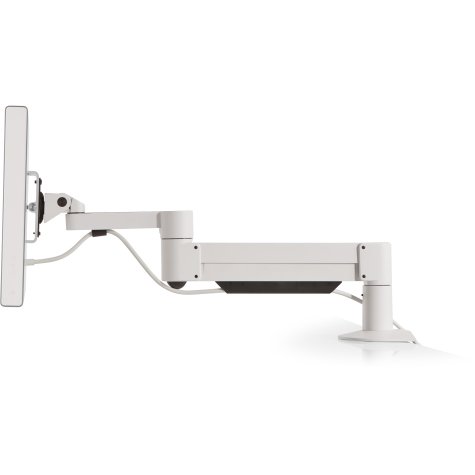

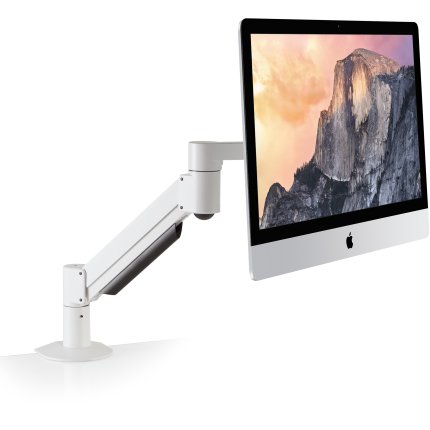

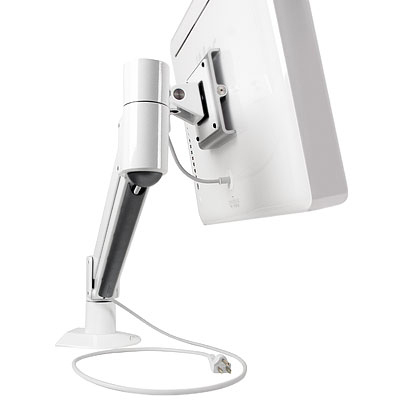

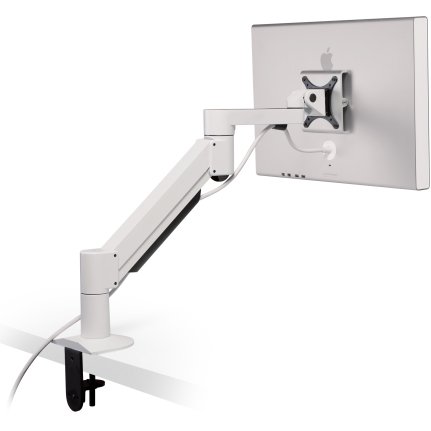

Innovative 7517 iLift Flexible Mount for Apple Display & iMac G5

Product ID 16184


  • Monitor arm for iMacs, Apple Cinema displays (See Compatibility Chart under Downloads)
  • FLEXmount: 6 mounting options desk edge, thru-desk, wall, reverse wall, side bolt, grommet
  • iLift 7517 has 2 models - Weight capacity of 7517-1000 is 7-27 lbs, 7517-1500 is 12-40 lbs
  • Horizontal extension: 27" horizontal reach
  • Foldability: Folds up with monitor to occupy 3" space

Innovative FLEXmount


Innovative 7517 iLift monitor arm is the perfect accessory for Apple’s iMac and Cinema display. This monitor arm suspends the monitor weightlessly above the desktop, where it can be easily moved with one hand. This monitor mount allows users to save space and work ergonomically by placing the monitor exactly where it is needed.

A space-saving monitor mount for Apple users, the iLift is an ergonomic monitor arm solution designed to work with the Apple Cinema Display or iMac monitor.

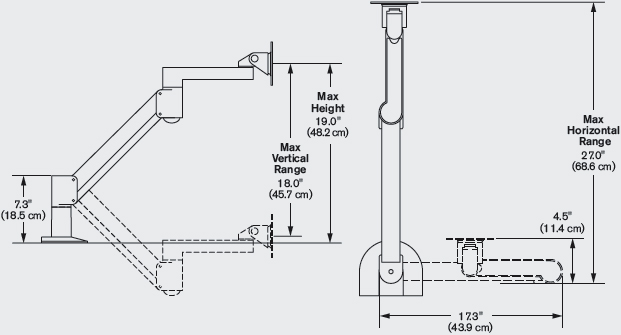

Technical Drawing

Technical Drawing for Innovative 7517 iLift Flexible Mount for Apple Display and iMac G5

Technical Specifications

Color 248 - Flat White
Screen Size Up to 24"
Extension Range 27.0" (68.6 cm)
Height Adjustment 18" (45.7 cm), +/- 9" (22.9 cm) from horizontal
Monitor Pivot Landscape / Portrait
Monitor Rotation 360 degrees at three joints
Monitor Tilt 200 degrees
Cable Management Cables are concealed in arm
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility 75 & 100mm, adapter included
Warranty 10 Years
Weight Capacity
  • 7517-1000: 7 - 27 lbs (3.2 - 12.2 kg)

  • 7517-1500: 12 - 40 lbs (5.4 - 18.1 kg)


  • Compatible with all models:
    * 20, 23 and 24-inch Cinema Displays select 7517-1000
    * 17 & 20-inch iMac G5 select 7517-1000
    * 30-inch Cinema Displays select 7517-1500

  • FLEXmount with six mounting options is available, including desk clamp, thru-desk, and wall mounting

  • Mount floats the monitor weightlessly; height, pivot, and tilt may be adjusted with one hand

  • Monitor arm extends up to 27" and collapses to about 4.5"

  • Monitor tilter mechanism offers 200 degrees of tilt

  • Arm includes cable management that keeps the work surface free of annoying cable clutter

  • iMac monitor mount provides additional security for monitor - removes the danger of monitor tipping over or slipping off the desk

  • ESA-monitor compatible - 75mm & 100mm VESA adapter included

  • Monitor arm may require the purchase of a VESA Mount Adapter Kit, available through Apple dealers:
    * Cinema Display: part # M9649G/A, iMac G5 (17" and 20"): part #M9755G/A
    * iMac w/ iSight (24" only): part #MA473G/A

Model 7517-1000, 7517-1500
Manufacturer Innovative LCD Arms
Part Number 7517-1000, 7517-1500
Weight lb(s)
Mounting Options Desk
Monitor Arm Types 1 Monitor
Year late 2013
Tilt 200 degree
Weight Capacity 7517-1000: 7 - 27 lbs (3.2 - 12.2 kg). 7517-1500: 12 - 40 lbs (5.4 - 18.1 kg)
Mounting Options Wall
Number of Monitors 1 Monitor
Color 248 - Flat White
Monitor Size Up to 24"
Height Adjustment 18" (45.7 cm)
Pivot Landscape/Portrait
Rotation At three joints 360 degree
Mounting Options Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
Extension 27" (68.6 cm)
Mounting Pattern VESA 75mm and 100mm
Warranty 10 Years
