Ergotron 33-329-085 Neo-Flex Widescreen Lift Stand

Be the first to review this product
Product ID: 16194
Recommended Accessories
List Price: $275.00
Our Price: $149.99
Shipping: $19.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Technical drawing for Ergotron 33-329-085 Neo-Flex Widescreen Lift Stand

Description

Upgrade larger displays with five-inch (13 cm) height adjustment, tilt, pan and portrait-to-landscape rotation for optimum viewing. Embedded with patented motion technology, Ergotron 33-329-085 stand enables light-touch adjustments without any knobs or levers.

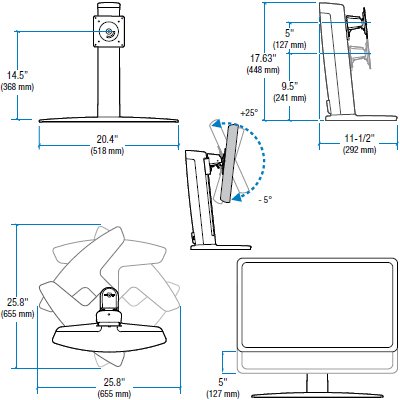

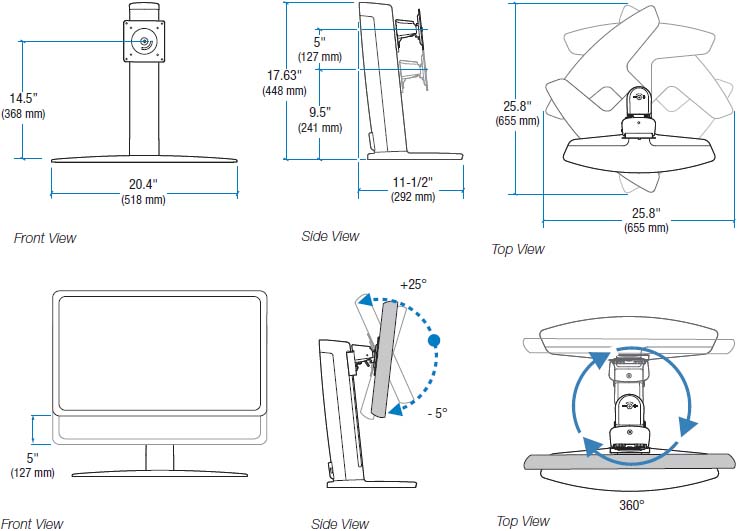

Technical Drawing

Technical drawing for Ergotron 33-329-085 Neo-Flex Widescreen Lift Stand

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
20" - 32"

16 - 36 lbs

7.3 - 16.3 kg

5"

12.7 cm

30° 360° 90° MIS-D/E/F

Product Information

Part Number 33-329-085 (previously sold as 33-329-057 and 33-321-057)
Description Neo-Flex Widescreen Monitor Lift Stand (black)
Includes
  • Stand

  • Monitor mounting bracket

  • Manual

  • Cable ties

  • VESA monitor mounting kit

Cables Everything is included to neatly route cables behind the stand, out of the way
Weight Capacity 16–36 lbs (7.3–16.3 kg)
Tilt Monitor up/down tilt = +25°/-5
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Landscape-to-Portrait Screen Landscape-to-portrait screen rotation may be inhibited when using screens that are 30"–32" in size
Apple's Cinema Display Apple’s Cinema Display requires a separately ordered adaptor bracket, which is available from Apple
UL Compliant Meets UL Specification 1678 Tip Test
Product Weight 14.8 lbs (6.7 kg)
Shipping Dimensions 23.1" x 12.9" x 7.5" (587 x 327 x 190 mm)
Shipping Weight 16.5 lbs (7.5 kg)
Warranty Three (3) years

Benefits

  • Easily position your widescreen LCD for maximum ergonomic comfort - promotes wellness in any environment

  • Upgrade mid-size monitors or TVs with improved adjustability

  • Rotate screen for portrait viewing of photos and pages - eliminate scrolling

  • Fully weight-adjustable desk stand accommodates most mid-size displays

  • Easy to use - simple installation and effortless operation

  • Embedded with patented motion technology, this stand enables light-touch adjustments without any knobs or levers

  • Integrated base rollers enable 360° pan rotation of the stand so you can share your view with others

  • Five-inch (13 cm) height adjustment ergonomically accommodates average range of users

  • Patented Constant Force lift-and-pivot motion technology

Model 33-329-085
Manufacturer Ergotron
Part Number 33-329-085
UPC 698833011692
Color Black
Monitor Size 20"–32"
Weight Capacity 16–36 lbs (7.3–16.3 kg)
Lift (13 cm) 5 in
Tilt Up +25 degree/ down -5 degree
Pan 360 degree
Rotation 90 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm)
Shipping Dimensions 23.1" x 12.9" x 7.5" (587mm x 327mm x 190mm)
Shipping Weight 16.5 lbs (7.5 kg)
Warranty Three (3) years
Mounting Options Desk Stand
Monitor Arm Types 1 Monitor
Weight 14.8 lbs (6.7 kg)
