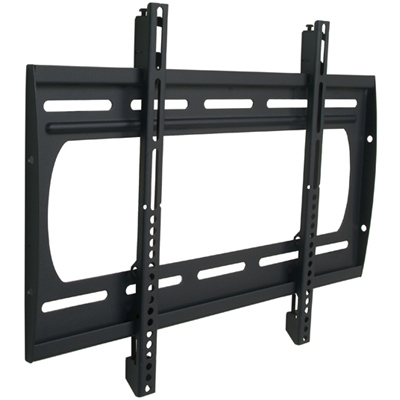

Premier Mounts P2642F Low-Profile Flat Panel Wall Mount up to 130 lb

Product ID 16214
HIGHLIGHTS

Highlights

  • For flat-panel displays up to 130 lb
  • it fits displays with a mounting pattern of 200 x 200mm to 535 x 400mm
  • Features post-installation leveling and locking security sections
  • Open mounting frame for easy access to power sources and cables

Description

Premier P2642F is a low-profile mount for flat panel displays up to 130 lb. It fits displays with a mounting pattern of 200 x 200mm to 535 x 400mm. The P2642F features post-installation leveling, lateral alignment, locking security sections and an open mounting frame for easy access to power sources and cables.

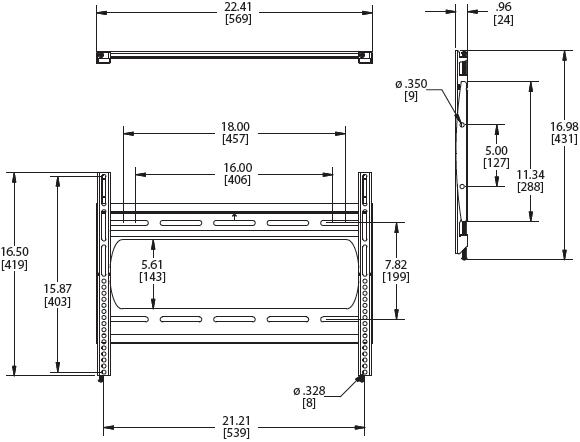

Technical Drawing

Premier Mounts P2642F Low-Profile Flat Panel Wall Mount

Specifications

Weight 9.6 lbs (4.4kg)
Width22.41" (569mm)
Height 16.5" (419mm)
Depth 0.96" (24mm)
Compatibility 200mm x 200mm - 535mm x 400mm

Features

  • Low-profile design

  • Post-installation leveling system

  • Open design for easy cable and electrical access

  • Built-in lateral shift

  • Universal hardware pack includes innovative universal spacers and M4-M8 screws

  • Mounting kit (Includes wood, concrete and steel stud attachment hardware)

Product Options/Accessories

Model P2642F
Manufacturer Premier Mounts
Part Number P2642F
UPC 829973101299
Weight lb(s)
Weight 9.6 lbs (4.4 kg)
Width 22.41" (569 mm)
Height 16.5" (419 mm)
Depth 0.96" (24 mm)
Mounting Pattern 200mm x 200mm - 535mm x 400mm
