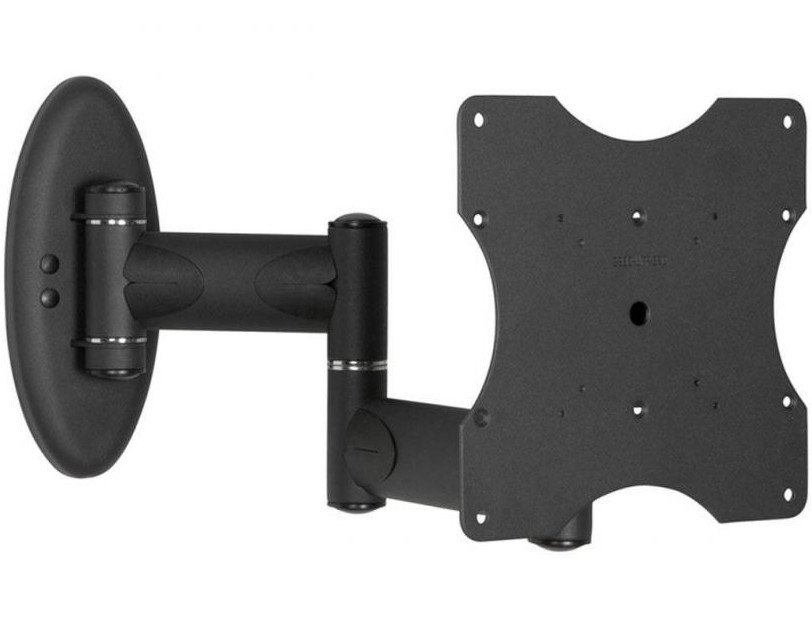

Premier Mounts AM50-B Articulating Dual Arm Swingout Wall Mount

Product ID 16216

Description

Premier AM50-B is a single stud, dual arm swingout mounting solution for flat-panel displays. Single stud installation saves installation time and allows for integration into any space. The AM50-B is also OSHPD certified and UL certified demonstrating some of the safest mounting solutions available for integrators.

Technical Drawing

Drawing of Premier Mounts P2642F Low-Profile Flat Panel Wall Mount

Specifications

Color Black
Weight Capacity 50 lbs
Width10.8" (274.32 mm)
Height 5.8" (147.32 mm)
Depth 11" (279.4 mm)
Swivel90°
Extension 16.9" (429.26 mm)
Shipping Dimensions10.8" W x 5.8" H x 11" D
Rotation360°
Weight 11.1 lbs (5.03 kg)
Compatibility VESA patterns 75 x 75 - 200 x 200

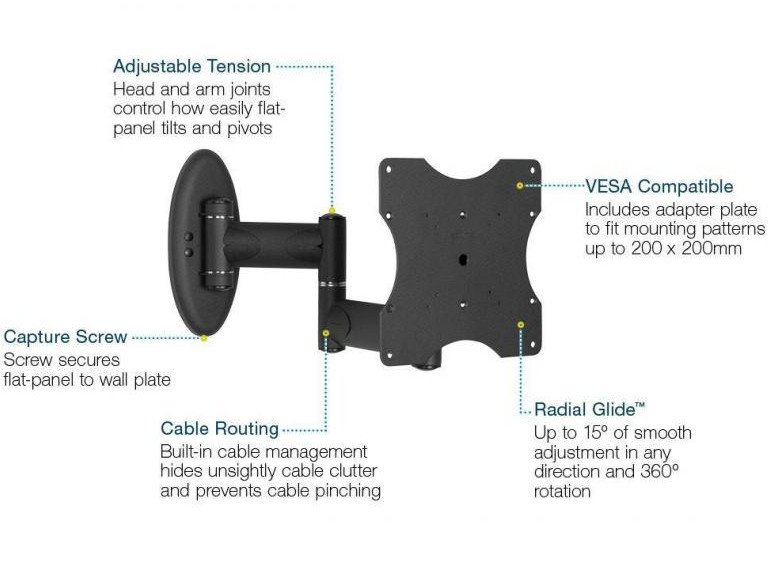

Features

  • 360 degree rotation

  • 90 degrees of swivel ensures displays are shown at the most optimal viewing height

  • OSHPD approved for highest earthquake safety ratings

  • Single stud installation time saving solution

  • Dual arm swing out up to 16.9" from the wall

  • Maximum VESA pattern of 200 x 200 mm

  • Radial Glide for smooth viewing angle adjustment

  • Support displays up to 50 lbs

Product Options/Accessories

Model AM50-B
Manufacturer Premier Mounts
Part Number AM50-B
UPC 829973101657
Weight lb(s)
Color Black
Weight Capacity 50 lbs
Weight 11.1 lbs (5.03 kg)
Width 10.8" (274.32 mm)
Height 5.8" (147.32 mm)
Depth 11" (279.4 mm)
Swivel 90 degree
Extension 16.9" (429.26 mm)
Mounting Pattern VESA 75 x 75 - 200 x 200
Shipping Dimensions 10.8" W x 5.8" H x 11" D
Rotation 360 degree
