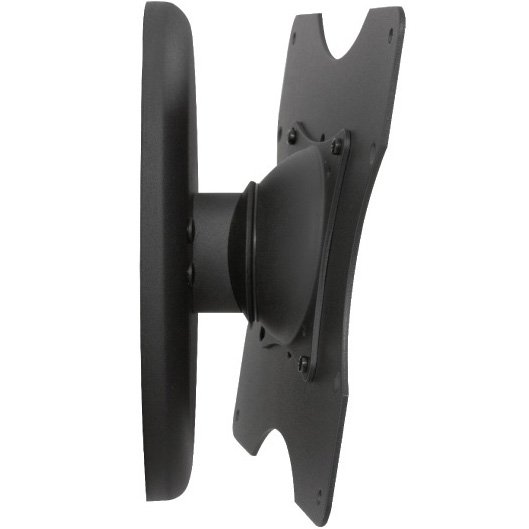

Premier PTM-B Single Stud Tilt and Pivot Wall Mount

Product ID 16217
HIGHLIGHTS

Highlights

  • Single stud tilt and pivot mount for flat panels up to 50 lb
  • Offers 15° of smooth adjustment with radial glide
  • Cable routing holes to route cables directly into the wall - included
  • OSHPD approved
  • UL Listed

Description

Premier PTM-B Single Stud Tilt and Pivot Mount holds flat panel displays up to 50 lbs. The wall mount offers 15° of smooth adjustment with Radial Glide and comes with cable routing holes to route cables directly into the wall for a clean appearance. OSHPD approved and UL listed, it is also available in silver (PTM).

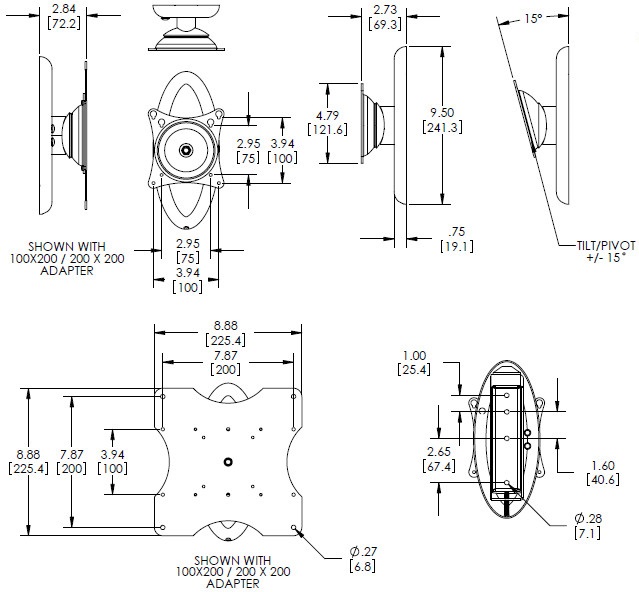

Technical Drawing

Technical Drawing for Premier PTM-B Single Stud Tilt and Pivot Wall Mount

Specifications

Color Black
Weight 6.4 lbs (2.9 kg)
Width 3.94"-8.88" (100-225 mm)
Height 9.5" (241 mm)
Depth 2.84" (72 mm)
Weight Capacity Up to 50 lbs (22.7 kg)
Compatibility75mm x 75mm - 200mm x 200mm

Features

  • Radial Glide Technology provides smooth tilt/pivot

  • +/-15° tilt & pivot

  • 360° screen rotation

  • Integrated cable routing

  • 75x75mm, 100x100mm, 200x100mm and 200x200mm VESA compatibility

  • Elliptical design adds rigidity and aesthetics

  • Set screws secure flat-panel to wall plate

  • A low-profile design, standing just 2.5" from wall

  • OSHPD & DSA Approved (OPA-1680)

Product Options/Accessories

Model PTM-B
Manufacturer Premier Mounts
Part Number PTM-B
UPC 829973101114
Weight lb(s)
Color Black
Weight Capacity Up to 50 lbs (23 kg)
Weight 6.4 lbs (2.9 kg)
Width 3.94 - 8.88" (100 - 225 mm)
Height 9.5" (241 mm)
Depth 2.84" (72 mm)
Rotation 360 degree
Tilt +/-15 degree
Mounting Pattern VESA 75x75mm, 100x100mm, 200x100mm and 200x200mm
