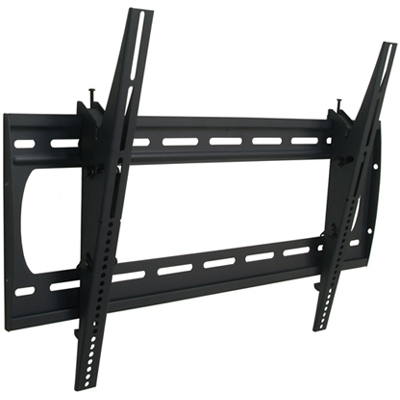

Premier P4263T Tilting Low-Profile Wall Mount for Flat Panels up to 175 lb

Product ID 16219
HIGHLIGHTS

Highlights

  • Low-profile tilting mount for flat panel displays up to 175 lb
  • ADA compliant
  • Hold displays less than 2" from the wall
  • OSHPD approved
  • Fits displays with a mounting pattern of 200 x 200 to 800 x 525mm
  • 10° tilt
  • Post-mounting leveling adjustment and built-in lateral shift

Description

Premier P4263T is a low-profile tilting mount for flat-panel displays up to 175 lb. With the ability to hold displays less than 2 inches from the wall, the P4263T is ADA compliant. In addition, this mounting solution is OSHPD approved signifying that it has gone through extensive calculation tests by an approved 3rd party testing facility and are certified to withstand all levels of seismic activity without detaching from the wall, preventing bodily harm to nearby people. This is important in areas of high foot traffic.

The P4263T fits displays with a mounting pattern of 200 x 200 to 800 x 525mm. Offering up to 10° of continuous tilt, a low-profile design, post-mounting leveling adjustment system, and built-in lateral shift for optimizing your installation location, the P4263T is a great tilt mounting solution for almost any application.

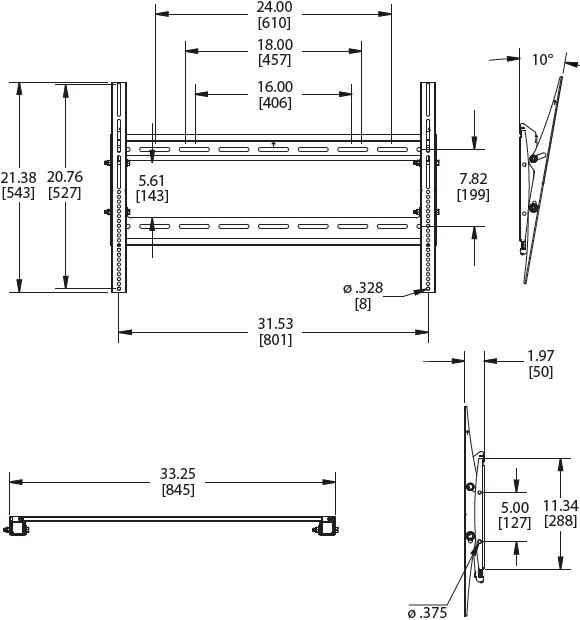

Technical Drawing

Premier P4263T Tilting Low-Profile Wall Mount

Specifications

Weight14.7 lbs. (6.7 kg)
Width33.25" (845 mm)
Height21.38" (543 mm)
Depth 1.97" (50 mm)
Compatibility 200mm x 200mm - 800mm x 525mm

Features

  • Low-profile design

    10° of continuous tilt

  • Post-installation leveling system

  • Open design for easy cable and electrical access

  • Built-in lateral shift

  • Universal hardware pack includes innovative universal spacers and M4-M8 screws

  • Mounting kit (Includes wood, concrete and steel stud attachment hardware

Product Options/Accessories

Model P4263T
Manufacturer Premier Mounts
Part Number P4263T
UPC 829973101329
Weight lb(s)
Weight 14.7 lbs (6.7 kg)
Width 33.25" (845 mm)
Height 21.38" (543 mm)
Depth 1.97" (50 mm)
Compatible 200mm x 200mm - 800mm x 525mm
