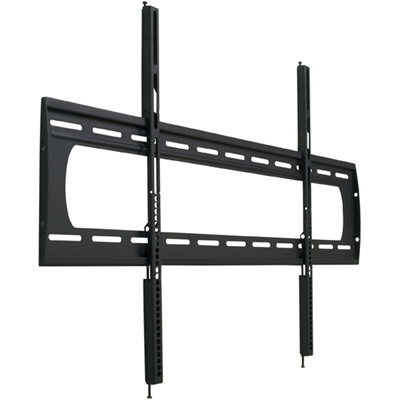

Premier P5080F Low-Profile Wall Mount up to 80 inch Flat Panel Displays
FeaturesofPremier P5080 F:
1. Low-profile design.
2. Post-installation leveling system.
3. Open design for easy cable and electrical access.
4. Built-in lateral shift.
5. Universal hardware pack includes innovative universal spacers and M4-M8 screws.
6. Mounting kit Includes wood, concrete and steel stud attachment hardware.
7. Lock-It security barrel included.

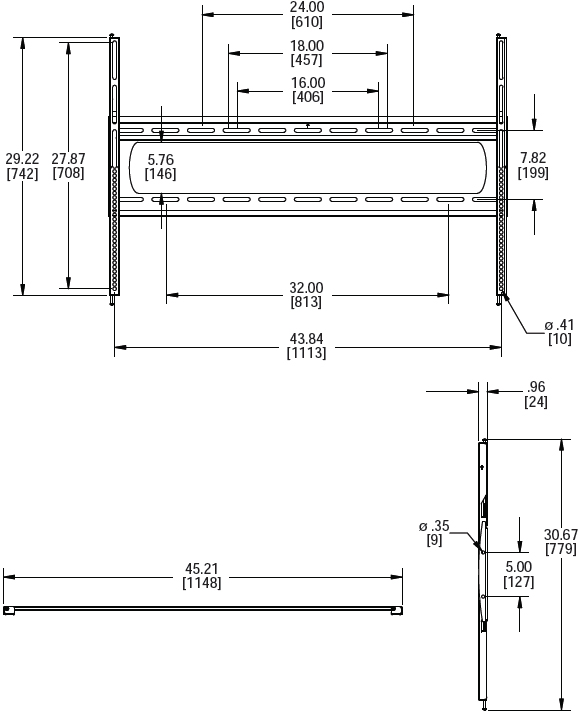

Technical Drawing forPremier P5080F Low-Profile Wall Mount up to 80" Displays
Description of Premier P5080-F:
The P5080F universal flat mount fits 50"-80" flat panel displays. It features a low-profile design, post-mounting leveling adjustment system, and built-in lateral shift for optimizing your installation location.
Specifications:
Model:
P5080F
Color:
Black
Ship Weight:
18 lbs
Display Range:
50" - 80"
Weight Capacity:
300 lbs (136 kg)
Depth:
0.95" (24 mm)
Mounting Patterns:
200x 200 mm (Min) - 1110 x 705 mm (Max)
Frequently Asked Questions:
What if I don't know my mounting pattern? Check the mount locator tool on www.mounts.com to see a list of compatible mounts or select a universal mount which fits a broader range of mounting points.
My flat panel could fit more than one mount. How do I choose? Installation requirements, aesthetics, flat-panel weight and range of motion should assist in whittling down your decision for you.
