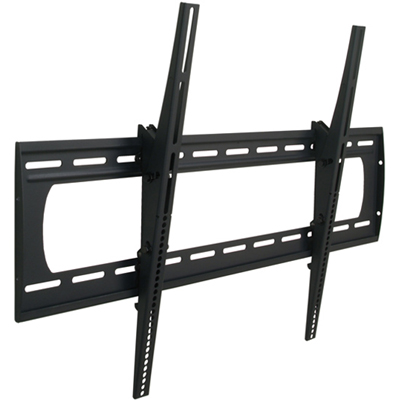

Premier P5080T Tilting Low Profile Wall Mount up to 80" Flat panel Displays
General Information
Premier P5080 T Universal Tilt Wall Mount up to 80" Flat Panel Displays
FeaturesofPremier P5080-T:
1. Low profile design.
2. Post-installation leveling system.
3. Open design for easy cable and electrical access.
4. Built-in lateral shift.
5. Universal hardware pack includes innovative universal spacers and M4-M8 screws.
6. Mounting kit includes wood, concrete and steel stud attachment hardware.
Technical Drawing forPremier P5080T Tilting Low-Profile Wall Mount
Description of Premier P5080 T:
The P5080T universal tilt mount fits 50"-80" flat panels. It offers up to 8 degrees of continuous tilt, a low-profile design, post-mounting leveling adjustment system and built-in lateral shift for optimizing your installation location.
Specifications:
Color:
Black
Ship Weight:
21 lbs
Display Range:
50" - 80"
Weight Capacity:
300lbs (136 kg)
Depth:
1.97" (50 mm)
Tilt:
8°
Mounting Patterns:
200 x 200 mm (Min) - 1100 x 700 mm (Max)
Frequently Asked Questions:
What if I don't know my mounting pattern? Check the mount locator tool on www.mounts.com to see a list of compatible mounts or select a universal mount, which fits a broader range of mounting points.
Does this mount come with concrete anchors? Yes. Our UberPak includes mounting hardware for wood, steel and concrete installation - all at no extra charge.
What is "post-installation leveling"? Screws at the top of each mounting bracket can be independently tightened to slightly adjust the level of the flat panel after installation, providing a last-minute correction if needed.
Literature(Please open the following documents for more technical information)
