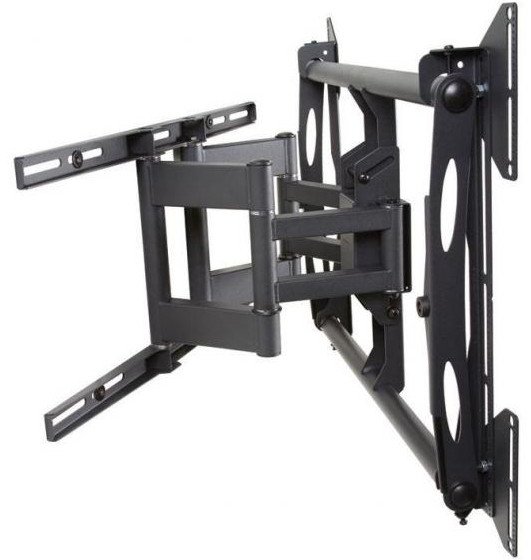

Premier AM175 Articulating Swingout Wall Mount Arm

Product ID 16224
HIGHLIGHTS

Highlights

  • Swingout Arm for flat panel displays
  • Weight capacity: 175 lbs
  • 10 degree of tilt
  • Up to 45 degree of swivel
  • Reach from the wall: 15.9"
  • Scissor style pull from the wall
  • Post-installation leveling enables fine-tune vertical adjustment after installation

Description

Engineered with safety as a top priority with versatility at the core of its design, the patented Griplates (US Patent number 8,035,757 B2) support the flat-panel and hold the display tight on its mounting brackets. Easily level the mount post-installation and use the fine-tune adjustment knobs to help get the display level either after installation or on maintenance calls.

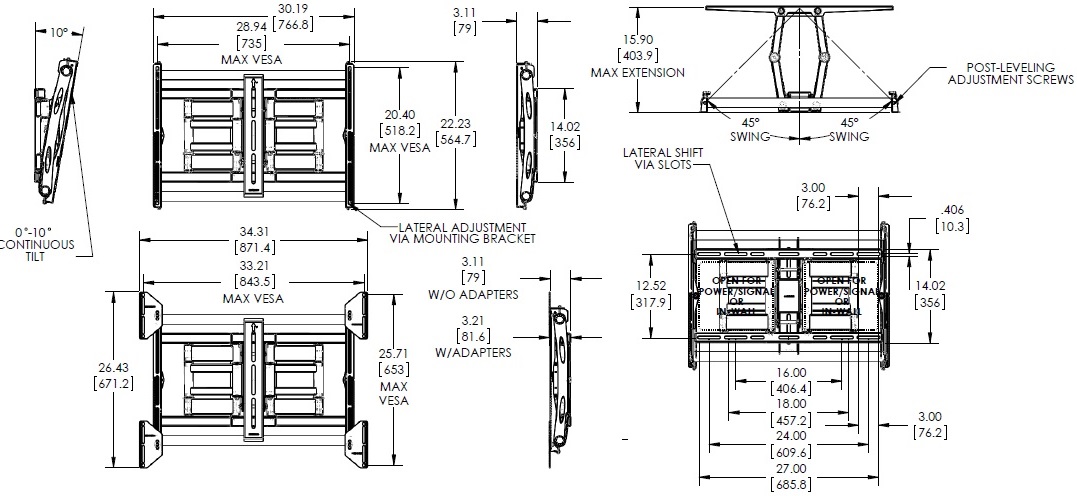

Technical Drawing

Drawing of Premier AM175 Articulating Swingout Wall Mount Arm

Specifications

Color Black
Weight41 lbs (18.6 kg)
Width30.19" (767 mm)
Height22.23" (565 mm)
Depth 5" (127 mm)
Swivel45°
Extension 15.9" (403.9 mm)
Shipping Dimensions33.25" W x 23.75" H x 5" D
Tilt10°
Weight Capacity175 lbs (79.5 kg)
CompatibilityVESA pattern 200 x 200 - 650 x 820

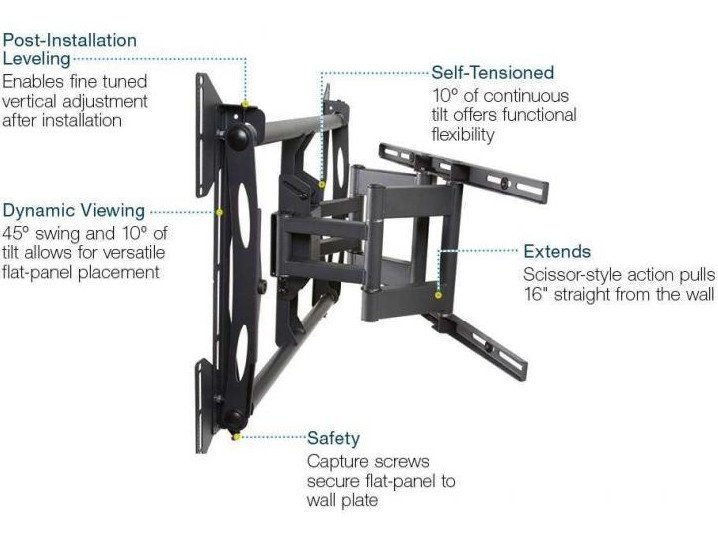

Features

  • Patented Griplate support the flat-panel and holds the display tight on its mounting brackets

  • 10 degree of tilt

  • Up to 45 degree of swivel

  • Pull out arms extend 3.1

  • 15.9 in. from the wall

  • Scissior-style action pulls 15.9 in. from the wall

  • Post-installation leveling enables fine-tune vertical adjustment after installation

Product Options/Accessories

Model AM175
Manufacturer Premier Mounts
Part Number AM175
UPC 829973101671
Weight lb(s)
Weight 41 lbs (18.6 kg)
Width 30.19" (767 mm)
Height 22.23" (565 mm)
Depth 5" (127 mm)
Weight Capacity 175 lbs (79.5 kg)
Tilt 10 degree
Swivel 45 degree
Extension 15.9" (403.9 mm)
Shipping Dimensions 33.25" W x 23.75" H x 5" D
Mounting Pattern VESA 200 x 200 - 650 x 820
