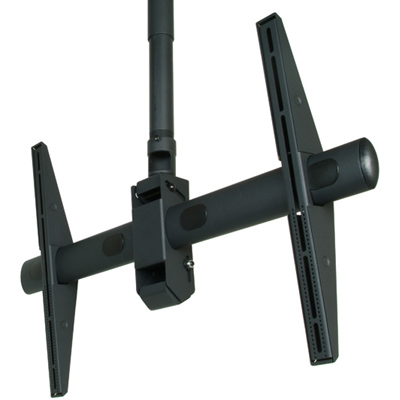

Premier ECM-3763S Single Flat Panel Ceiling Mount

Product ID 16227

Description

Premier ECM-3763S is a ceiling mount made to hold a single flat panel display that weighs up to 175lb. Using 1.5 inch NPT pipe (not included) or a height adjustable pipe adapter the ECM-3763S can sit at a variety of lengths depending on the application. Overhead displays with the backside showing should have a clean and organized look, that's why we engineered the ECM-3763S to have integrated cable management channels to avoid loose wires and power cords.

Speed of installation is important, especially when working from a ladder or scissor lift, that's why the ECM-3763S does not have adapters and is ready to mount straight out of the box. In addition, some applications will require mini PC or digital media players to run content, so we have optional brackets to support these as well.

The ECM-3763S is perfect for digital signage, education, healthcare, hospitality or restaurant applications because of its durable build and lifetime warranty.

Technical Drawing

Technical Drawing for Premier ECM-3763S Single Flat Panel Ceiling Mount

Specifications

Weight 24.4 lbs. (11.1kg)
Width37.2" (945mm)
Height21.32" (541mm)
Depth3.34" (85mm)
Compatibility200mm x 200mm - 875mm x 505mm

Features

  • Perfect for digital signage applications

  • Suspends a single 37"-80"+ display from the ceiling and adapts to 1.5" NPT (pipe not included)

  • 15° continuous tilt

  • Fits up to 875mm x 505mm (W x H) mounting points

  • Integrated cable management keeps your installation clean and uncluttered

  • Mounts display right out of the box. No adapters needed

  • Includes painted "handy box" for AC power outlets

  • No exposed holes, mounting screws or hardware

  • Adapters for signal converters, file servers, and A/V equipment mount directly to frame.

  • Works with the Mac Mini Adapter and the Mini PC adapter (sold separately, see "Related Products" below)

Product Options/Accessories

Model ECM-3763S
Manufacturer Premier Mounts
Part Number ECM-3763S
UPC 829973150792
Weight lb(s)
Color Black
Weight 24.4 lbs (11.1 kg)
Width 37.2" (945mm)
Height 21.32" (541mm)
Depth 3.34" (85mm)
Compatible 200mm x 200mm - 875mm x 505mm
Weight Capacity 175 lbs (79.5 kg)
Warranty Lifetime
Package Dimensions 42.75" x 13.38" x 3.5" (1086 x 340 x 89 mm)
Tilt 15 degree
