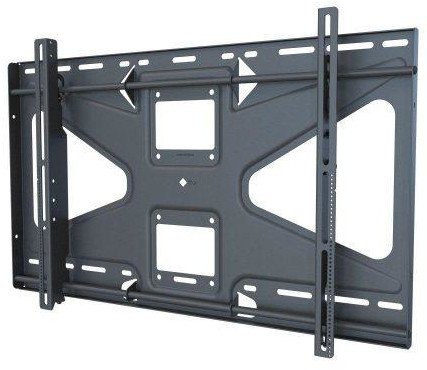

Premier CTM MS2 Tilting Wall Mount up to 63" Flat Panel LED Displays
FeaturesofPremier CTM-MS2:
1. Mounts to walls, floor stands, carts and ceiling adapters.
2. Features patented Clevis technology for effortless tilt.
3. Three vertical height mounting options for carts and stands.
4. Patented Griplate system holds display securely in place
5. Built-in lateral shift.
6. Extensive hardware pack including exclusive universal spacers.
7. Cable and power box access.
8. Now includes PANELOCK theft-resistance system.

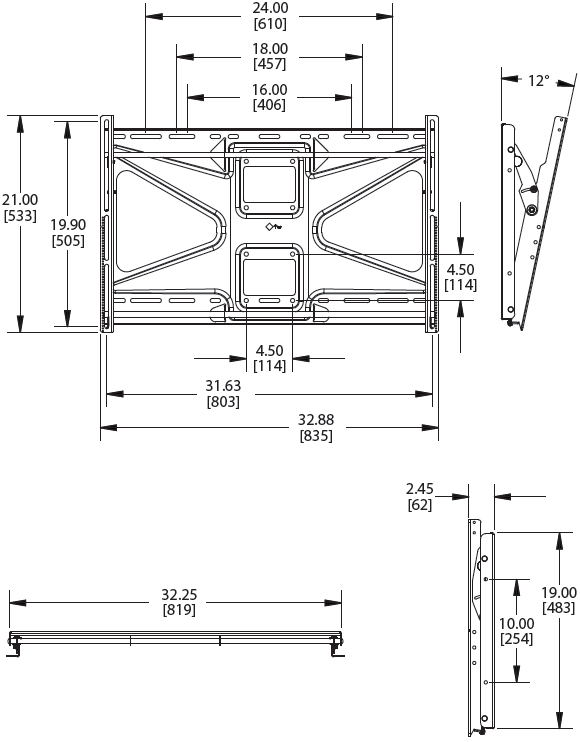

Technical Drawings forPremier CTM-MS2 Tilting Wall Mount up to 63" LCD LED Flat Panel Displays
Description of Premier CTM-MS2:
Our unique lightweight, robust universal mount for carts, stands, ceilings and wall mounted applications feature our innovative Griplate System (patent pending). This exclusive system accurately supports the appropriate mounting hardware with teeth set in detents along mounting bracket.
Specifications:
Color:
Black
Ship Weight:
23 lbs
Display Range:
37" - 63"
Weight Capacity:
175 lbs (79 kg)
Depth:
2.45" (62 mm)
Tilt:
12°
Mounting Patterns:
200 x 200 mm (Min) - 800 x 505 mm (Max)
Frequently Asked Questions:
What if I don't know my mounting pattern? Check the mount locator tool on www.mounts.com to see a list of compatible mounts or select a universal mount, which fits a broader range of mounting points.
How does this mount to a ceiling? of a PSD-S ceiling adapter allows you to attach to any length of 1.5" NPT or adjustable height suspension adapters.
Why would I pick this over the P4263T? The unique bolt pattern found in the center of each CTM Series allows for installation on walls, ceiling adapters or floor stands. The P4263T is meant for wall installation only
