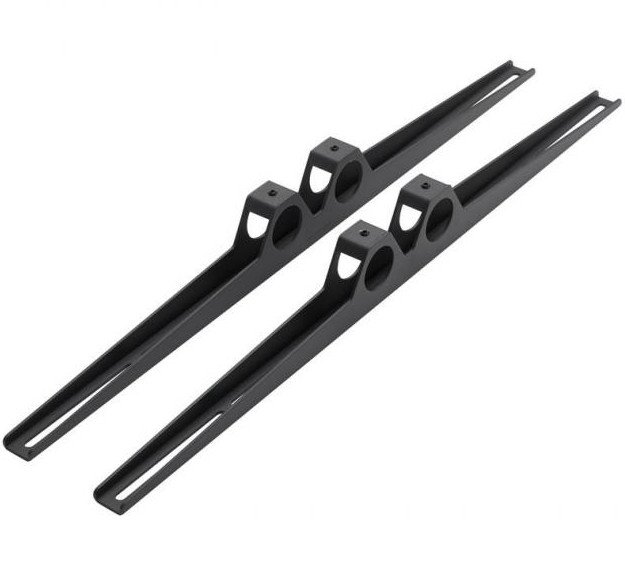

Premier UFA Universal Flat Adapter Mount for Dual-Pole Carts and Stands
Description
Premier UFA universal flat mount is designed to be installed on dual-pole carts and stands. It supports flat-panels up to 160 lb. It typically fits displays larger than 37 in. or with a mounting pattern of 200 x 200 mm - 875 x 875 mm. Security set screws are included in the standard hardware pack.

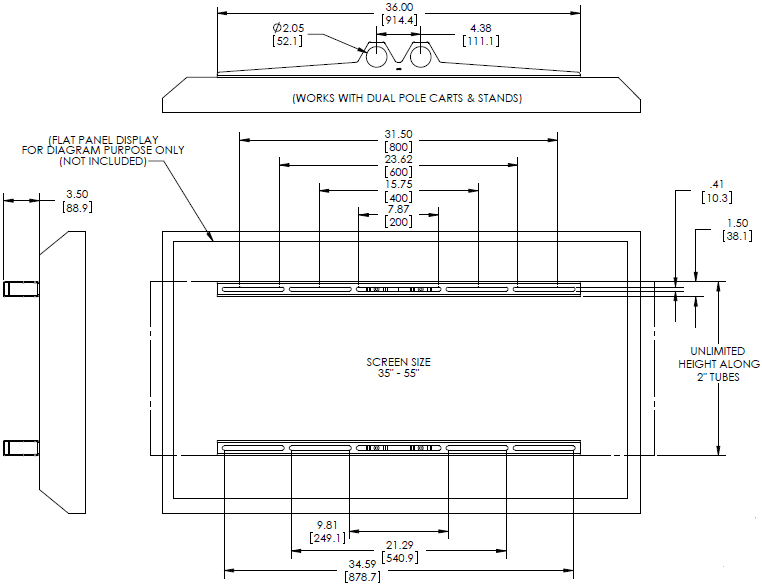

Technical Drawing

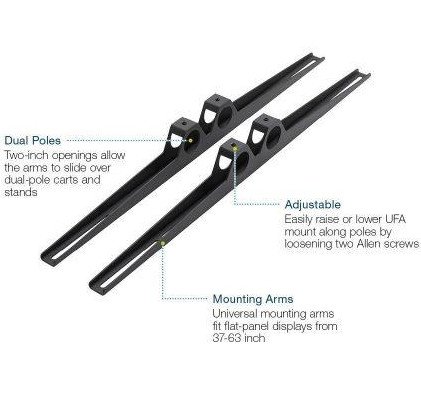

Features
- Security screws securely hold arms fixed in place
- Includes universal mounting hardware
- Dual two-inch openings accommodate dual-pole sets
- Universal mounting arms adjust along poles
- Works with dual-pole carts and stands
Technical Specifications
|
Color |
Black |
|
Weight |
15 lbs (6.8 kg) |
|
Weight Capacity |
160 lbs (72.7 kg) |
|
Width |
36" (914 mm) |
|
Depth |
3.5" (89 mm) |
|
Mounting Pattern |
200 x 200 (min) - 875 x 875 (max) mm |
|
Display Range |
37" - 63" |
Literature (Please open the following documents for more technical information)
|
|
|
|
Dimensional Drawing - Premier UFA Flat Mount for Dual Pole Carts and Stands |
|
|
Installation Manual - Premier Flat Mount for Dual Pole Stands and Carts |
|
- pdf
| Model | UFA |
| Manufacturer | Premier Mounts |
| Part Number | UFA |
| UPC | 829973259143 |
| Weight | 15.00 lb(s) |
| Color | Black |
| Weight | 15 lbs (6.8 kg) |
| Weight Capacity | 160 lbs (72.7 kg) |
| Width | (914 mm) 36 |
| Depth | (89 mm) 3.5 |
| Mounting Pattern | 200 x 200 mm (min) - 875 x 875 mm (max) |
| Monitor Size | 37" - 63" |
