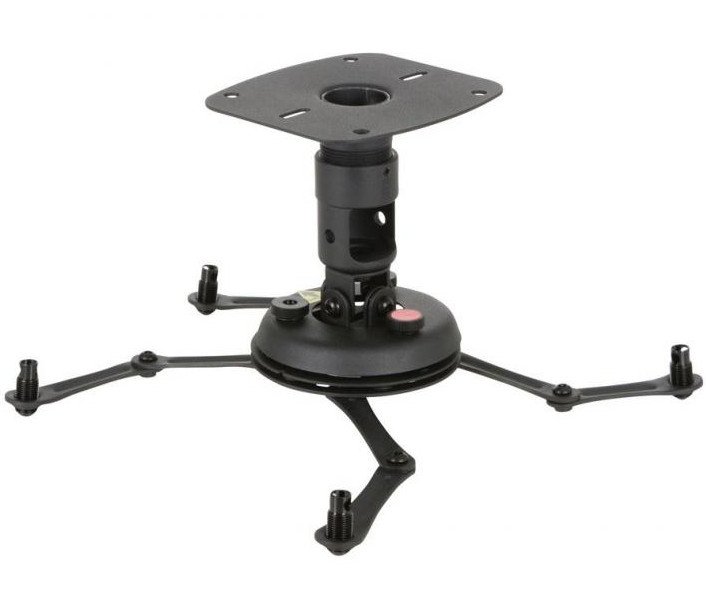

Premier PBC-UMW or PBC-UMS Universal Projector Mount with Integrated Coupler

Product ID 16234
HIGHLIGHTS

Highlights

  • Fits most projectors that weigh up to 60 lb
  • Includes a standard 1.5" NPT coupler and ceiling plate that mounts to a single stud or 4.5" bolt pattern
  • Offers flexible projector positioning
  • Includes a quick-release connector that allows the projector to be installed quickly

Description

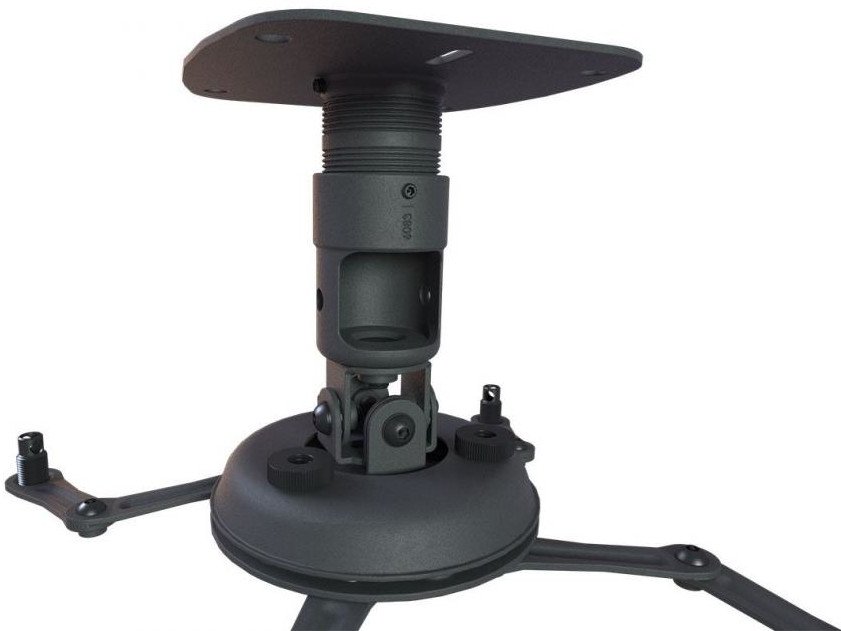

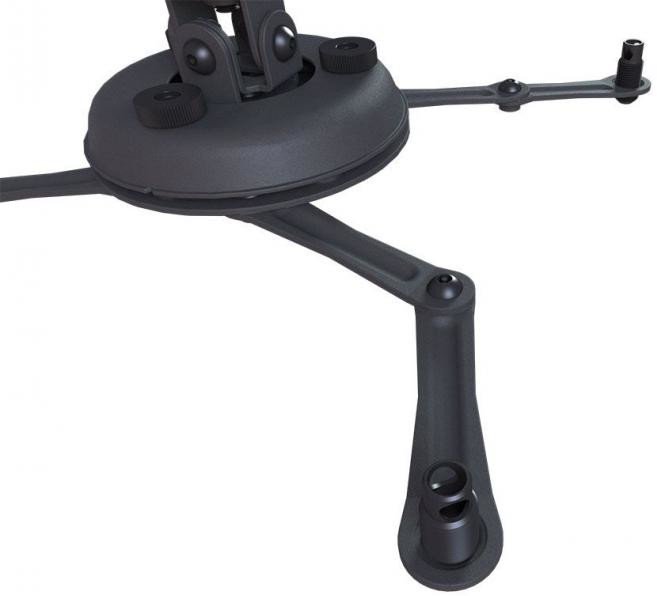

Premier PBC Series of universal projector mounts fit most projectors weighing up to 60lbs. (27.2 kg). It includes a standard 1.5" NPT coupler and ceiling plate that mounts to a single stud or 4.5" bolt pattern. The PBC-UMS offers flexible projector positioning with four patented dual-joint support arms (US Patent number 7,942,375) that can reach almost any mounting point on a projector. It also includes a quick release connector that allows the projector to be installed quickly and then easily released for maintenance, without re-alignment.

Technical Drawing

Technical Drawing for Premier FTP Universal Fine-Tune Projector Mount

Specifications

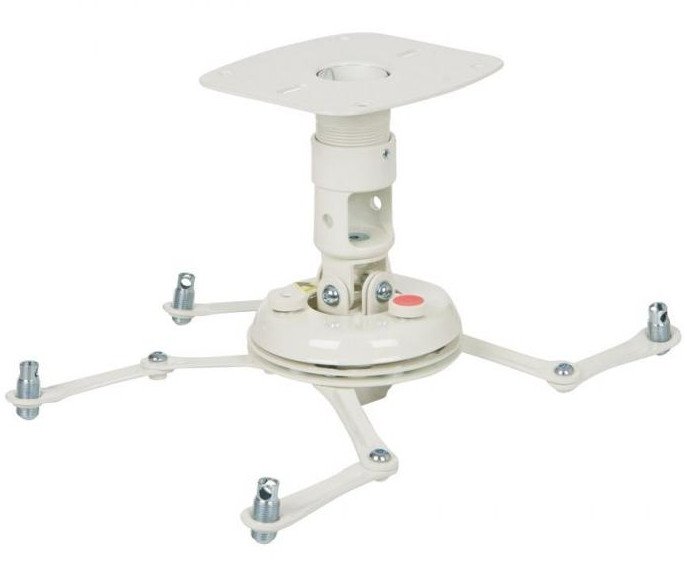

Color Black, White
Weight 7.4 lbs (3.36 kg)
Width10"
Height7.5"
Depth14.5"
Weight Capacity60 lbs (27.22 kg)

Features

  • Mates with standard 1.5" NPT

  • Cable routing inside pipe

  • Comes with ceiling plate and threaded pipe nipple

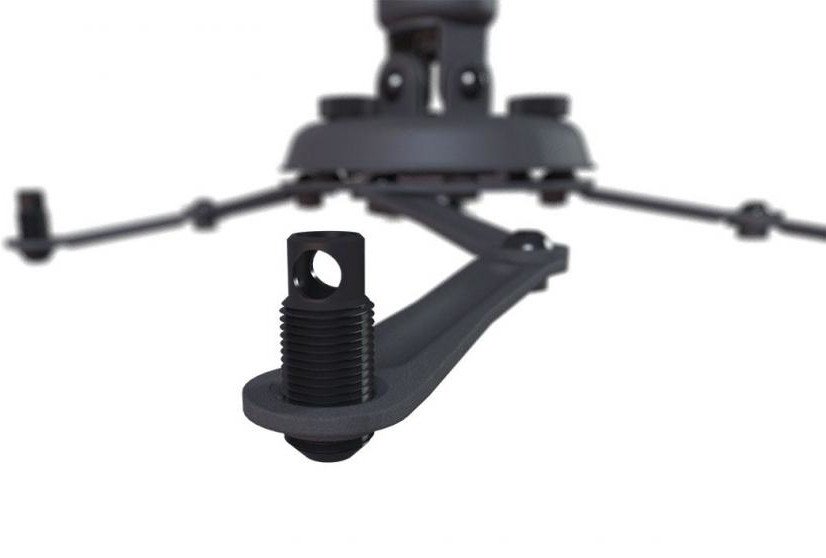

  • Includes four Lock-It security leveling barrels for even greater

  • Tilt/Roll Adjustment: +/- 20 degrees

  • Rotation Adjustment: 360 degrees

Product Options/Accessories

Model PBC-UMW, PBC-UMS
Manufacturer Premier Mounts
Part Number PBC-UMW, PBC-UMS
UPC 829973203047
Weight lb(s)
Mounting Options Ceiling
Color Black, White
Weight 7.4 lbs (3.36 kg)
Height 7.5"
Width 10"
Depth 14.5"
Weight Capacity 60 lbs (27.22 kg)
Diameter 18.95" (481.33 mm)
Warranty Lifetime
Package Dimensions 10" W x 7.5" H x 14.5" D (254 mm x 190.5 mm x 368.3 mm)
