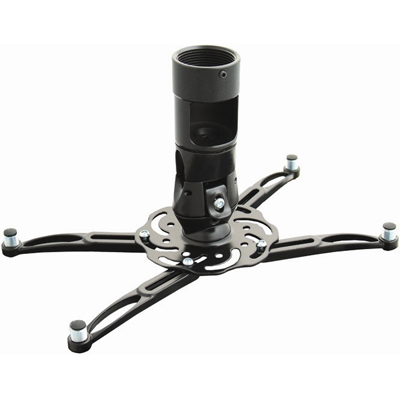

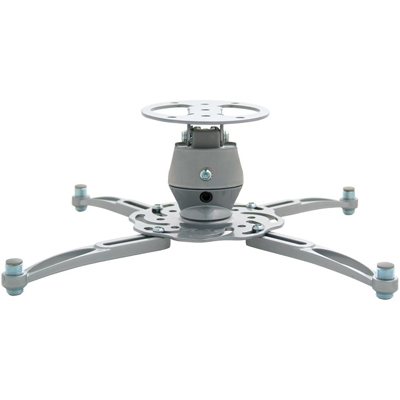

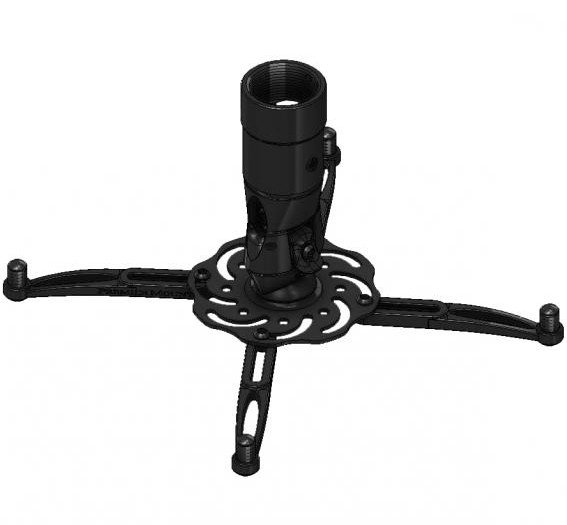

Premier MAG-PRO or MAG-PRO-W Low-Profile Universal Projector Mount

Product ID 16235

Description

Premier MAG-PRO is a universal projector mount that fits most projectors that weigh up to 10 lb. /4.5 kg. A perfect projector mount for education or corporate applications, the MAG-PRO is OSHPD approved and UL listed.

The integrated coupler of the MAG-PRO attaches to a standard 1.5 in. NPT pipe and includes a cable routing port. Our patented MagnaGuide feature reduces installation time by using powerful magnets to easily glide the integrated pipe coupler to the mount. A safety lever locks the two pieces together easily, and Radial Glide allows for up to 6° of smooth tilt adjustment and a simple lock-down screw secures the adjustments.

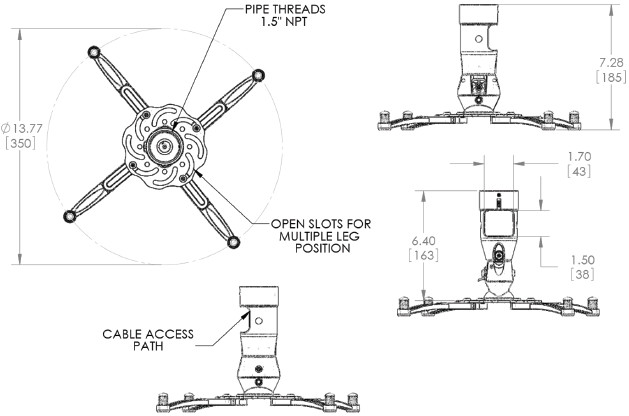

Technical Drawing

Technical Drawing for Premier MAG-PRO or MAG-PRO-W Low-Profile Universal Projector Mount

Specifications

Color Black, White
Weight 4.1 lbs
Width9.5"
Height8.8"
Depth9.5"
Weight Capacity10 lbs (4.5 kg)

Features

  • Integrated coupler mates with standard 1.5" NPT

  • MagnaGuide Technology assists in installation

  • Easy one-person mounting of most projectors up to 10 lbs.

  • Radial Glide Technology provides smooth roll, pitch & yaw

  • Lock-It security hardware deters theft

  • Now includes Lock-It security leveling barrel for even greater

  • OSHPD & DSA approved (OPA-1683-07)

  • +/-6° Pitch and Roll

  • 360° Yaw

  • Powdercoat black finish

Product Options/Accessories

Model MAG-PRO, MAG-PRO-W
Manufacturer Premier Mounts
Part Number MAG-PRO, MAG-PRO-W
UPC 829973200176
Weight lb(s)
Mounting Options Ceiling
Color Black, White
Weight 4.1 lbs (1.86 kg)
Weight Capacity 10 lbs (4.5 kg)
Roll +6 /-6 degree
Pitch +6 /-6 degree
Yaw 360 degree
Height 8.8"
Reach 13.79" (350 mm)
Depth 9.5"
Width 9.5"
Warranty Lifetime
Package Dimensions 18.5" x 12.6" x 17.36" (470 x 320 x 441 mm)
