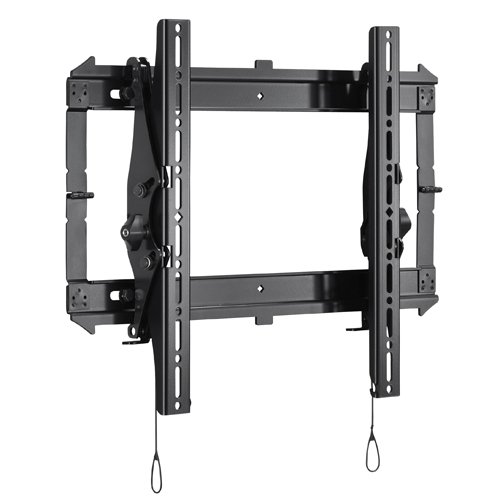

Chief RMT2 Medium FIT Low-Profile Tilt Wall Mount (32-65")

Product ID 16350
Chief RMT2 Medium FIT Low-Profile Tilt Wall Mount (32-65")
Chief RMT2 Medium FIT Low-Profile Tilt Wall Mount (32-65")


Chief RMT2 tilting wall mount features a unique hinged design and low-profile depth.

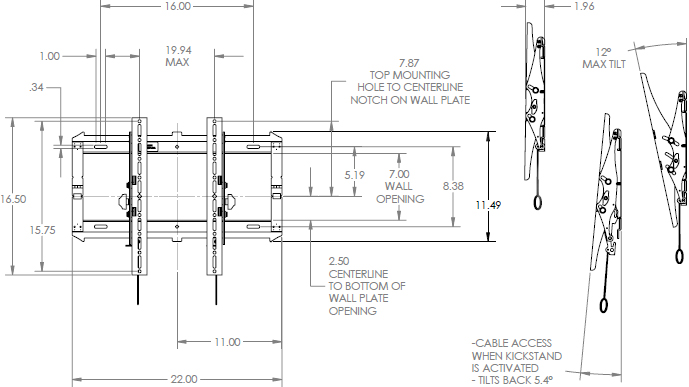

Technical Drawing

Technical Drawing for Chief RMT2 Medium FIT Low Profile Tilt Wall Mount (32-65


Certifications TÜV Certified, UL Listed
Color Black
Lateral Shift Depends on mounting pattern of screen
Maximum Screen Thickness 6"
Minimum Depth 1.96" (49.8mm)
Mounting Pattern Compatibility (Universal Versions) 100 x 100mm - 506 x 400 mm
Number of Monitors 1
Shipping Weight 12.65 lbs (5.74 kg)
Solution Type Universal
Tilt + 0°, - 12°
Typical Screen Sizes 32 - 65"
Wall Stud Compatibility In 16" (406 mm)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape


  • Provides low-profile, fingertip tilt

  • Hinged design reduces packaging material

  • Wide open wall plate allows for easy cable routing and connection

  • GlideLock with Kickstand secures TV to wall plate without tools and includes kickstand for easy cable connection

  • Optional storage box provides a clean installation (PAC525, PAC526)

Model RMT2
Manufacturer Chief Mounts
Part Number RMT2
UPC 841872143040
Color Black
Maximum Screen Thickness 6"
Minimum Depth 1.96" (49.8mm)
Mounting Pattern 100 x 100mm - 506 x 400 mm
Overall Dimensions 16.5" x 22.0" x 2.0" (419 x 559 x 50mm)
Shipping Weight 12.65 lbs (5.74 kg)
Tilt + 0, - 12 degree
Monitor Size 32 - 65"
Wall Stud 16" (406 mm)
Weight Capacity 125 lbs (56.7kg)
Mounting Options Wall
Number of Monitors 1 Monitor
Orientation Landscape
