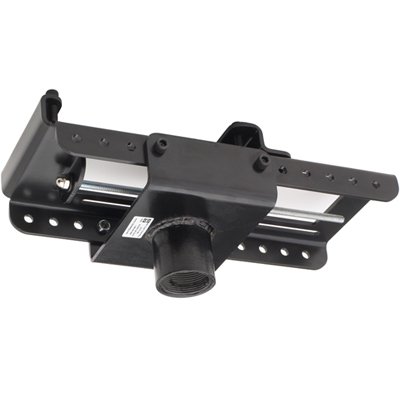

Chief CMA360 I-Beam Clamp

Product ID 16376
Chief CMA360 I-Beam Clamp
Chief CMA360 I-Beam Clamp

Chief CMA-360 I-Beam Clamp


Chief CMA360 adapts a 1.5" NPT column to an I-beam truss from 4"-12" (72-305 mm) width.

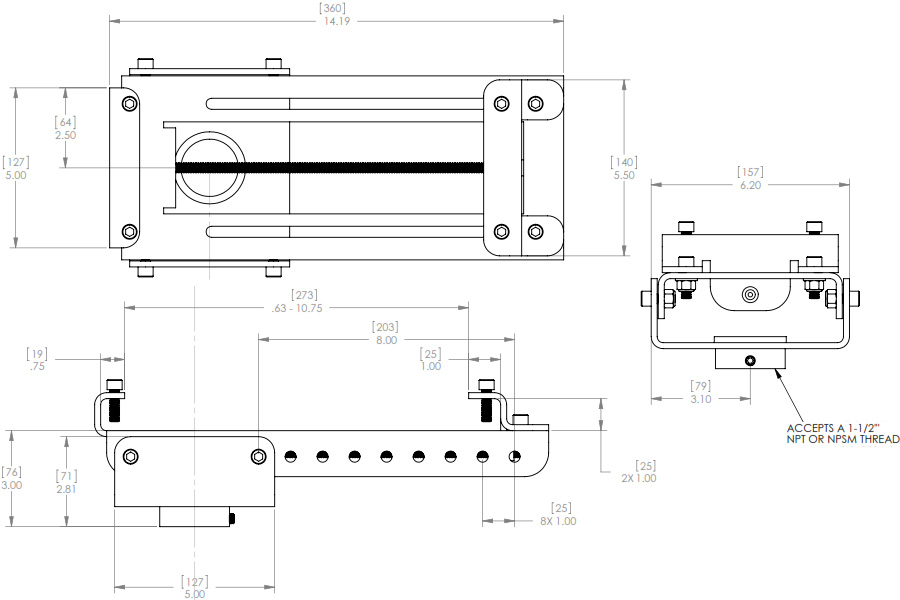

Technical Drawing

Technical Drawing for Chief CMA-360 I-Beam Clamp






TV Certified, UL Listed


TAA Compliant

Overall Dimensions

5.5" x 14.2" x 6.2" (138 x 360 x 157 mm)

Shipping Weight

11.00 lbs

Weight Capacity

250 lbs (113.4 kg)



  • Clamps to I-beams and transitions to vertical extension column
  • TAA Compliant

Product Options/Accessories

Model CMA360
Manufacturer Chief Mounts
Part Number CMA360
UPC 841872002651
Color Black
Overall Dimensions 5.5" x 14.2" x 6.2" (138 x 360 x 157 mm)
Shipping Weight 11.00 lbs
Weight Capacity 250 lbs (113.4 kg)
