Secure Notebook/Laptop Wall Mount Arm, ED-911-96

The laptop is secured by the Double Lockdown Secure Plate. Requires permanent adhesive bonding of attaching hardware to the computer/machine foot-print. If you want to secure the Extension Arms to each other, you need to buy the Secure Screw Kits corresponding to the size of the Extension Arms that you choose. So the Secure Screw Kits are optional. To secure the arm to the wall, you will have to buy security fasteners from third party manufacturers (information at the bottom of the page).

Product ID 16446
Secure Notebook/Laptop Wall Mount Arm, ED-911-96
Secure Notebook/Laptop Wall Mount Arm, ED-911-96


  • Secure Laptop on a Wall Mounting Arm
  • Affordable theft deterrent security for your laptop
  • Protects laptops from fall, breakage
  • Arm has maximum horizontal extension of 12.5"
  • Weight of the double lockdown plate is 7 lbs
  • Plate attaches to laptop with permanent adhesive bonding
  • Provides air circulation/cooling for extended life to laptop bottom
  • Secure laptop plate to the arm with set of screws included
  • Secure extension arms to each other with Secure Screw Kits (optional)
  • Secure entire unit, laptop plate and arm to the wall, with security fasteners from third party manufacturers (included)

Dimensional Diagram for Innovative 9110 Pivoting LCD TV Wall Mount

Secure Laptop Arm ED-911-96



Secure Plate Lockdown Arms associated parts are designed only as theft deterrents, not theft-proof. in no event will be held liable for any loss or damage including without limitation, indirect or consequential loss or damage, or any loss or damage whatsoever arising from loss of data or profits arising out of or in connection with the use of this product.


Related Parts

Pivoting Wall Mount with 4" Extension Arm
Pivoting Wall Mount with 8.5" Extension Arm
Pivoting Wall Mount with 8.5" + 4" = 12.5" Extension Arm
M4 x 12mm pin in hex screws
100 degree 10-32 x 3/8 pin in hex flat head screw
Double Plate Secure Mount System



Notebook or Laptop Secure Arm Wall Mount

Pivoting Wall Mount Arm

Adjustable tension at joints. The display can tilt up and down 30° or left and right 30°

Double Lockdown Plate Arm Mount

High secure solution at modest cost.  Mounted to the arm using tamperproof hardware

Screws to secure notebook plate to secure arm
Height = ¼"
Threads per inch = 20
Head size = 10
Secure Screw Kits

Hex screws



Lockdown Plate Components

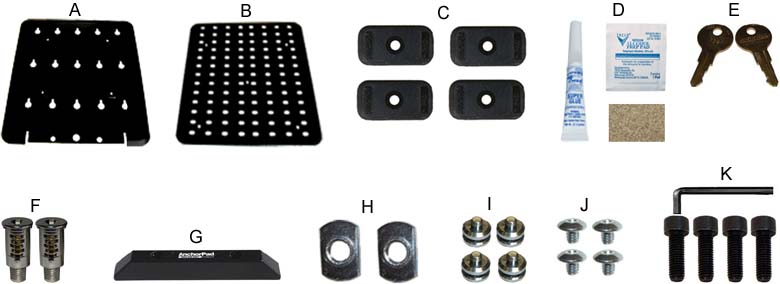

Components of AnchorPad 34196ARM Double Lockdown Plate


  • A – 1 11-in x 10-in base plate with black foam on the underside
  • B – 1 adapter plate
  • C – 4 adapter feet, rectangular
  • D – 1 glue pack (3-gm tube of glue, cleaning pad, sandpaper square)
  • E – 2 keys
  • F – 2 wafer locks
  • G – 1 lockblock
  • H – 4 couplings
  • I – 4 screws
  • J – 4 tamper proof screws, 1 tamper proof bit



Secure your arm to the wall

You can find secure wall screws from independent manufacturers such as or However, we are not responsible for the functionality, security or provide products warranty.

Tamperproof Screws


Bryce Fastener Screws

Product Options/Accessories

Frequently Asked Questions

q What is the weight limit on this model?

This can hold up to 10 lbs.

Model ED-911-96
Manufacturer AnchorPad
Part Number ED-911-96
Mounting Options Wall
