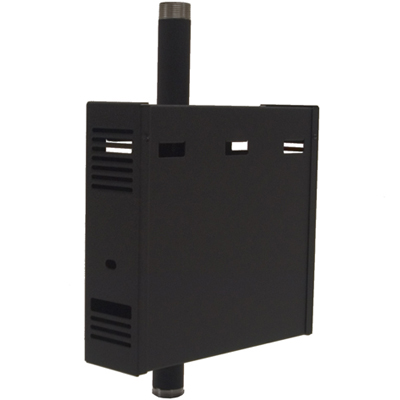

Chief CMA170 or CMA170W In-Ceiling Storage Enclosure

Chief CMA170 clamps directly to 1.5" NPT columns

Product ID 16547

Chief CMA170 In-Ceiling Storage Enclosure - Ceiling Mount with CPU Storage


Chief CMA170 CPU storage accessory can be used to store several different types of equipment in your projector ceiling installation. Safely conceal an store your AV equipment.

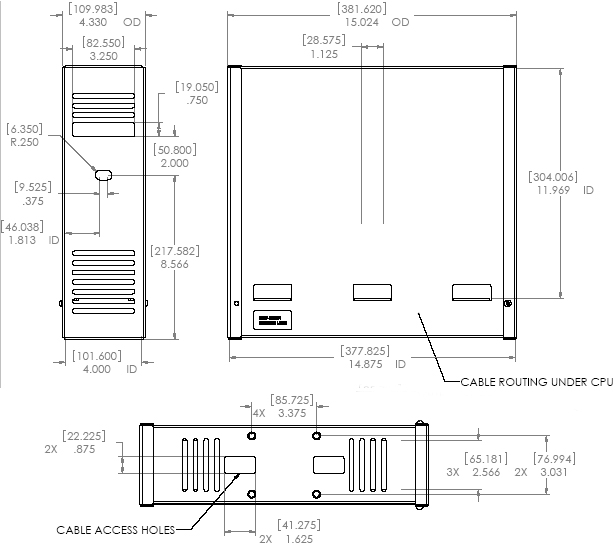

Technical Drawing

Technical Drawing for Chief CMA170 In Ceiling Storage Enclosure CMA-170




Black, White

Overall Dimensions (H x W x D)

14.3" x 4.3" x 15.2" (362 x 110 x 386 mm)

Shipping Weight

21.00 lbs

Weight Capacity

25 lbs (11.3 kg)



  • Provides storage for small form factor CPUs or other types of equipment
  • Clamps directly to 1.5" NPT columns
  • Ideal for new or retrofit installations
  • Multiple integrated cable pathways for easy installation

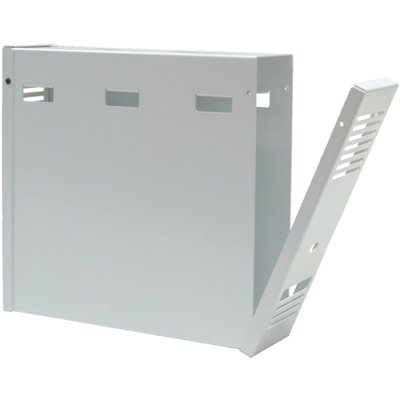

  • Provides easy access with two hinging, removable covers

Product Options/Accessories

Model CMA170, CMA170W
Manufacturer Chief Mounts
Part Number CMA170, CMA170W
UPC 841872103341
Color Black, White
Overall Dimensions 14.3" x 4.3" x 15.2" (362 x 110 x 386 mm)
Shipping Weight 21.00 lbs
Weight Capacity 25 lbs (11.3 kg)
