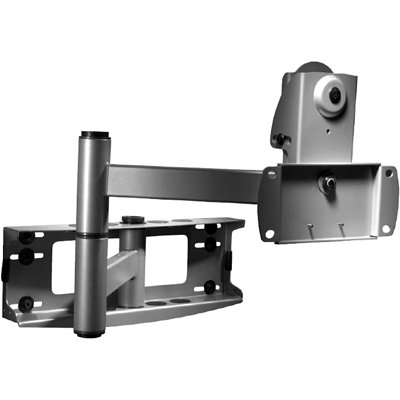

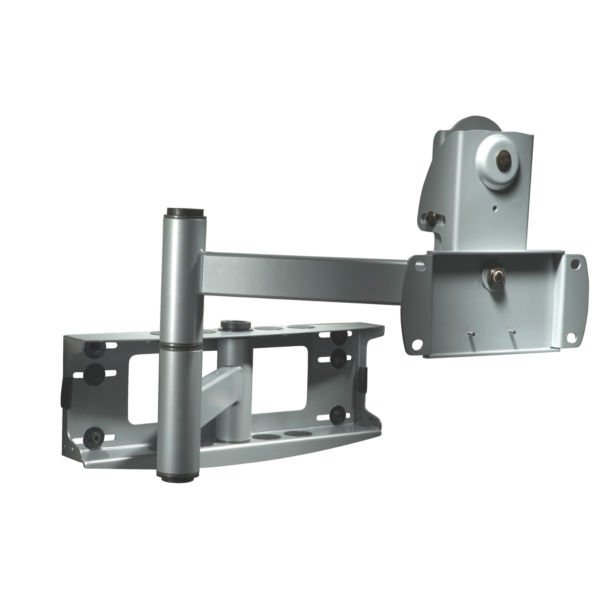

Peerless PLA50 Dedicated Articulating Wall Arm for 37-80" TV's Security

Product ID 16653

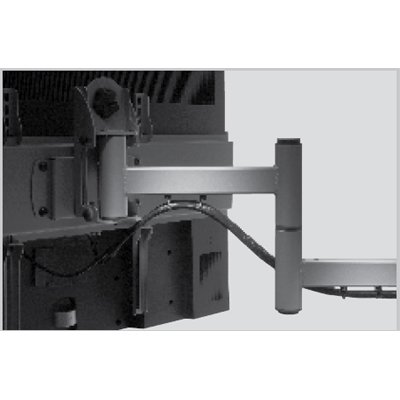

  • Includes mesh cord sheath and cable ties to neatly manage cables

  • Five horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement

  • Universal models adapt to displays with mounting hole patterns up to 730 x 433mm (28.75"W x 17.05"H)

  • Arm extends up to 30.52" (775mm) from wall

  • Three adjustable pivot points with up to 180° swivel for versatile display positioning

  • +10/-5° of tilt

  • ±7° of roll for post installation display leveling


Offer the best view in the room with ability to swing, tilt or articulate the most popular sizes of displays. Self-lubricating bushings enable the arms to smoothly extend, while adjustable tilt and pivot position the display to the optimal viewing angle. Peerless PLA50 offers versatility for the most popular sizes of display in a wide range of installations in lobbies, hotel rooms, boardrooms, public displays or home theaters.

Technical Drawing

Technical drawing for
Peerless PLA50 PLA Series Articulating Wall Arm for 37-80


Color Black
Finish Powder Coat
Minimum to Maximum Screen Size

37" to 80"

Weight Capacity 150 lbs (68.0kg)
Distance from Wall

4.5 - 29.3" (114 - 744mm)


+7 / -7 degree

Security Features Both Security and Non-Security Hardware
Swivel Yaw +90 / -90 degree
Tilt +10 / -5 degree
Package Contents
  • Articulating arm
  • Wall plate
  • Mesh cord sheath
  • Cable ties and mounting hardware
Product Dimensions

19.75" x 18.70" x 4.50"-29.30" (501 x 474 x 114-744mm)

Product Weight 24.3 lbs (11kg)
Shipping Dimensions

23.13" x 17.13" x 7.38" (587 x 434 x 188mm)

Shipping Weight 28.5 lbs (12.9kg)
UPC Code 735029243229
Model PLA50
Manufacturer Peerless Mounts
Part Number PLA50
UPC 735029243229
Color Black
Finish Powder Coat
Monitor Size 37" to 80"
Weight Capacity 150 lbs (68.0kg)
Distance From Wall 4.5 - 29.3" (114 - 744mm)
Roll +7 / -7 degree
Swivel +90 / -90 degree
Tilt +10 / -5 degree
Dimensions 19.75" x 18.70" x 4.50"-29.30" (501 x 474 x 114-744mm)
Weight 24.3 lbs (11kg)
Shipping Dimensions 23.1" x 17.1" x 7.4" (587 x 434 x 188mm)
Shipping Weight 28.5 lbs (12.9kg)
Warranty Limited 5 year
Number of Monitors 1 Monitor
Mounting Options Wall
