$469.00

Peerless PLA60 Dedicated Articulating Wall Arm for 37-95" TV's Security

Product ID 16654
HIGHLIGHTS
Peerless PLA60 Dedicated Articulating Wall Arm for 37-95" TV's Security
Peerless PLA60 Dedicated Articulating Wall Arm for 37-95" TV's Security

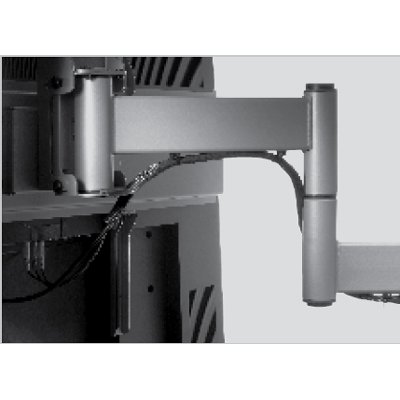

Cable Management
Peerless PLA60 Dedicated Articulating Wall Arm for 37-95" TV's Security
Peerless PLA60 Dedicated Articulating Wall Arm for 37-95" TV's Security
Peerless PLA60 Dedicated Articulating Wall Arm for 37-95" TV's Security
Cable Management
Peerless PLA60 Dedicated Articulating Wall Arm for 37-95" TV's Security

Highlights

  • Includes mesh cord sheath and cable ties to neatly manage cables

  • Five horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement

  • Universal models adapt to displays with mounting hole patterns up to 730 x 433mm (28.75"W x 17.05"H)

  • ±1" (24mm) vertical adjustment located within reach behind display with PLAV60 models

  • +10/-5° of tilt

  • ±7° of roll for post installation display leveling

  • Three pivot points with up to 180° swivel for versatile display positioning

  • Arm extends up to 32.37" (822mm) from wall

Description

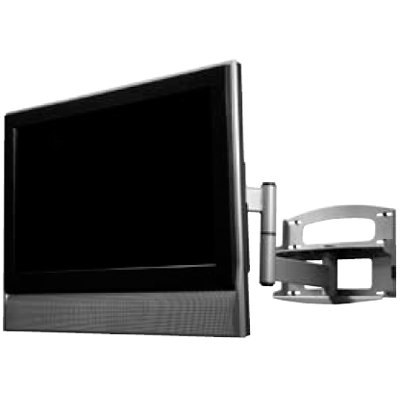

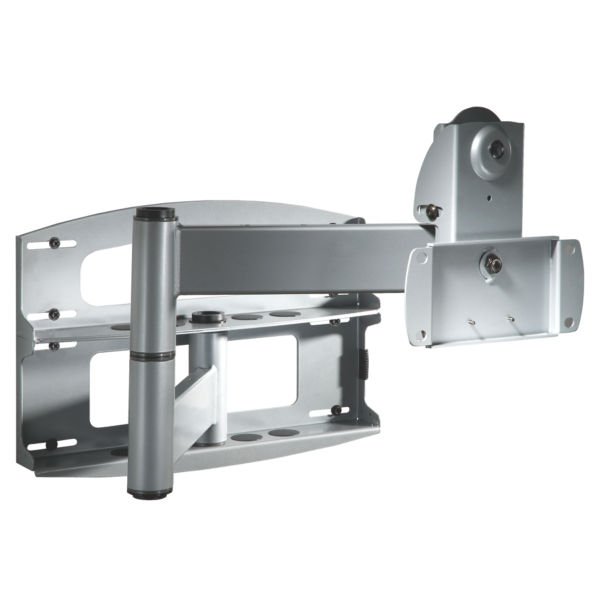

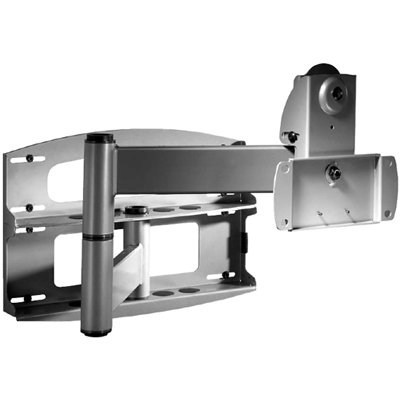

Peerless PLA60 offers a single solution for displays up to 95" in a wide range of installations including lobbies, hotel rooms, boardrooms, public displays or home theaters. Its all-steel construction enables it to hold screens up to 175lb, while its self-lubricating bushings enable the arms to smoothly articulate and position your display for optimal viewing. Combined with adjustable tilt and pivot capabilities, the PLA60 is the only wall arm you need.

Technical Drawing

Technical drawing for
Peerless PLA60 PLA Series Articulating Wall Arm for 37-95

Specifications

Color Black
Finish Powder Coat
Minimum to Maximum Screen Size

37" to 95"

Weight Capacity

175 lbs (79.0kg)

Distance from Wall

4.50 - 31.20" (114 - 792mm)

Roll

+7 / -7 degree

Security Features Both Security and Non-Security Hardware
Swivel Yaw +90 / -90 degree
Tilt +10 / -5 degree
Package Contents
  • Articulating arm
  • Wall plate
  • Mesh cord sheath
  • Cable ties and mounting hardware
Product Dimensions

19.75" x 19.12" x 4.50"-31.20" (502 x 486 x 114-792mm)

Product Weight 30 lbs (13.6kg)
Shipping Dimensions

23.1" x 17.1" x 7.4" (587 x 434 x 188mm)

Shipping Weight 34.1 lbs (15.4kg)
UPC Code 735029243205
Model PLA60
Manufacturer Peerless Mounts
Part Number PLA60
UPC 735029243205
Color Black
Finish Powder Coat
Monitor Size 37" to 95"
Weight Capacity 175 lbs (79.0kg)
Distance From Wall 4.50 - 31.20" (114 - 792mm)
Roll +7 / -7 degree
Swivel +90 / -90 degree
Tilt +10 / -5 degree
Dimensions 19.75" x 19.12" x 4.50"-31.20" (502 x 486 x 114-792mm)
Weight 30 lbs (13.6kg)
Shipping Dimensions 23.1" x 17.1" x 7.4" (587 x 434 x 188mm)
Shipping Weight 34.1 lbs (15.4kg)
Warranty Limited 5 year
Number of Monitors 1 Monitor
Mounting Options Wall
