Ergotron 97-615 Tall-User Kit for WorkFit Dual

Product ID 16658
HIGHLIGHTS

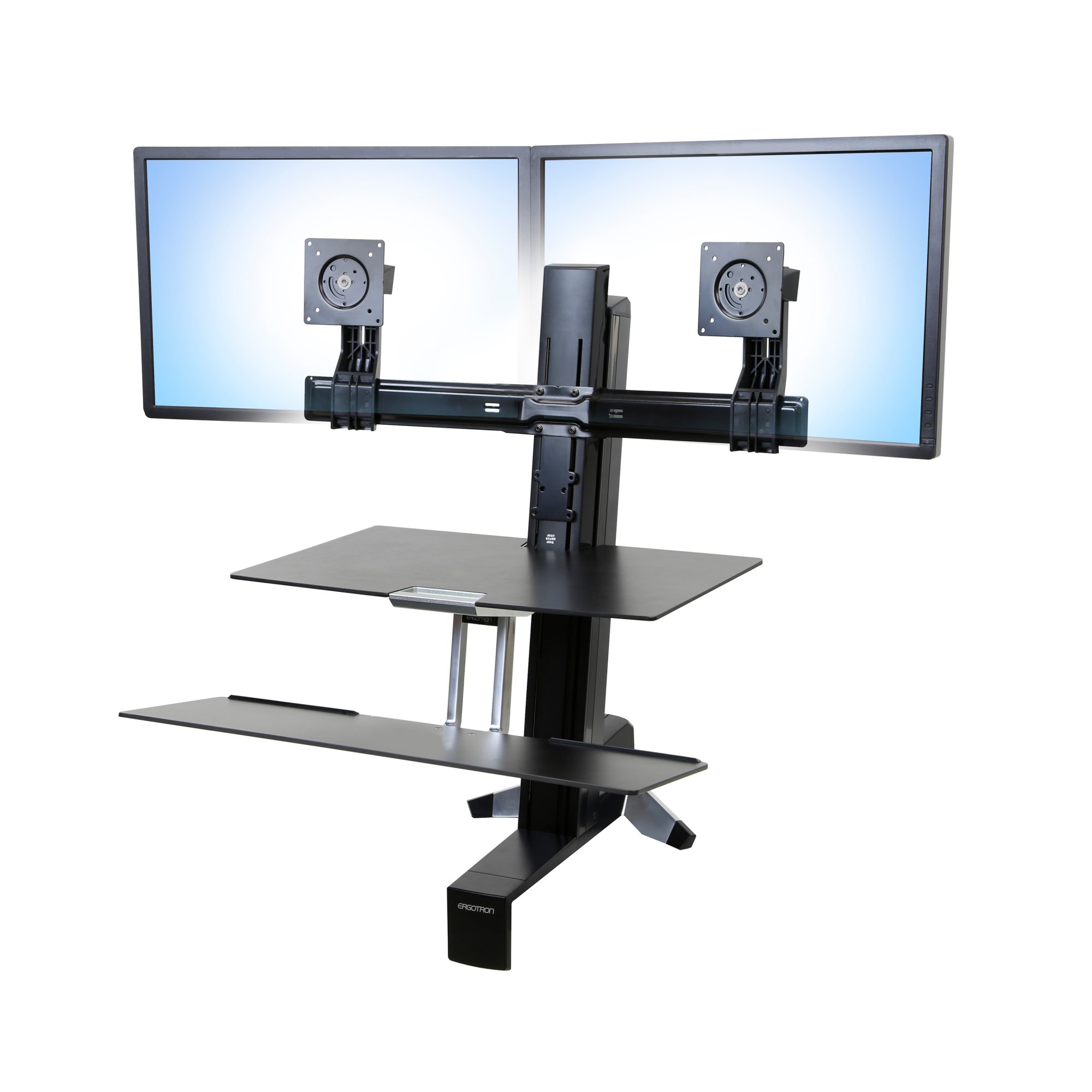

Ergotron 97-615 Tall-User Kit for WorkFit Dual
Technical drawing
Ergotron 97-615 Tall-User Kit for WorkFit Dual
parts
Ergotron 97-615 Tall-User Kit for WorkFit Dual
Ergotron 97-615 Tall-User Kit for WorkFit Dual
Technical drawing
Ergotron 97-615 Tall-User Kit for WorkFit Dual
parts
Ergotron 97-615 Tall-User Kit for WorkFit Dual

Highlights

  • An accessory: For WorkFit-S, WorkFit-A or WorkFit-C Dual Monitor Workstations
  • For Tall Users: Adds height, 1-5" to workstations to make them ergonomic for taller users
  • Added flexibility: Also adds up/down tilting ability to the displays
  • Screen size: Carries displays with up to 22" screen size  (maximum outside width of display is 21.25", depending on the thickness of the monitor)
  • Weight: Reduce the weight of the Tall-User kit (3.81 lbs) from its weight capacity (28 lbs) or the weight capacity of the WorkFit workstation, whichever is lower, to determine the maximum weight of the monitors to be mounted
  • Please see, if you want to install a Tall-User kit for a single monitor workstation

Description

Ergotron 97-615 is an accessory tool that adds height to a WorkFit-S or WorkFit-C Dual Display Workstation to make them ergonomic for taller users. It also upgrades a standard WorkFit Dual by adding up/down tilt to the displays.

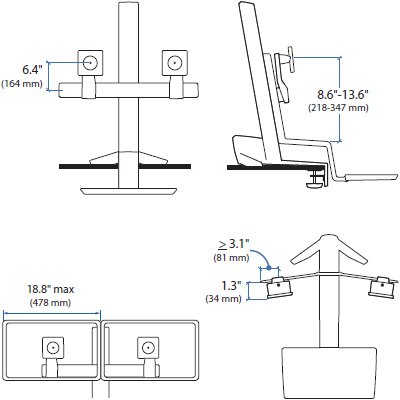

Technical Drawing

Technical drawing for Ergotron Tall User Kit for WorkFit Dual

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

12 - 28 lbs

5.4 - 12.7 kg

- 30° - 360° MIS-D

Product Information

GTIN 00698833018561
Part Number 97-615
Product Weight 3.0 lbs
Shipping Weight 3.8 lbs
Description Tall-User Kit for WorkFit Dual

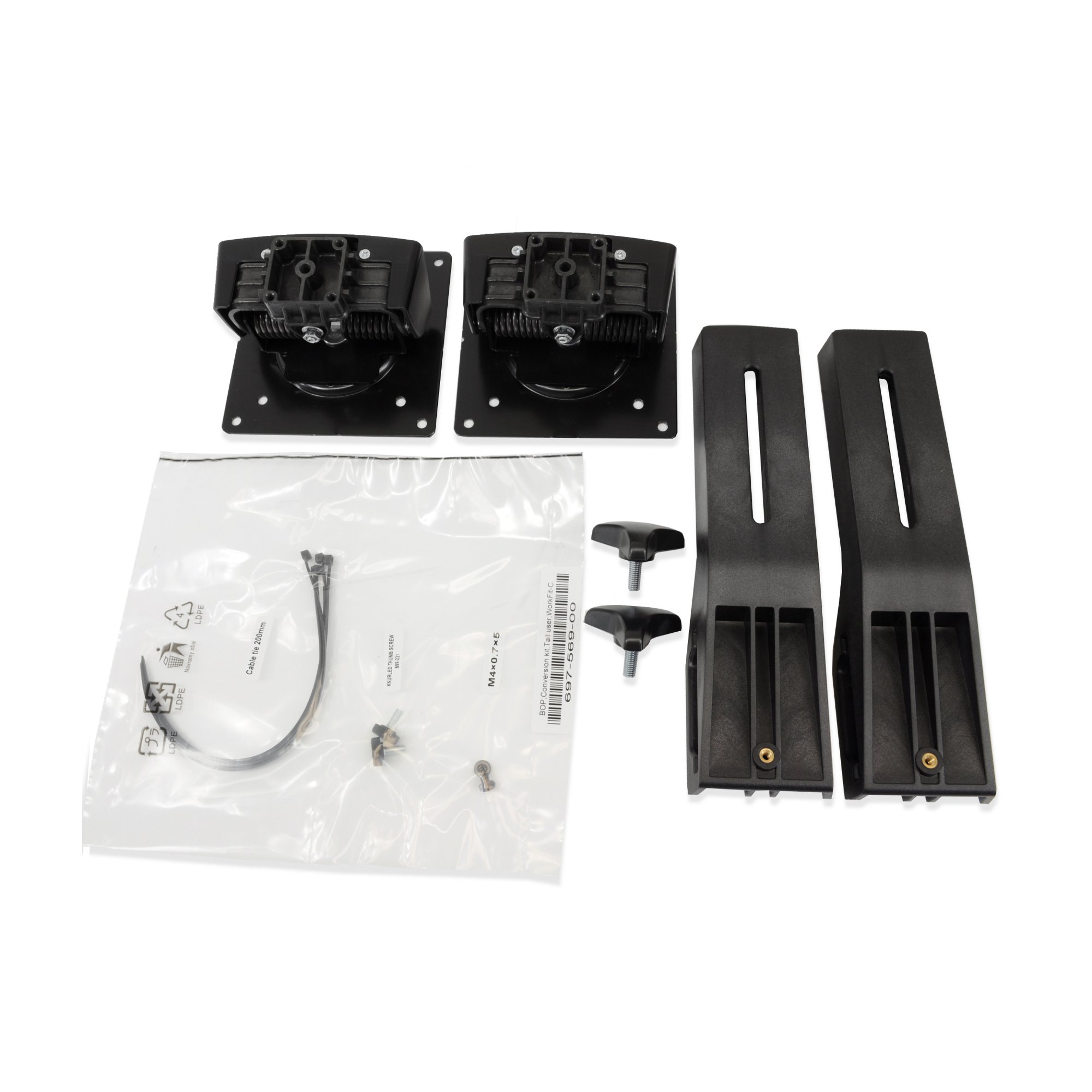

Includes
  • 2 monitor pivots
  • 2 riser brackets
  • mounting hardware
  • Compatible With WorkFit-S, WorkFit-A and WorkFit-C Dual Workstations along with the Dual Monitor Kit accessory for WorkFit-T and WorkFit-TL
    Maximum outside width of Display Is 24.5" (62 cm) when display is 2" (5 cm) thick. Accommodates most displays with screen-size up to 24" as well as some displays with screens as large as 26". Actual allowable width of displays will vary slightly depending on display thickness
    Weight Capacity 6-14 lbs (2.7-6.3 kg) per display, 12-28 lbs (5.5-12.7 kg) combined
    Mounting StandardsVESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
    Shipping Dimensions 22" x 6.5" x 5.1" (56 x 16.5 x 13 cm)
    Warranty Five (5) years

    Benefits

    • Accommodate the height needs of tall users and improve the ergonomics of your workstation for prolonged sitting or standing applications.
    • Easy to use - simple installation and effortless operation.
    • Adds 30° of up/down tilt to displays.

    Product Options/Accessories

    Model 97-615
    Manufacturer Ergotron
    Part Number 97-615
    UPC 698833018561
    Weight Capacity 6-14 lbs (2.7-6.3 kg) per display, 12-28 lbs (5.5–12.7 kg) combined
    Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
    Warranty Five (5) years
    Tilt 30 degree
    Rotation 360 degree
    Weight 3 lbs
    Shipping Weight 3.8 lbs
    Shipping Dimensions 22" x 6.5" x 5.1" (56 x 16.5 x 13 cm)
    Compatible WorkFit-S, WorkFit-A and WorkFit-C Dual Workstations along with the Dual Monitor Kit accessory for WorkFit-T and WorkFit-TL
    Screen Size Up to 24 in
