Innovative 9105-XHD Extra Heavy Duty (69.1 lb) LCD Monitor Arm

20 business days lead time.

Product ID 16713

Innovative FLEXmount

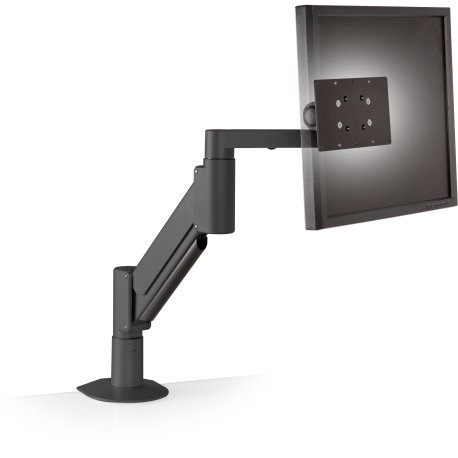

As an extremely strong monitor arm, Innovative 9105-XHD is ideal for large touch screen monitors and radiology units. The monitor mount suspends large monitors up to 69 lbs.

Model 9105-XHD is a powerful monitor arm capable of supporting computer monitors up to 69 lbs. The mount floats the monitor above the work surface from one point on the desk where it can be easily repositioned.

This is an extremely durable steel monitor arm with guaranteed years of use. The monitor mount includes a special heavy-duty monitor tilter for effortless monitor motion. This monitor arm includes a specially reinforced FLEXmount, which provides options for clamping or bolting the monitor arm to a desk or counter.

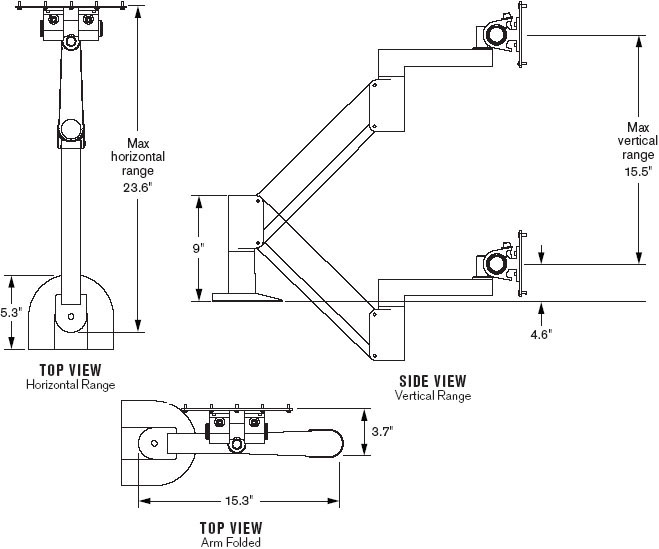

Technical Drawing

Technical Drawing for Innovative 9105-XHD Extra Heavy Duty (69.1 lb) LCD Monitor Arm

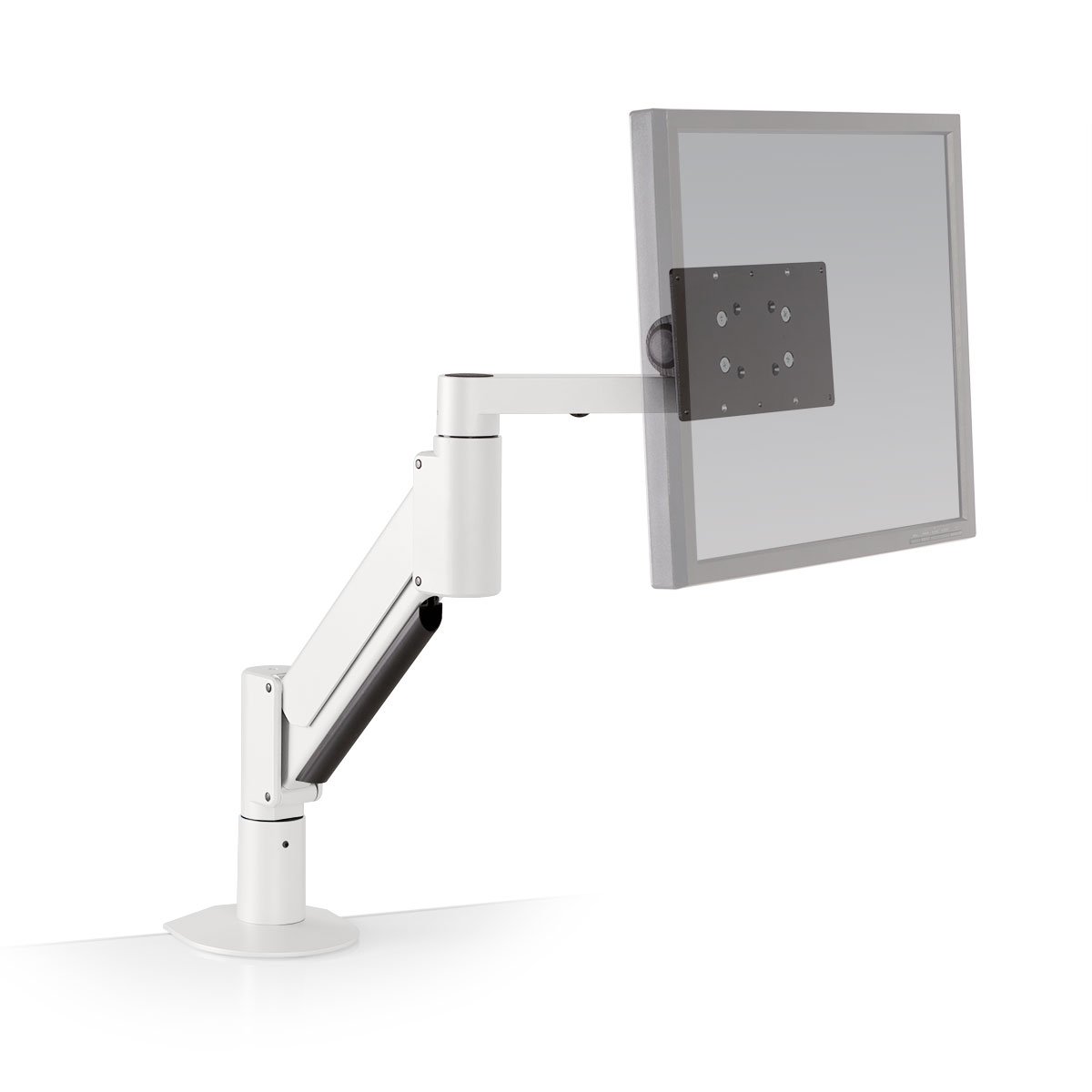

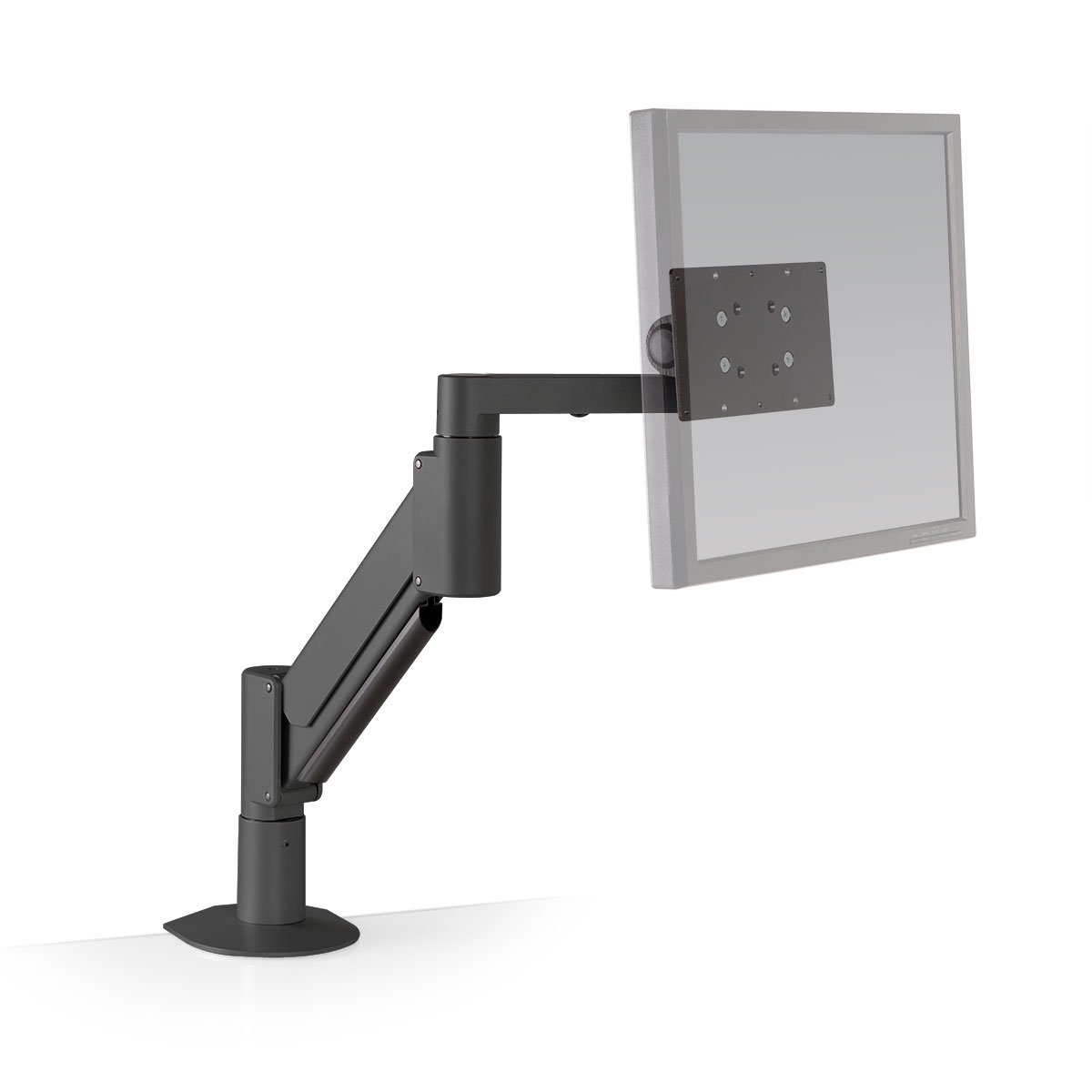

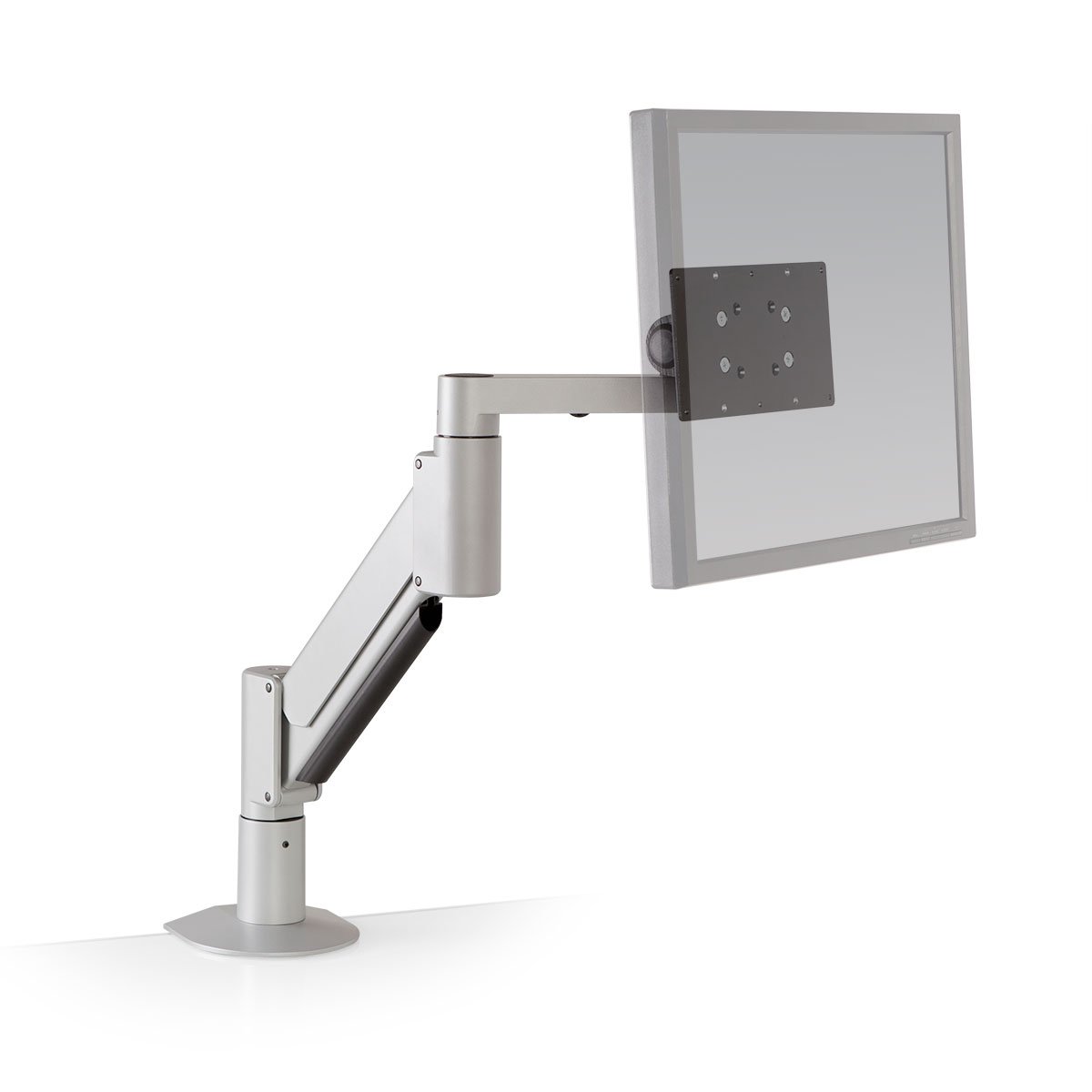

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Screen Size Up to 32"
Extension Range 24"
Height Adjustment 15.5"
Rotation 360 degrees at three joints
Total Diameter of the Mount Cup 2.25"
The Inner Diameter of the Mount Cup 1 3/16"
Monitor Tilt 200 degrees
Cable Management Cables are clipped beneath arm
Mount Configurations Desk Edge, Thru-Desk, Grommet, Side Bolt
VESA Compatibility 100mm x 200mm, 200mm x 200mm or 200mm x 400mm (specify when ordering)
Weight Capacity 35.5 - 69.1 lbs (16.1 - 31.3 kg)
Warranty 10 years


  • The monitor arm is extremely durable, made of heavy-duty steel construction

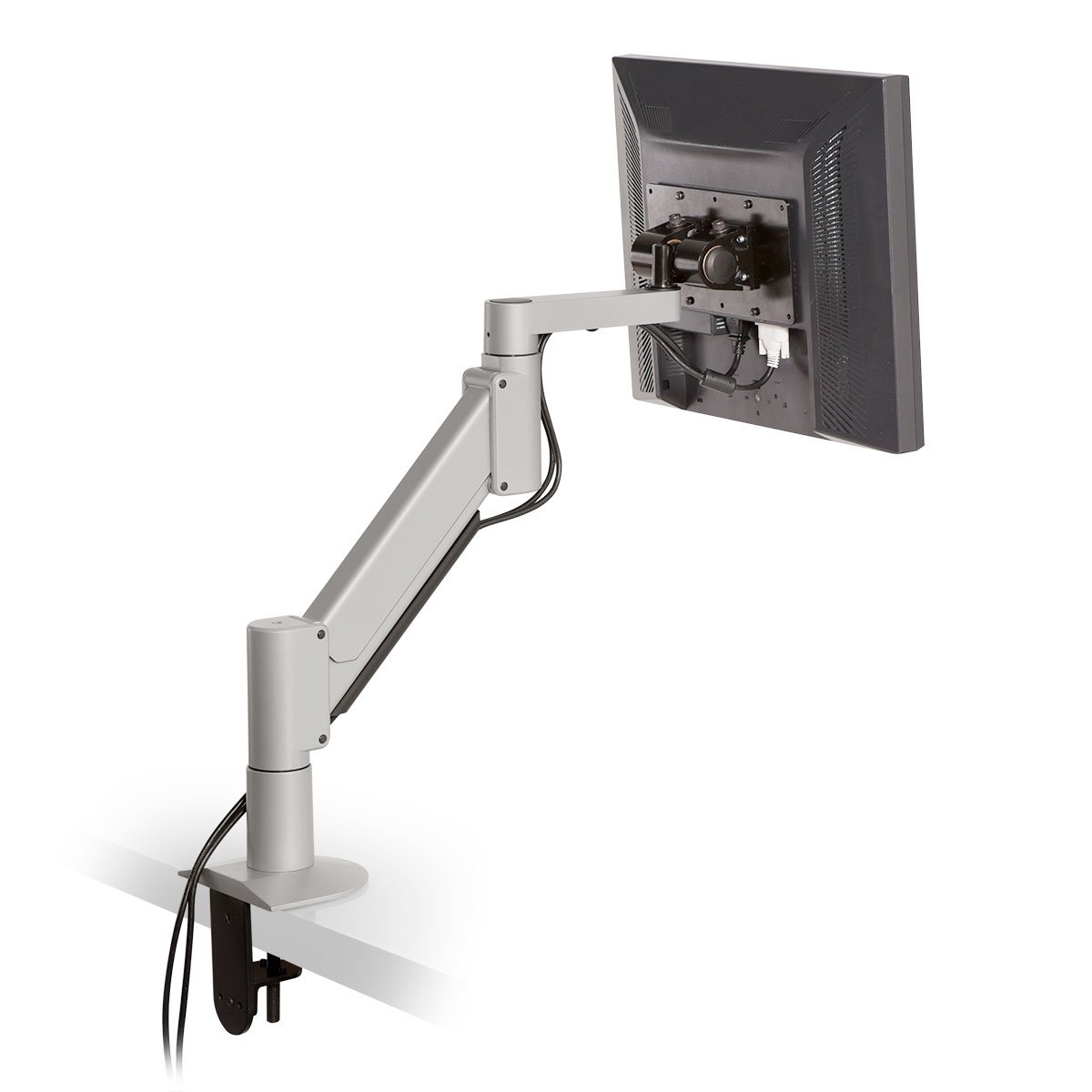

  • Cable management keeps cables tucked beneath the monitor arm

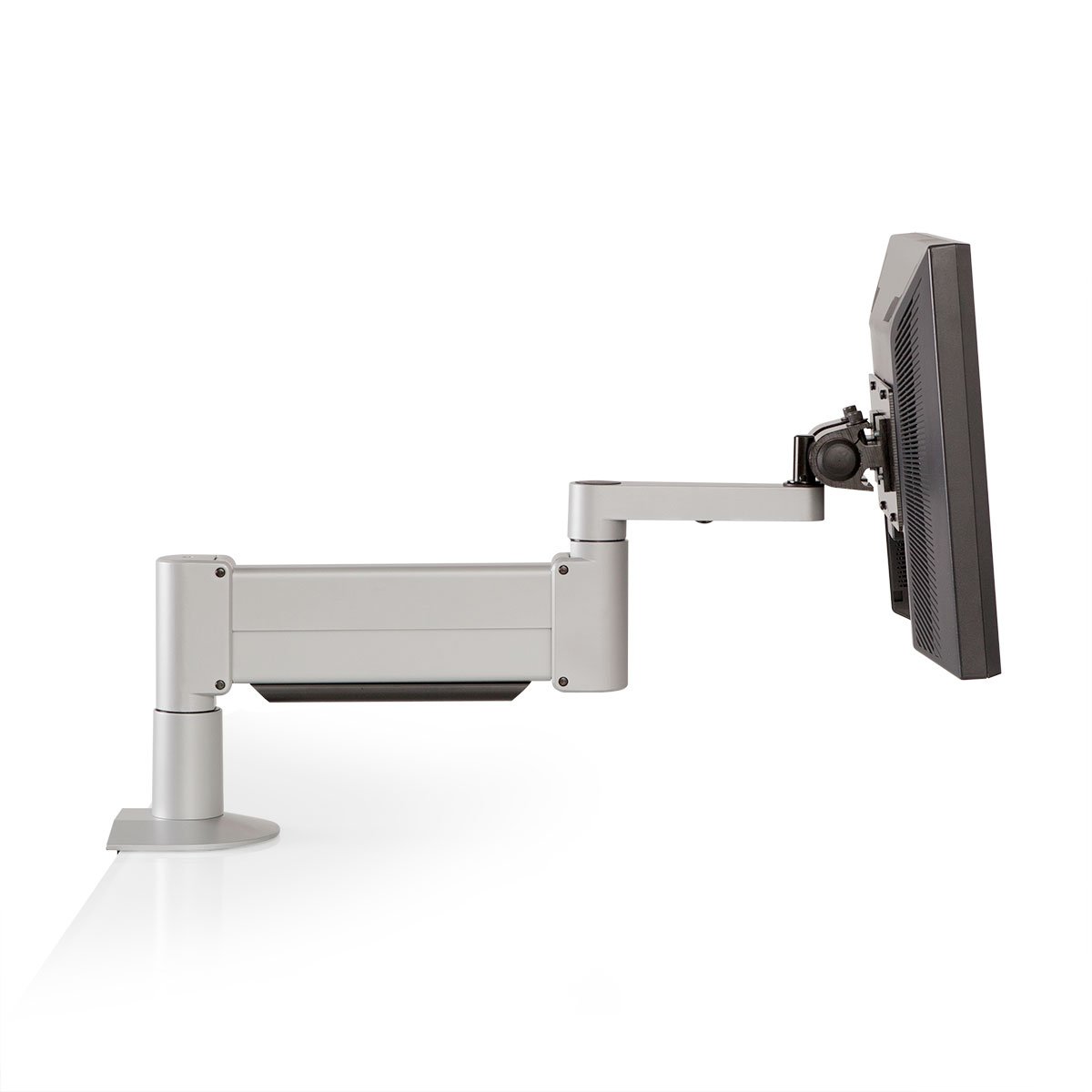

  • Monitor mount offers 15.5" of vertical range and 24" of horizontal range

  • Computer monitors are rendered weightless by the arm

  • The extra strength monitor arm includes special reinforced FLEXmount with desk clamp or through-desk mounting options; call for numerous other monitor mounting options

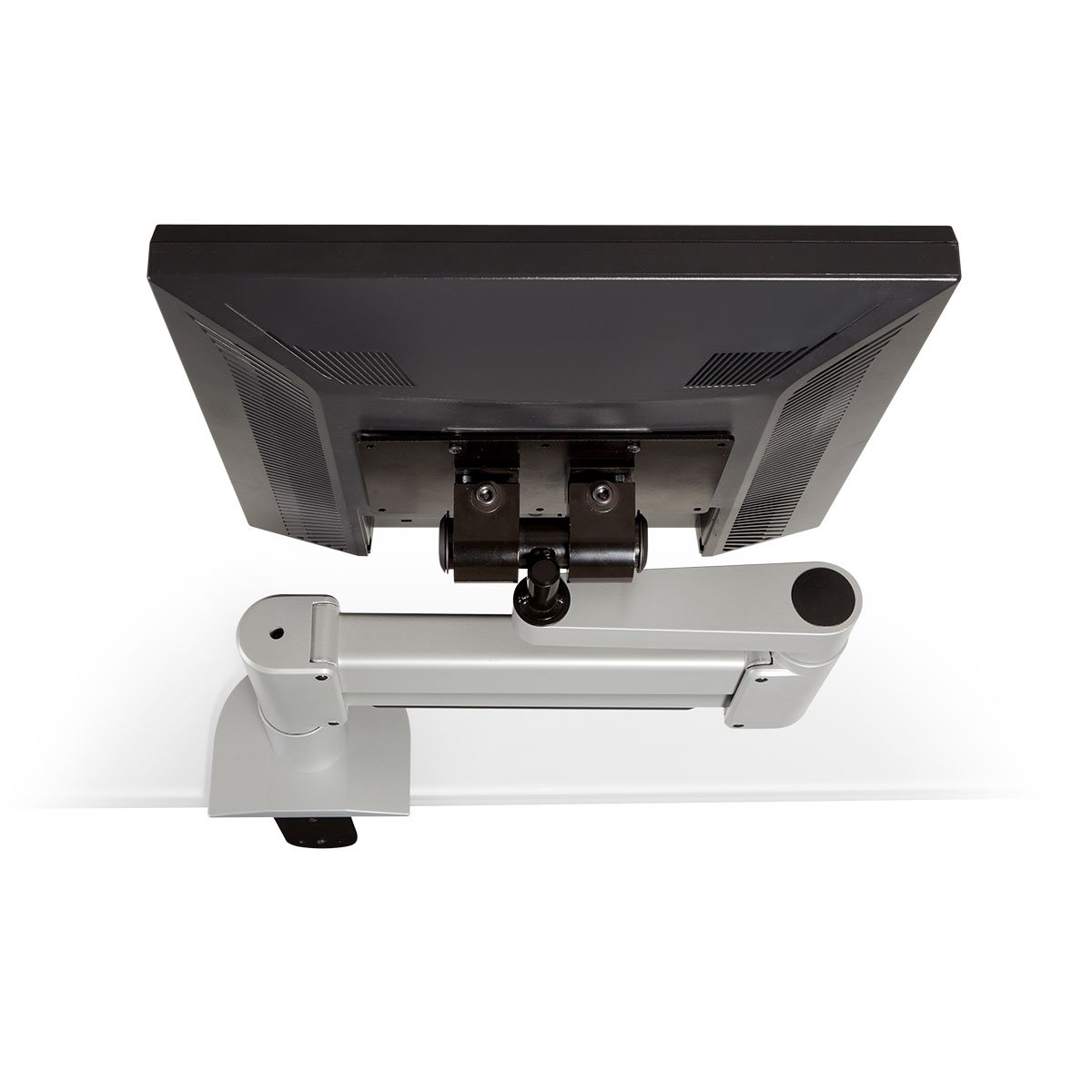

  • Monitor tilter mechanism can tilt over 200 degrees

  • Arm is VESA-monitor compatible - available with one of the following VESA adapters (specify when ordering): 100mm x 200mm, 200mm x 200mm or 200mm x 400mm

Frequently Asked Questions

q Is this arm compatible with a 42" LCD that weighs 59 lbs?

Since the weight and screen size of your LCD make it compatible with the arm, please ensure that the mounting pattern on your LCD is VESA 75mm x 100mm. If you are not sure how to check this, please call us at 888-456-ERGO with your LCD make and model number and we can help you.

Model 9105-XHD
Manufacturer Innovative LCD Arms
Part Number 9105-XHD
Number of Monitors 1 Monitor
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Rotation At three joints 360 degree
Tilt 200 degree
Mounting Pattern VESA 100mm x 200mm, 200mm x 200mm or 200mm x 400mm
Mounting Options Desk
Monitor Weight 35.5 - 69.1 lb (16.1 - 31.3 kg)
Monitor Size Up to 32"
Height Adjustment 15.5"
Extension 24"
Mounting Options Desk Edge, Thru-Desk, Grommet, Side Bolt
Warranty 10 Years
