Ergotron 97-631 StyleView T-Nut Kit
Ergotron 97-631 kit allows customers to attach their own equipment to Ergotron carts that include a t-slot channel.
Up to 20 lbs
|Description||SV T-Nut Kit (aluminum)|
|Weight Capacity||15 lbs (6.8 kg) when used on non-powered carts with no drawers attached; 20 lbs (9.1 kg) when used on powered carts or non-powered carts with drawers|
|Consideration||Should be given to weight of component being mounted relative to its height on cart to avoid tip hazard|
|Shipping Dimensions||4" x 8" mailer (10.2 x 20.3 cm)|
|Shipping Weight||1 lbs (0.5 kg)|
|Warranty||Five (5) years|

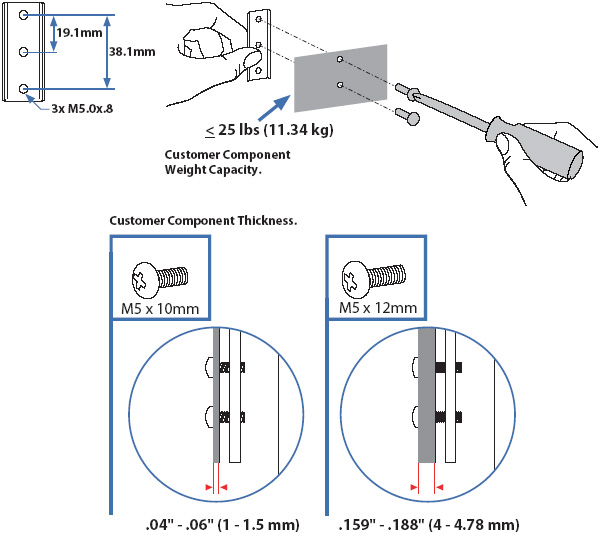

Provides a versatile interface for attaching a wide variety of accessories to the rear of a cart
Height of bracket can be adjusted by loosening set-screws
|Weight Capacity||15 lbs (6.8 kg) when used on SV31, SV40, or SV41 non-powered carts; 20 lbs (9.1 kg) when used on SV32 or SV42 powered carts|
|Shipping Dimensions||4" x 8" mailer (10.2 x 20.3 cm)|
|Shipping Weight||1 lbs (.5 kg)|
|Warranty||Five (5) years|
