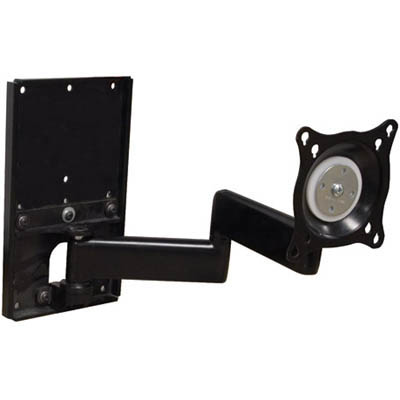

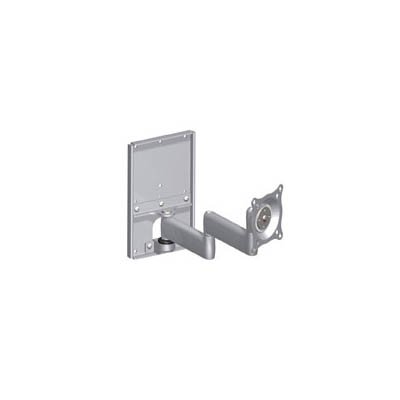

Chief FWDSK110 Steel Stud Swing Arm Wall Mount - 16" Extension

Product ID 16783


Easily installs the chief FWDSK110 Dual Swing Arm Wall Mount to a single steel stud and is great for use in commercial applications.

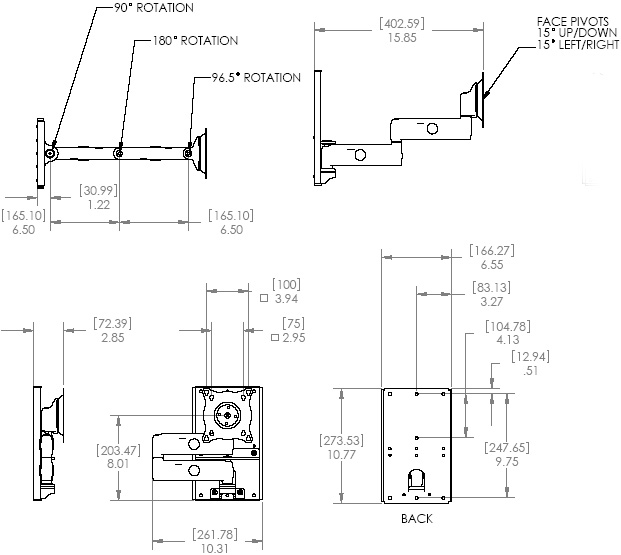

Technical Drawing

Technical Drawing of Chief FWDSK-100 Small Steel Stud Dual Swing Arm Wall Mount





Maximum Extension

15.85" (402.6mm)

Minimum Depth

2.85" (72.4mm)

Mounting Pattern Compatibility (Universal Versions)

75 x 75mm ,100 x 100mm


Landscape, Portrait

Overall Dimensions (H x W x D)

10.8" x 10.3" x 2.9" (274 x 262 x 72mm)

Post-Installation Leveling (Roll)


Shipping Weight

8.75 lbs

Solution Type



+ 15°, - 15°

Typical Screen Sizes

10 - 32"

Wall Stud Compatibility (inches)

Single Metal Stud

Weight Capacity

40 lbs (18.1kg)



  • Mounts a dual swing arm to single steel stud
  • Centris Technology provides smooth, fingertip tilt
  • Independently adjustable tension at pivot points for customized control
  • Extends over 15" (381) to achieve the ideal viewing angle
  • Quick, easy cable management
  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)

Frequently Asked Questions

q What if my display is not listed in the cross-reference chart or MountFinder Pro?

Chief's mounts fit VESA compliant displays with a 75 x 75 mm or 100 x 100 mm hole pattern. If your hole pattern does not match the VESA standard, call Customer Service to determine if Chief has a mount to fit your display.

q What hardware should I use to attach the mount to the steel studs?

The small flat panel swing arm steel stud kits ship complete with three anchors to accommodate your mounting solution.

q How do I know my wall can support this installation?

Chief requires a minimum 25-gauge sheet metal structure that is finished on both sides of the wall with 0.5" (13 mm) thick sheetrock to meet compatibility requirements.

q Can I use this mount with the anchors on a standard drywall installation?

No. Chief only recommends this product with anchors mounted to steel studs as it was tested.

Model FWDSK110
Manufacturer Chief Mounts
Part Number FWDSK110
UPC 841872103808
Color Black
Maximum Extension 15.85" (402.6mm)
Minimum Depth 2.85" (72.4mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 10.8" x 10.3" x 2.9" (274 x 262 x 72mm)
Tilt + 15 degree, - 15 degree
Screen Size 10 - 32 in
Weight Capacity 40 lbs (18.1kg)
Shipping Weight 8.75 lbs
Mounting Options Wall
