Chief MTSAVB or MTSAVS Swivel Bolt Down Table Stand (30-50")

Product ID 16814

Related Products

Part Number

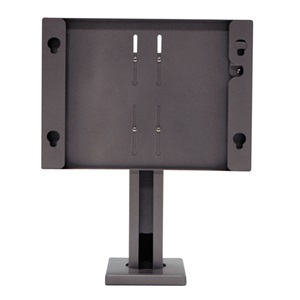

Black Medium Security Bolt-Down Table Stand with A Keyed Locking

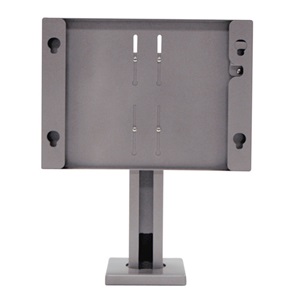

Silver Medium Security Bolt-Down Table Stand with A Keyed Locking



Chief MTS is a bolt-down table stand for flat panel TVs, LCDs and other such displays.

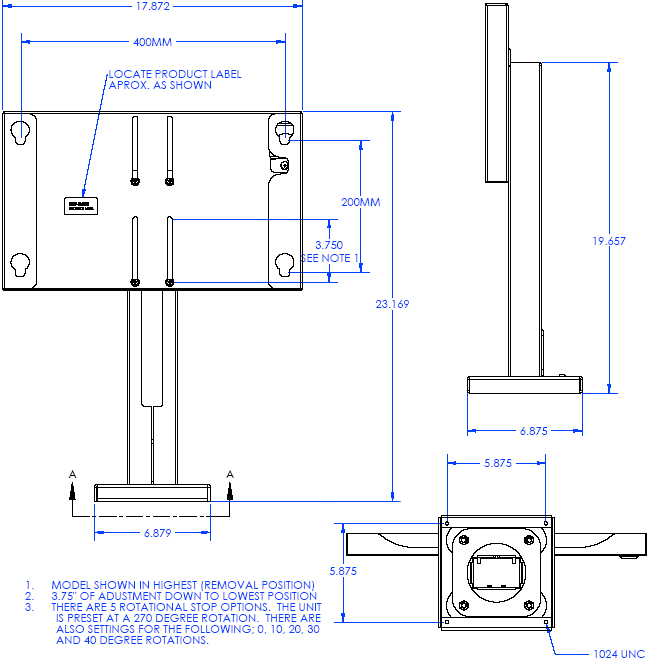

Technical Drawing

Technical Drawing of Chief MTSAVB or MTSAVS Medium Security Bolt Down Table Stand




Black, Silver

Manual Height Adjustment


Mounting Method


Mounting Pattern Compatibility (Universal Versions)

200 x 100mm, 200 x 200mm, 300 x 200mm, 400 x 200mm



Pivot (numerical value)


Shipping Weight

25.50 lbs

Solution Type


Typical Screen Sizes

30 - 50"

Weight Capacity

100 lbs (45.4kg)



  • Keyed locking (available in A option)
  • Bolt-down design for a safe, secure installation
  • No exposed fasteners from top of installation
  • Provides swivel
  • Quick-connect/disconnect for fast installation and service
  • Ideal for hospitality environments

Product Options/Accessories

Manufacturer Chief Mounts
Part Number MTSAV
UPC 841872104379
Color Black, Silver
Manual Height Adjustment 3.75"
Mounting Options Bolt-down
Mounting Pattern 200 x 100mm, 200 x 200mm, 300 x 200mm, 400 x 200mm
Screen Size 30 - 50 in
Weight Capacity 100 lbs (45.4kg)
Shipping Weight 25.50 lbs
