$261.00

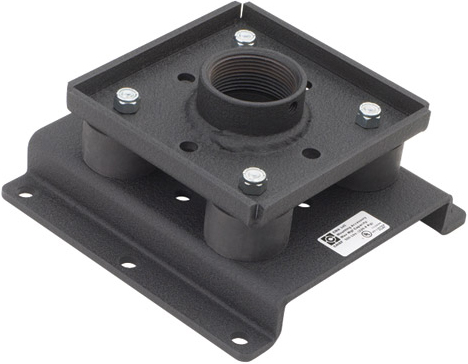

Chief CMA345 Structural Ceiling Plate

Product ID 16863
Chief CMA345 Structural Ceiling Plate
Chief CMA345 Structural Ceiling Plate

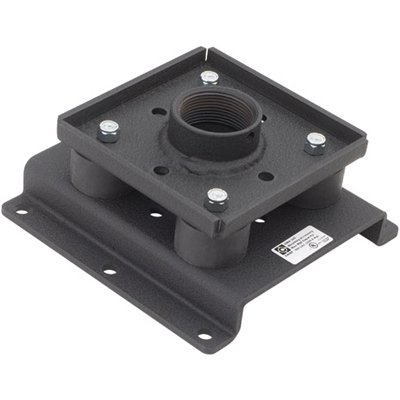

Chief CMA345 Structural Ceiling Plate Black

Description

Chief CMA345 is a ceiling plate that minimizes the transfer of shock and extreme vibration for projector ceiling installations.

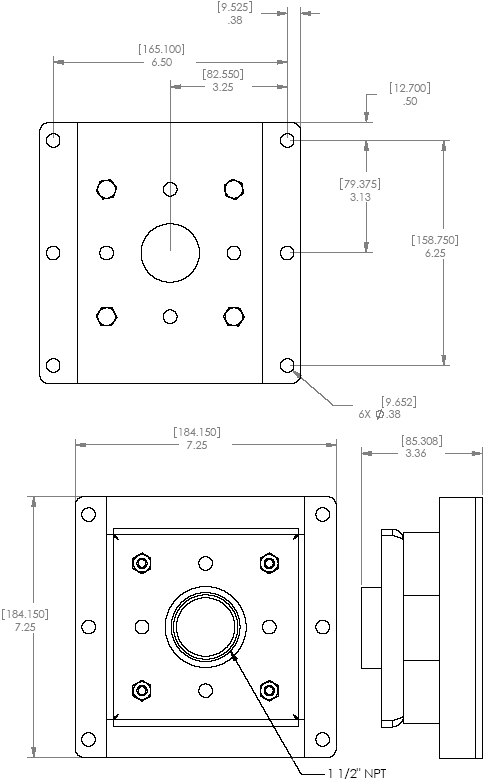

Technical Drawing

Technical Drawing of Chief CMA-345 Structural Ceiling Plate Black



Specifications

Certifications

UL Listed

Color

Black

Overall Dimensions (H x W x D)

3.4" x 7.3" x 7.3" (85 x 184 x 184 mm)

Shipping Weight

7.00 lbs

Weight Capacity

500 lbs (226.8 kg)



Features

  • Flexible neoprene rubber joint minimizes shock and vibration
  • Offset provides cable exit when mounting to a flat surface

Product Options/Accessories

Model CMA345
Manufacturer Chief Mounts
Part Number CMA345
UPC 841872002637
Color Black
Overall Dimensions 3.4" x 7.3" x 7.3" (85 x 184 x 184 mm)
Weight Capacity 500 lbs (226.8 kg)
Shipping Weight 7.00 lbs
