Chief CMA395 or CMA395W Angled Ceiling Plate

Product ID 16864

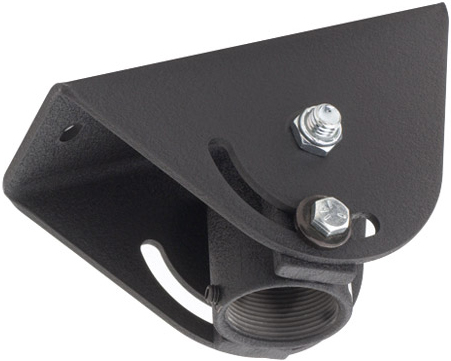

Chief CMA395 or CMA395W Angled Ceiling Plate

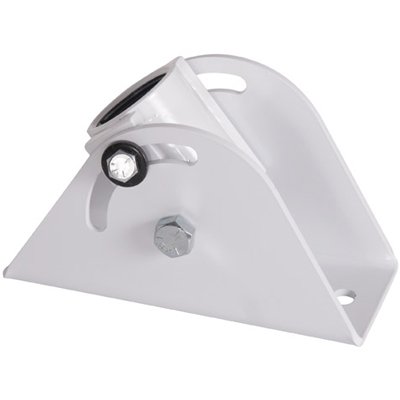

Chief CMA395W Angled Ceiling Plate white

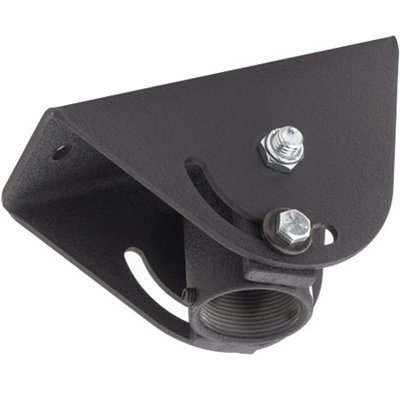

Chief CMA395 or CMA395W Angled Ceiling Plate
Chief CMA395W Angled Ceiling Plate white

Chief CMA395 or CMA395W Angled Ceiling Plate


Chief CMA395 is the perfect for projector installations on an angled ceiling.

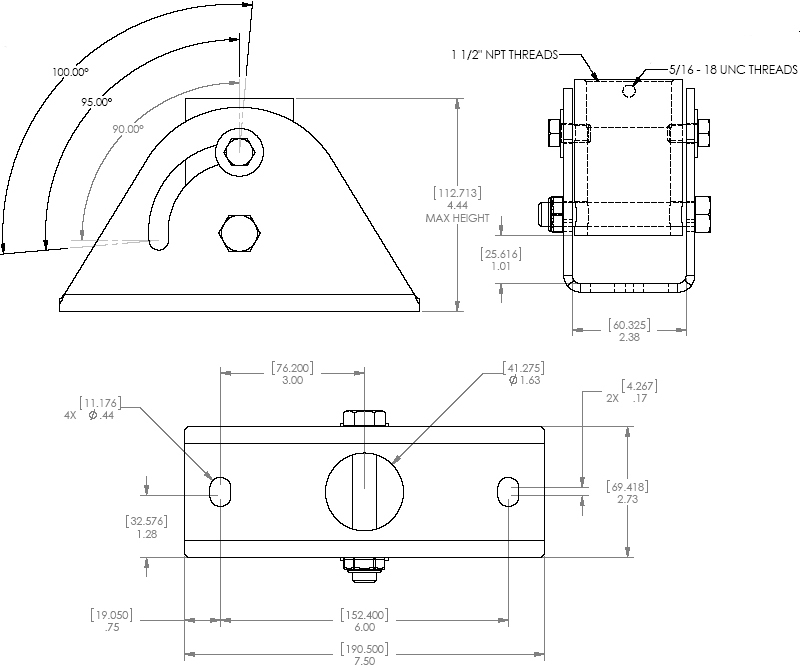

Technical Drawing

Technical Drawing of Chief CMA-395 or CMA395W Angled Ceiling Plate




UL Listed



Overall Dimensions (H x W x D)

4.4" x 3.4" x 7.5" (111 x 86 x 191 mm)

Shipping Weight

6.00 lbs

Weight Capacity

500 lbs (226.8 kg)



  • Adjusts from -5° to +95° to level a mount from an angled ceiling
  • Three slotted mounting holes allow horizontal and vertical adjustment for a precise installation
  • Compatible with 1.5" NPT threaded extension column

Product Options/Accessories

Model CMA395, CMA395W
Manufacturer Chief Mounts
Part Number CMA395, CMA395W
UPC 841872002750
Color Black, White
Overall Dimensions 4.4" x 3.4" x 7.5" (111 x 86 x 191 mm)
Weight Capacity 500 lbs (226.8 kg)
Shipping Weight 6.00 lbs
