$26.50

Chief Speed-Connect Fixed Column 1.5" OD, Various Lengths

Product ID 16876
Chief Speed-Connect Fixed Column 1.5" OD, Various Lengths
Chief CMS006 Speed-Connect 6" Fixed Extension Column 1.5" Outer Diameter Black
Chief CMS012 Speed-Connect 12" Fixed Extension Column 1.5" Outer Diameter Black

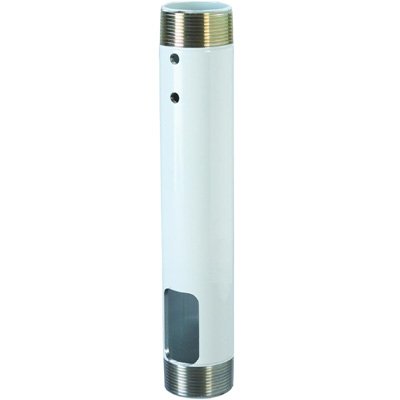

Chief CMS012W Speed-Connect 12" Fixed Extension Column 1.5" Outer Diameter White

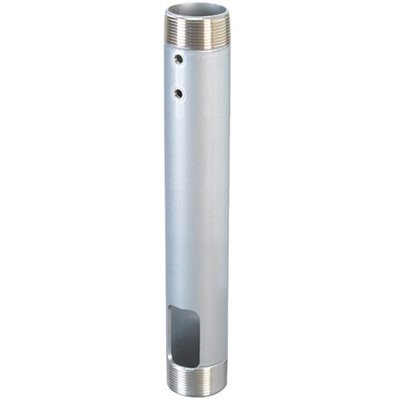

Chief CMS012S Speed-Connect 12" Fixed Extension Column 1.5" Outer Diameter Silver
Chief Speed-Connect Fixed Extension Column 1.5" Outer Diameter Black No Port
Chief Speed-Connect Fixed Column 1.5" OD, Various Lengths
Chief CMS006 Speed-Connect 6" Fixed Extension Column 1.5" Outer Diameter Black
Chief CMS012 Speed-Connect 12" Fixed Extension Column 1.5" Outer Diameter Black
Chief CMS012W Speed-Connect 12" Fixed Extension Column 1.5" Outer Diameter White
Chief CMS012S Speed-Connect 12" Fixed Extension Column 1.5" Outer Diameter Silver
Chief Speed-Connect Fixed Extension Column 1.5" Outer Diameter Black No Port

Description

Focusing on speed of installation, chief CMS Speed-Connect Series of extension columns integrates easy-to-use features aimed at saving installation time and maximizing security.

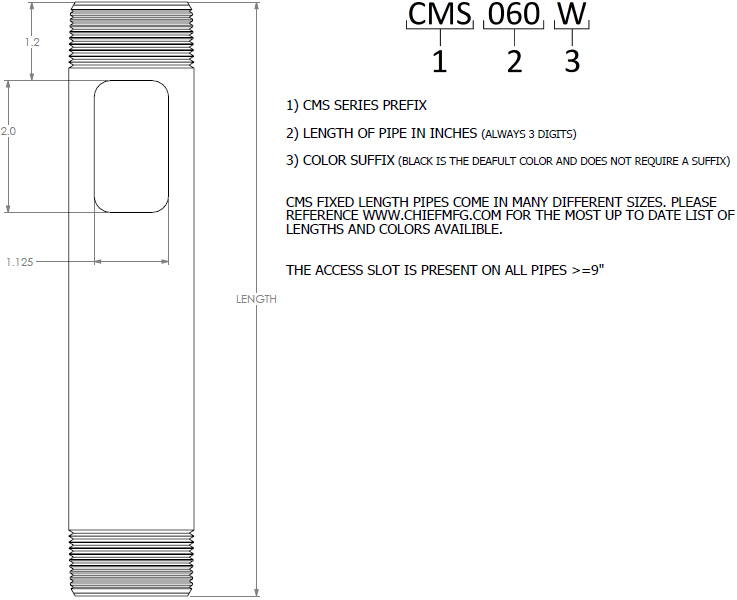

Technical Drawing

Technical drawing for Chief Speed-Connect Fixed Column 1.5" OD, Various Lengths



Specifications

Color

Black

Certifications

TV Certified, UL Listed

Notes

TAA Compliant

Overall Dimensions (H x W x D)

CMS003: 3" x 1.9" x 1.9" (76 x 48 x 48 mm), CMS006: 6" x 1.9" x 1.9" (152 x 48 x 48 mm), CMS009: 9" x 1.9" x 1.9" (229 x 48 x 48 mm), CMS012: 12" x 1.9" x 1.9" (305 x 48 x 48 mm), CMS018: 18" x 1.9" x 1.9" (457 x 48 x 48 mm), CMS024: 24" x 1.9" x 1.9" (610 x 48 x 48 mm), CMS036: 36" x 1.9" x 1.9" (914 x 48 x 48 mm), CMS048: 48" x 1.9" x 1.9" (1219 x 48 x 48 mm), CMS060: 60" x 1.9" x 1.9" (1524 x 48 x 48 mm), CMS072: 72" x 1.9" x 1.9" (1829 x 48 x 48 mm)

Shipping Weight

CMS003/006: 1.00 lbs, CMS009/012: 2.00 lbs, CMS018/024: 3.00 lbs, CMS036: 4.00 lbs, CMS048: 6.00 lbs, CMS060: 7.00 lbs, CMS072: 8.00 lbs

Weight Capacity

500 lbs (226.8 kg)



Features

  • Aluminum extension column features easy installation and maximum strength

  • Flow-through cable management with cable exit port

  • Consists of 1.5" NPT column, threaded on both ends

  • Use in combination with any Chief 1.5" NPT ceiling plate or other accessory

  • TAA Compliant

Model , CMS006, CMS009, CMS012, CMS018, CMS024, CMS036, CMS048, CMS060, CMS072
Manufacturer Chief Mounts
Part Number CMS003, CMS006, CMS009, CMS012, CMS018, CMS024, CMS036, CMS048, CMS060, CMS072
UPC 841872092591
Color Black
Overall Dimensions CMS003: 3" x 1.9" x 1.9", CMS006: 6" x 1.9" x 1.9", CMS009: 9" x 1.9" x 1.9", CMS012: 12" x 1.9" x 1.9", CMS018: 18" x 1.9" x 1.9", CMS024: 24" x 1.9" x 1.9", CMS036: 36" x 1.9" x 1.9", CMS048: 48" x 1.9" x 1.9", CMS060: 60" x 1.9" x 1.9", CMS072: 72" x
Shipping Weight CMS003/006: 1.00 lbs, CMS009/012: 2.00 lbs, CMS018/024: 3.00 lbs, CMS036: 4.00 lbs, CMS048: 6.00 lbs, CMS060: 7.00 lbs, CMS072: 8.00 lbs
Weight Capacity 500 lbs (226.8 kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
