Chief CMA101 or CMA101S or CMA101W Designer Ceiling Plate

1.5 inch outer diameter

Product ID 15707
Chief CMA101 or CMA101S or CMA101W Designer Ceiling Plate
Chief CMA101 or CMA101S or CMA101W Designer Ceiling Plate

Related Products

Part Number



Black 5" (127 mm) Designer Ceiling Plate


Silver 5" (127 mm) Designer Ceiling Plate


White 5" (127 mm) Designer Ceiling Plate


Chief CMA-101 - 5 inch Designer Ceiling Plate


Chief CMA101 is a 5" (127 mm) ceiling plate is a cost effective solution for simple installations.

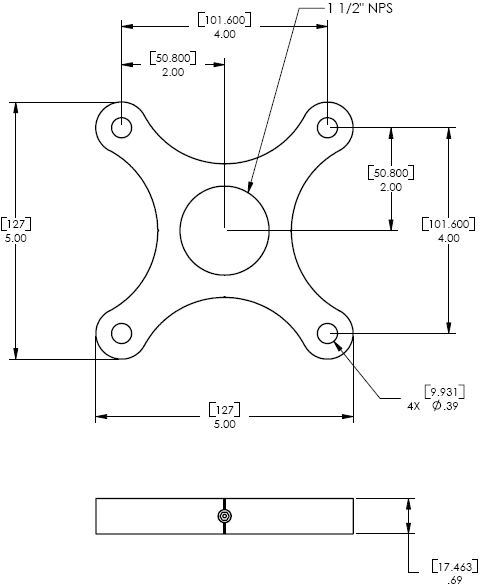

Technical Drawing

Technical Drawing for Chief CMA-101 Designer Ceiling Plate




Black, Silver and White


OSHPD Approved, TV Certified, UL Listed

Overall Dimensions (H x W x D)

0.7" x 5.0" x 5.0" (18 x 127 x 127 mm)

Shipping Weight

CMA101: 0.90 lbs, CMA101S: 2.00 lbs, CMA101W: 1.00 lbs

Weight Capacity

500 lbs (226.8 kg)



  • Attractive solution for basic installations
  • Easy and versatile installation using all 4 holes or 2 opposing holes
  • The 4" x 4" mounting pattern allows use of 0.38" mounting bolts
  • Available in black, silver or white
Model CMA101, CMA101S, CMA101W
Manufacturer Chief Mounts
Part Number CMA101, CMA101S, CMA101W
UPC 841872002484
Weight lb(s)
Color Black, Silver and White
Overall Dimensions 0.7" x 5.0" x 5.0" (18 x 127 x 127 mm)
Shipping Weight 2.00 lbs
Weight Capacity 500 lbs (226.8 kg)
