Chief CMS115 - 6" Speed-Connect Ceiling Plate

Product ID 15711
Chief CMS115 - 6" Speed-Connect Ceiling Plate
Chief CMS115 - 6" Speed-Connect Ceiling Plate

Related Products

Part Number



Black 6" (152 mm) Speed-Connect Ceiling Plate


Silver 6" (152 mm) Speed Connect Ceiling Plate


White 6" (152 mm) Speed Connect Ceiling Plate

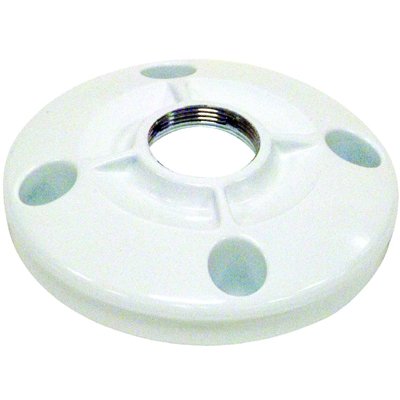

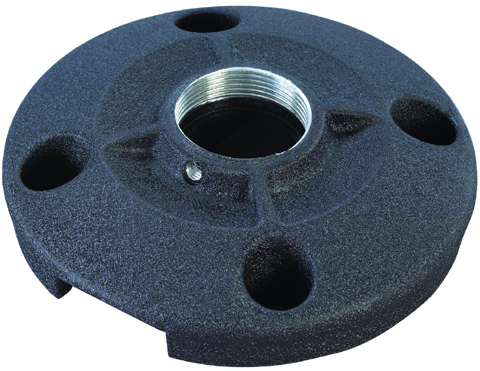

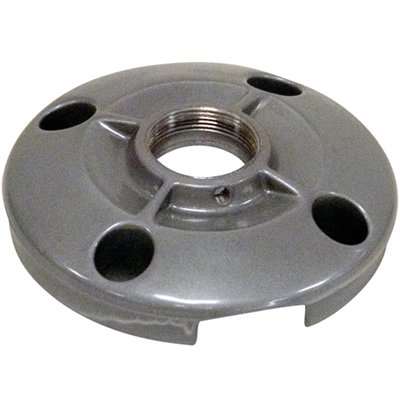

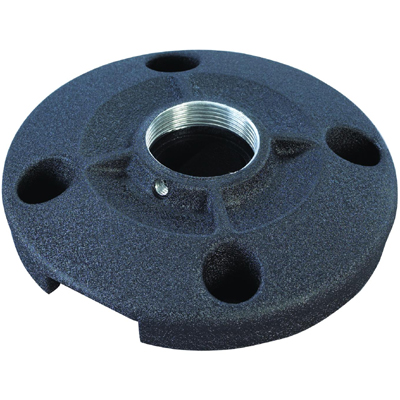

Chief CMS115 or CMS115S Speed Connect 6 inch Ceiling Plate


Focusing on speed of installation, chief CMS115 speed-connect ceiling plate offers a clean look and time-saving cable management.

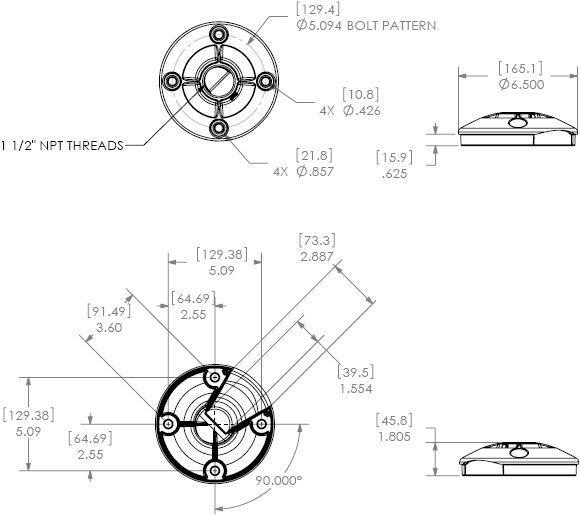

Technical Drawing

Technical Drawing for Chief CMS115 Speed-Connect 6 inch Ceiling Plate




Black, Silver and White


TV Certified, UL Listed

Overall Dimensions (H x W x D)

1.8" x 6.5" x 6.5" (46 x 165 x 165 mm)

Shipping Weight

2.00 lbs

Weight Capacity

500 lbs (226.8 kg)



  • Low-profile, aesthetic design
  • Integrated cable management - allows cables to exit the top of the plate through the cable exit port
  • All-Points Security System exclusive locking hardware at column connection point to protect against theft
  • Aluminum construction for optimal strength in a lightweight design
  • 1.5" NPT compatible
Model CMS115, CMS115S, CMS115W
Manufacturer Chief Mounts
Part Number CMS115, CMS115S, CMS115W
UPC 841872076072
Weight lb(s)
Color Black, Silver and White
Overall Dimensions 1.8" x 6.5" x 6.5" (46 x 165 x 165 mm)
Shipping Weight 2.00 lbs
Weight Capacity 500 lbs (226.8 kg)
