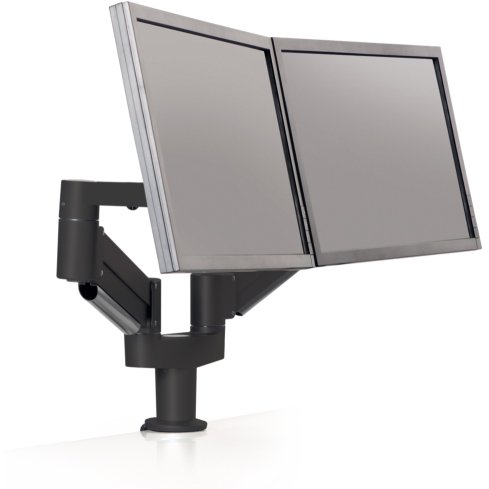

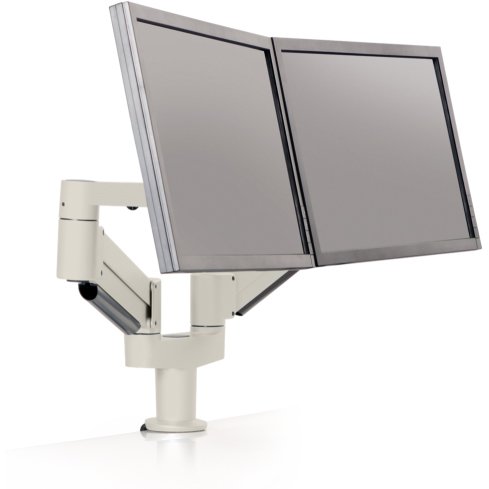

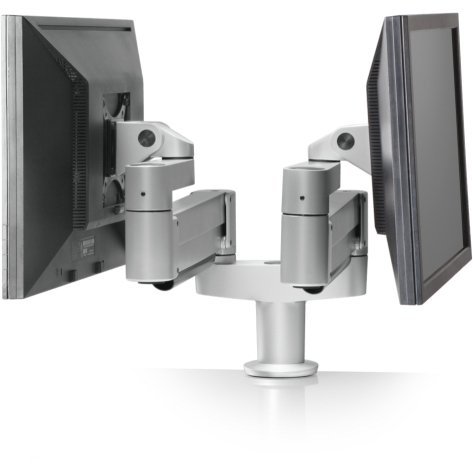

Innovative 7000-8408 Dual 7000 LCD Monitor Arm Mount - 24" Reach
Horizontal Range: 24". Vertical Range: 16" (8" up and down from horizontal).
Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Description
Save space and boost productivity with this convenient two monitor
setup. Innovative 7000-8408 mounts dual 7000 monitor arms at one point
on the desk. Ideal for multi-monitor applications. Our best-selling 7000
monitor arm in a productivity-enhancing dual monitor mount.

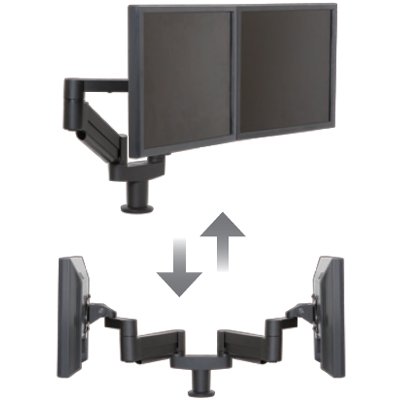

Easily mount two monitors from one point on your desk. The 7000-8408
dual monitor arm allows effortless repositioning of both monitors with
just one hand. This computer monitor arm has a space-saving design and
enables you to work in greater ergonomic comfort.

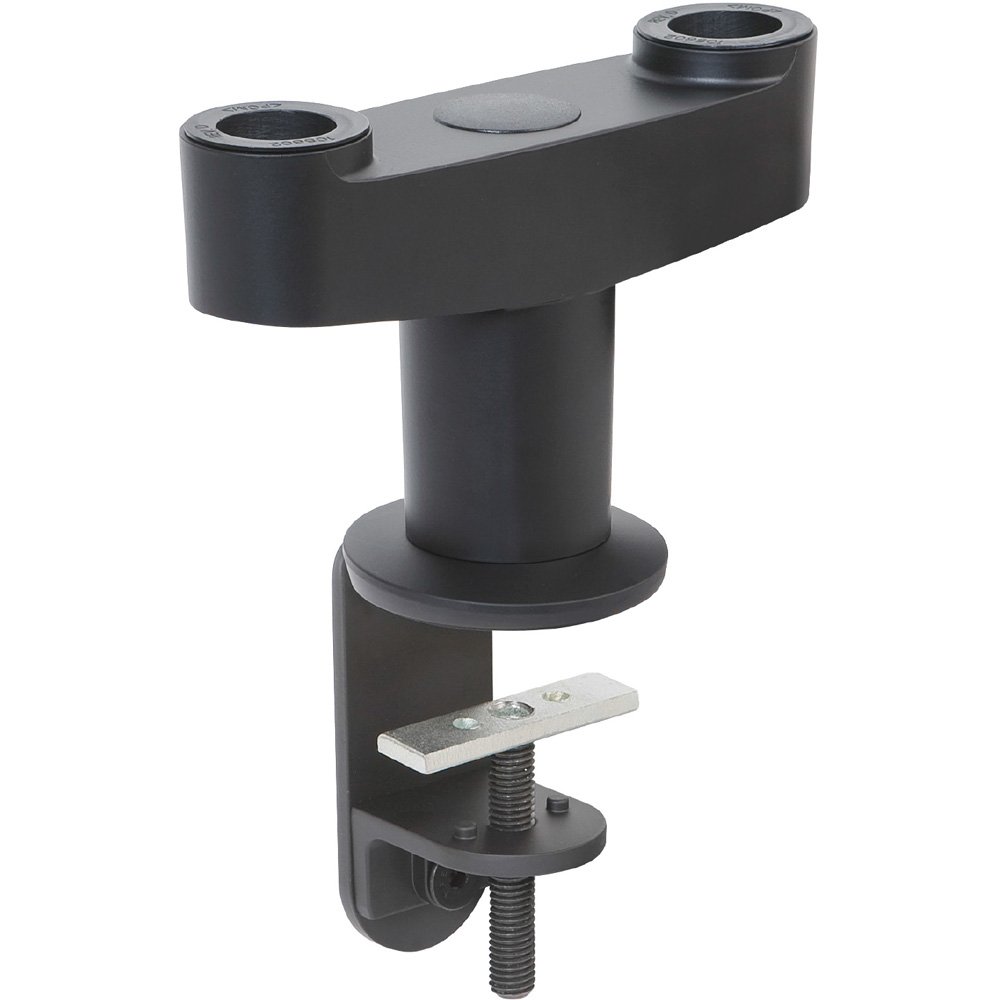

The dual monitor desk mount can be clamped to the desk edge or bolted
through the desk.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.
Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position. This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.
 8500 Quick Release Monitor Tilter |
 8336 Standard Monitor Tilter |
Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.
8524 Top Down Mount
Technical Drawing
Technical Specifications
| Color | 248 - Flat White, 124 - Silver and 104 - Vista Black |
| Screen Size | Up to 32" |
| Height Adjustment | 16" (8" up and down from horizontal) |
| Extension Range | 24" |
| Pivot | Landscape / Portrait |
| Rotation | 360° at three joints |
| Monitor Tilt | 200 degree |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Side Bolt |
| VESA Compatibility | 100mm adapter included |
| Warranty | 10 Years |
| Weight Capacity |
|
Features

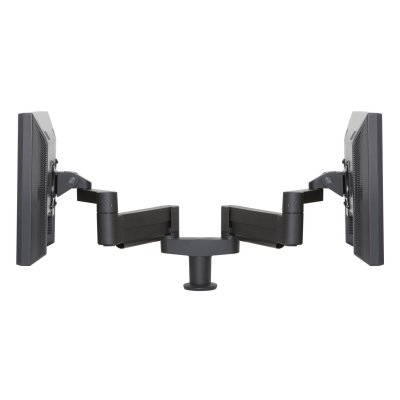

Extremely flexible positioning of dual monitors
Independently move and adjust each monitor arm
Instantly raise and lower each monitor with just one hand

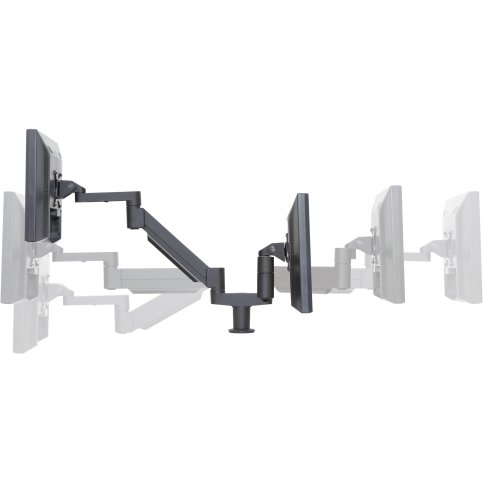

24" horizontal range per monitor arm
16" vertical range per monitor arm (8" up and down from horizontal)
Monitor tilter mechanisms can tilt over 200 degrees
Rotates 360 degrees at three joints for optimal working comfort and flexibility
Landscape/portrait monitor positioning and four mounting options with the Innovative FLEXmount
VESA monitor mount compatible (100mm VESA monitor adapter included)
Product Options/Accessories
| Model | 7000-8408 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 7000-8408 |
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Monitor Size | Up to 32" |
| Tilt | 200 degree |
| Mounting Options | Desk Edge, Thru-Desk, Grommet, Side Bolt |
| Number of Monitors | 2 Monitors |
| Height Adjustment | 16.0" (40.6 cm) |
| Extension | 24" |
| Pivot | Landscape/Portrait |
| Rotation | At three joints 360 degree |
| Mounting Pattern | VESA 75mm and 100mm |
| Warranty | 10 Years |
| Weight Range | 7000-500-8408: 2 - 13 lbs (0.9 - 5.9 kg) per monitor. 7000-800-8408: 7.5 - 25 lbs (3.4 - 11.3 kg) per monitor |
| Maximum Monitor Size | 32" |
| Monitor Placement | Side-by-Side |
