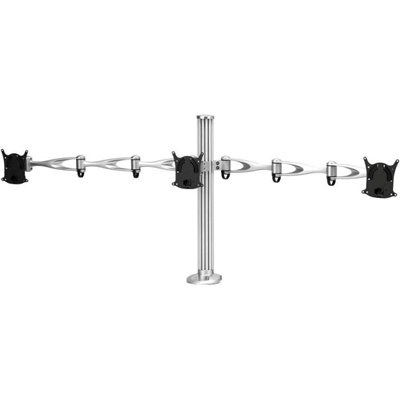

Cotytech DM-T1A3 Triple Monitor Full Swing Stand Desk Mount Arm

Product ID 16903
Cotytech DM-T1A3 Triple Monitor Full Swing Stand Desk Mount Arm

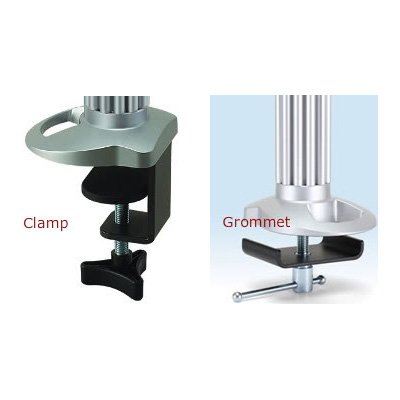

Cotytech DM-T1A3 Triple LCD LED Monitor Arm Desk Mount (Clamp and Grommet)
Cotytech DM-T1A3 Triple Monitor Full Swing Stand Desk Mount Arm
Cotytech DM-T1A3 Triple LCD LED Monitor Arm Desk Mount (Clamp and Grommet)



Description of Cotytech DM-T1A3:



Our state of the art Triple Monitor Full Swing Desk Mount - Triple Arm is a completely full motion LCD monitor mount with weight capacity of 22lbs (10kgs) (for each monitor). The Triple Arms featuring -/+ 30 degree tilt, 360 degree monitor rotation, 360 degree swivel & 29.5 inch full extension (for each monitor). The armless portion is full motion with -/+15 degree tilt, 180 degree monitor rotation and 180 degree swivel. It is ideal for class rooms, offices, public area, industrial settings, production line and many more. This multiple display desk mount renders maneuverability, flexibility and a chic look that is sure to flatter your LCD monitor. The mounting bracket boasts integrated strength through the latest engineering technology, and is tested for durability in our offshore manufacturing plant. The Cotytech triple monitor desk mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of desk mounts. All our monitor mounts offer five year warranty.

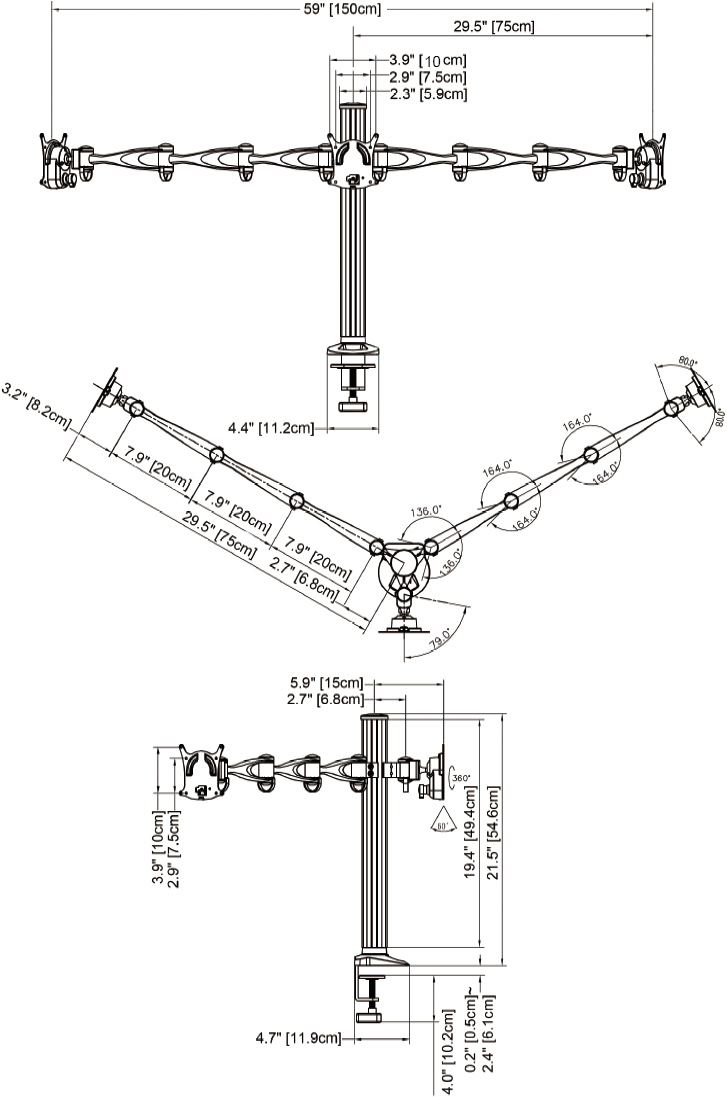

Technical Drawing for Cotytech DM-T1A3 Triple LED Monitor Arm Desk Mount Stand



Technical Drawing for Cotytech DM-T1A3 Triple LED Monitor Stand Desk Mount Arm









Product Specifications:



Weight Capacity:

Supports up to 10 kgs (22 lbs) for each monitor

Tilt:

30°/- 30° (armed) & 15°/- 15°(armless)

Swivel:

Max 360° (armed) & 180°(armless)

Maximum Extension:

29.5" (750 mm) for each monitor mounted on arms

Mounting Pattern:

VESA compliant: 75x75 and 100x100







Model DM-T1A3
Manufacturer Cotytech
Part Number DM-T1A3
Weight Capacity Supports up to 10 kgs (22 lbs) for each monitor
Tilt (armed) 30/-30 degree & (armless) 15/-15 degree
Swivel Max 360° (armed) & 180°(armless)
Maximum Extension 29.5
Mounting Pattern VESA compliant: 75x75 and 100x100
Pole Length 19.69
Clamp Thickness 0.79
Grommet Thickness 0.79
Hole Diameter 0.39
Mounting Options Desk
Number of Monitors 3 Monitors
