Chief CMA165 Internal Joist Ceiling Kit

Product ID 16906
Chief CMA165 Internal Joist Ceiling Kit
Chief CMA165 Internal Joist Ceiling Kit

Chief CMA 165 Internal Joist Junction Box Structural Adapter Silver


Chief's CMA165 Junction Box Adapter makes finished or new construction home projector installations quick and easy.

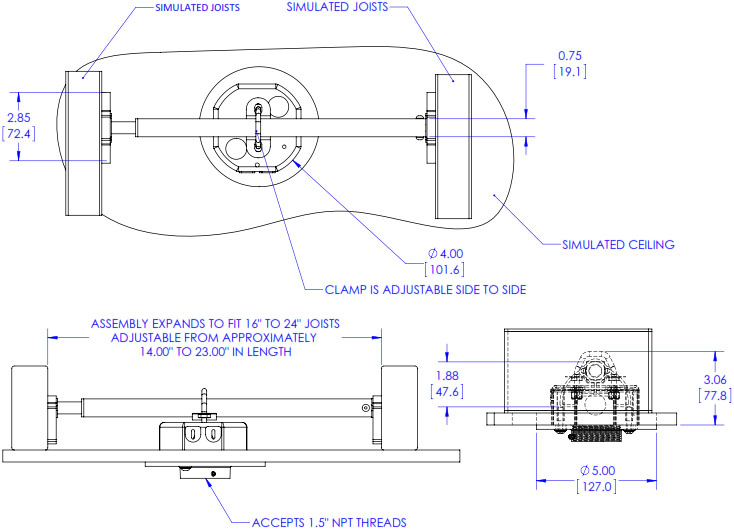

Technical Drawing

Technical Drawing for Chief CMA165 Internal Joist Junction Box Structural Adapter






16.0" - 24"

Overall Dimensions (H x W x D)

6.0" x 5.0" x 24.0" (152 x 127 x 610 mm)

Shipping Weight

4.00 lbs

Weight Capacity

50 lbs (22.7 kg)



  • With just a 4" hole in the ceiling, you can install a projector by suspending it between ceiling joists

  • Includes junction box mounting brace and a 5" round plate that adapts to 1.5" NPT extension columns

  • Installation is similar to that for ceiling fans

  • The ceiling plate mates with a standard fan mounting junction box

  • Expands to fit 16" or 24" joist spacing


Product Options/Accessories

Model CMA165
Manufacturer Chief Mounts
Part Number CMA165
UPC 841872038544
Color Silver
Extension 16.0" - 24"
Overall Dimensions 6.0" x 5.0" x 24.0" (152 x 127 x 610 mm)
Weight Capacity 50 lbs (22.7 kg)
Shipping Weight 4.00 lbs
