Chief CMA385 Internal Joist Structural Adapter Mount

Product ID 16912

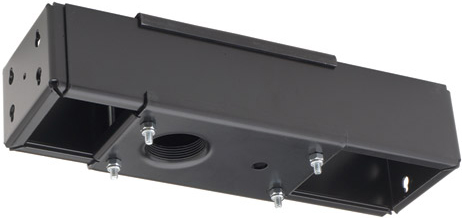

Chief CMA385 Internal Joist Structural Adapter Mount
Chief CMA385 Internal Joist Structural Adapter Mount

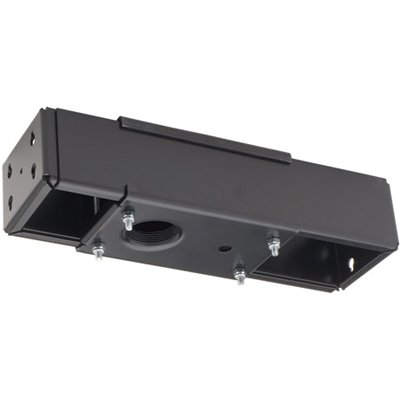

Chief CMA 385 Internal Joist Structural Adapter Mount Black


Chief CMA385 expands to bridge ceiling joists on 16"-23" centers.

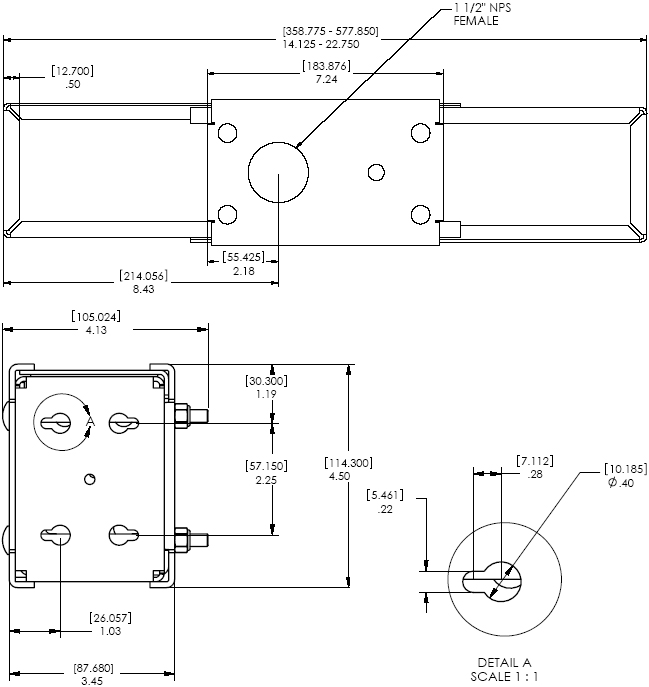

Technical Drawing

Technical Drawing of Chief CMA385 Internal Joist Structural Adapter Mount






14.1" - 22.75"

Overall Dimensions (H x W x D)

4.1" x 4.5" x 22.7" (105 x 114 x 577 mm)

Shipping Weight

10.00 lbs

Weight Capacity

300 lbs (136.1 kg)



  • Adjustable clamping bracket has threaded fitting to accept 1.5" NPT threaded extension column

  • Expands to bridge ceiling joists and transition to vertical extension column Joist Width:16-23" (254-584 mm)


Product Options/Accessories

Model CMA385
Manufacturer Chief Mounts
Part Number CMA385
UPC 841872002729
Color Black
Extension 14.1" - 23"
Overall Dimensions 4.1" x 4.5" x 22.7" (105 x 114 x 577 mm)
Weight Capacity 300 lbs (136.1 kg)
Shipping Weight 10.00 lbs
